한국인텔리젼트시스템

PCI-20041C 고성능 확장 가능 DAQ Board

PCI-20041C 하드웨어 특징

아날로그, 디지털, 카운터 데이터의 고속 전송

Pre- & Post-트리거

DMA, 인터럽트 or 폴링 모드

보드간의 데이터 전송 버스 내장

3개의 옵션 모듈 확장 가능

지원 소프트웨어

MasterLink - DOS, Windows 드라이브 라이브러리

LabVIEW - LabVIEW VI 라이브러리

터미널 패널 옵션

다양한 형태의 터미널 옵션을 연결하여 사용 가능

PCI-20041C 하드웨어

모 델 번 호

비 고

PCI-20041C-2A

Expandable High-Performance Digital I/O Board

PCI-20041C-3A

Expandable High-Performance Digital I/O Board with DMA

Option Modules

PCI-20002M-1

12-bit, Analog Input Module, 25kHz, 16SE/8DIFF 채널

PCI-20003M

Analog Output, 12-bit, 2 채널

PCI-20004M-1

Digital I/O Expander, 32 채널

PCI-20006M-2

Analog Output, 16-bit, 2 채널

PCI-20007M-1A

Counter/Timer Expander, 16-bit, 4 채널

PCI-20020M-1

Analog Trigger/Alarm, 2 채널

PCI-20021M-1B

Analog Output, 12-bit, 8 채널

PCI-20023M-1

12-bit, Analog Input Module, 200kHz, 8SE 채널

PCI-20031M-1

Analog Expander, 32SE/16DIFF 채널

PCI-20341M-1

16-bit, Analog Input Module, 85kHz, 1SE/4DIFF 채널

PCI-20363M-2

Simultaneous Sample/hold Expander, 8 채널

PCI-20364M-1

12-/16-/18-bit Analog Input Module, 16SE/8DIFF 채널

PCI-20368M-1

High-Speed Analog Expander/Sequencer Module, 16SE 채널

PCI-20041C 하드웨어 사양

Parameter

Conditions

Specification

Bus Compatibility

PC/XT/AT and EISA

Digital I/O⁽¹⁾

Number of Ports

8 channels (bits) each

4 (expandable to 16 on-board ports)

Input Levels
  Input Current, High-level
  Input Current, Low-level

TTL compatible
70μA
-0.25mA

Output Levels
  Source Current
  Sink Current

Vout = high
Vout = low

TTL compatible
6mA
24mA

Timebase Generator

Type

Crystal-based

Rate generator

Resolution

125ns

Output Frequency

0.002Hz to 2MHz

Interrupts

Sources

PCI-20041C-2A
PCI-20041C-3A

Up to 5
Up to 6

PC Levels

Latched

2 through 7

Expansion Capabilities

Supports up to three PCI-20000 Series I/O option modules on one board.

System Throughput⁽²⁾

Digital I/O

400bytes/second

Physical Characteristics

Power Requirements
+5V

PCI-20041C-2A(no option modules installed)
PCI-20041C-3A(no option modules installed)

1.7A

2.5A

Power Available to Modules

  +15V
  -15V

150mA maximum
150mA maximum

Size⁽³⁾

Length x Height

13.1" x 4.2" (33.3cm x 10.7cm)

Operating Temperature Range

0 to 70°C

Notes: (1) All digital I/O ports are programmable as either inputs or outputs in byte-size groups (8 channels each). (2) Hardware limit only. Software may reduce speed. (3) The width of a PCI-20041C Series board depends upon the I/O board configuration. With no modules, one slot is required. With three modules, two slots are required.

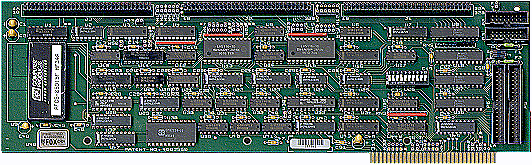

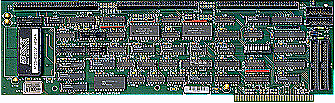

PCI-20041C 하드웨어 사진

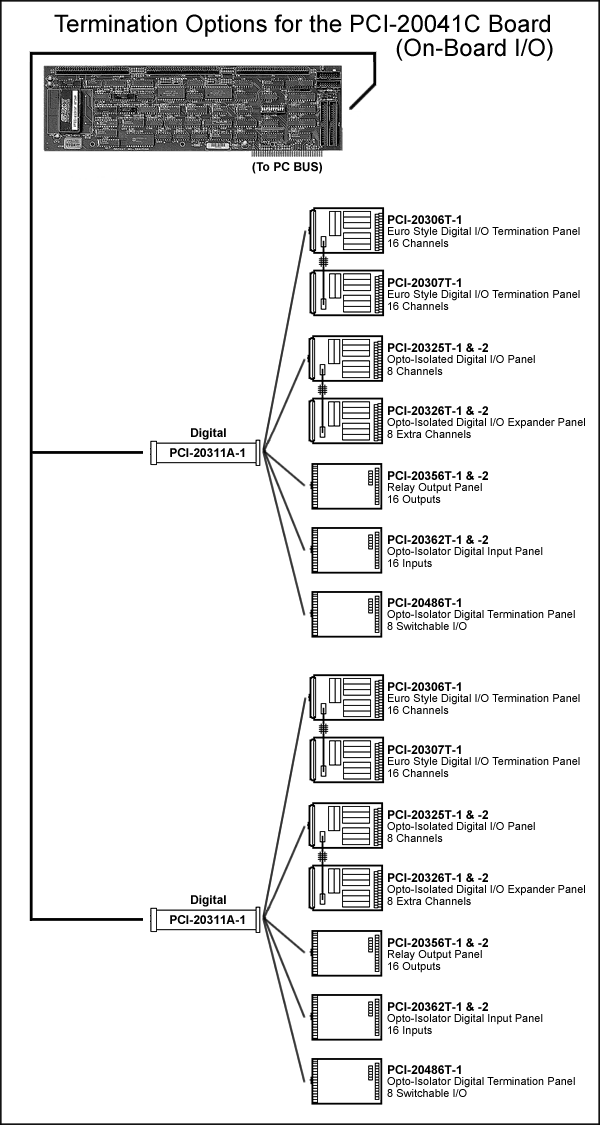

PCI-20041C 터미널 보드 연결도

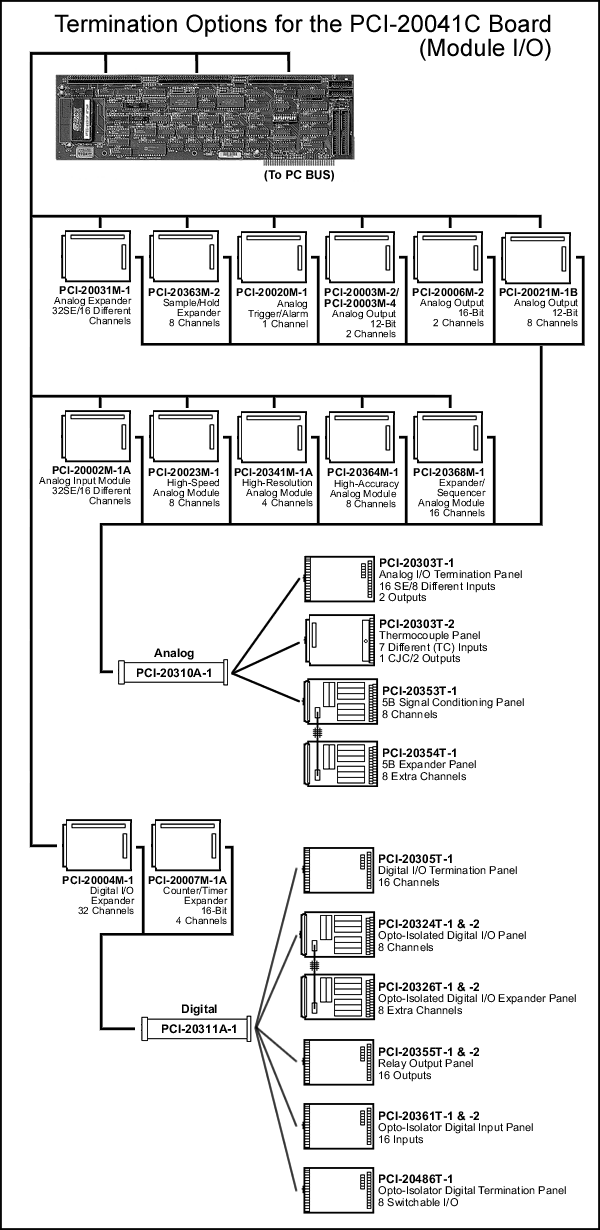

PCI-20041C Option 모듈 I/O 터미널 보드 연결도

한국인텔리젼트시스템(Korea Intelligent System) 전화 : 02-3272-9301 Email : sales@intelligent.co.kr
