PCI-20363M-2 Sample/Holder Module





PCI-20363M-2 옵션 모듈 특징

square02_darkbluegreen.gif Simultaneous Sample/Holder 옵션 모듈

square02_darkbluegreen.gif 모듈당 8 채널

square02_darkbluegreen.gif 소프트웨어 프로그램머블

square02_darkbluegreen.gif 5nsec Channel-to-Channel Skew

square02_darkbluegreen.gif 180kHz, DMA 지원

 터미널 패널 옵션

다양한 형태의 터미널 옵션을 연결하여 사용 가능

PCI-20363M 모듈



모 델 번 호

비       고

PCI-20363M-2

8 채널, Simultaneous Sample/Hold Module

Signal Conditioning & Termination Panel

PCI-20303T-1

Euro-Style(3U), 16SE/8DIFF 채널, Analog Termination Panel

PCI-20303T-2

Euro-Style(3U), Thermocouple, 7DIFF 채널, Analog Termination Panel

PCI-20353T-1

Euro-Style(3U), 8 채널, Analog Termination Panel for 5B Signal Conditioner

PCI-20354T-1

Euro-Style(3U), 8 채널 확장용, Analog Termination Panel for 5B Signal Conditioner



PCI-20363M-2 하드웨어 사양

Parameter

Conditions

Specification

Analog Input

Number of Channels

Single-ended

8

Voltage Ranges



±10V (dc + peak ac)

Overvoltage Protection



Power on

Power off

±12V

±10V

Gain Accuracy

Gain = 1

±0.02%

Offset Voltage

RTO

±2.44mV

Bias Current



±40nA

Input Impedance



10M ohms/12pF

Linearity Error



0.012%, 0.5LSB

Skew Time

Channel-to-channel

5ns

Acquisition Time

To 0.01%

3.2ms

Aperture Delay

To 0.01%

30ns

Aperture Uncertainty



5ns

Droop Rate



5mV/ms

Hold Step



10mV

System Throughput(1)



8 simultaneous channels on PCI-20501C-1; ±2LSB;
F= N/(N-1)T1+T2)
(2)

385K channels/second


Physical Characteristics

Power Requirements (3)

  +5V

  +15V

  -15V











500mA

40mA

50mA

Operating Temperature Range



0 to +70°C

Notes: (1) Hardware limit only. Software may reduce speed. (2) N = Number of Channels; T1 = 2.5msec or A/D convert time, whichever is greater; T2 = 3.2msec (3) Refer to the data sheet of the host board to determine available power.

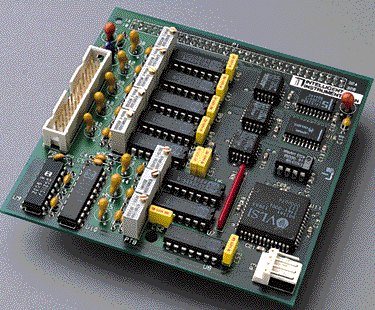

PCI-20363M-2 하드웨어 사진

PCI-20363M 하드웨어
