PCI-20004M-1 Digital I/O Module





PCI-20004M-1 옵션 모듈 특징

square02_darkbluegreen.gif 32 채널 디지털 I/O

square02_darkbluegreen.gif TTL Levels

square02_darkbluegreen.gif Buffered 출력

터미널 패널 옵션

다양한 형태의 터미널 옵션을 연결하여 사용 가능

PCI-20004M 모듈



모 델 번 호

비       고

PCI-20004M-1

32 채널, Digital I/O Module

Opto-Isolator & Termination Panel

PCI-20305T-1

Euro-Style(3U), 16 채널, Digital Termination Panel

PCI-20324T-1/2

Euro-Style(3U), 8 채널, Digital Termination Panel  for Opto-Isolator

PCI-20326T-1/2

Euro-Style(3U), 8 채널, Digital Expander Termination Panel for Opto-Isolator

PCI-20361T-1/2

Euro-Style(3U), Digital Opto-Isolated Input Termination Panel



PCI-20004M-1 하드웨어 사양

Parameter

Conditions

Specification

Digital I/O(1)

Number of ports

8 channels (bits) each

4

Input Levels



TTL compatible

Output Levels

  Source Current

  Sink Current



Vout = high

Vout = low

TTL compatible

15mA

24mA

System Throughput(2)

Digital I/O



400Kbytes/second

Physical Characteristics

Power Requirements(3)

  +5V



350mA maximum

Operating Temperature Range



0℃ to +70°C

Notes:(1) All digital I/O points are programmable as either inputs or outputs in byte-size groups (8 channels each). (2) Hardware limit only. Software may reduce speed. (3) Refer to the data sheet for the host board to determine available power.

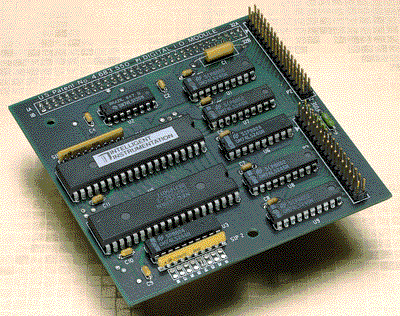

PCI-20004M-1 하드웨어 사진

PCI-20004M 하드웨어
