PCI-20006M-2 Analog Output Module

PCI-20006M-2 옵션 모듈 특징

16-bit, Dual 채널 출력

0.003% Linearity 에러

다양한 형태의 터미널 옵션을 연결하여 사용 가능

PCI-20006M 모듈

모 델 번 호

비 고

PCI-20006M-2

16-bit, 2 채널, Analog Output Module

Signal Conditioning & Termination Panel

PCI-20303T-1

Euro-Style(3U), 16SE/8DIFF 채널, Analog Termination Panel

PCI-20353T-1

Euro-Style(3U), 8 채널, Analog Termination Panel for 5B Signal Conditioner

PCI-20006M-2 하드웨어 사양

Parameter

Conditions

Specification

Analog Output

Number of Channels

2

Resolution

16 bits (1 part in 65,536)

Voltage Ranges⁽¹⁾

±5V, ±10V, 0 to 10V full scale

Accuracy

Gain

±1LSB

Linearity Error

Voltage output, maximum

±0.002% FSR

Offset Voltage

0 to +50°C

±1LSB

Monotonicity

0 to +70°C

14 bits

Output Stage

Output Current

±5mA

System Throughput⁽²⁾

Analog Output

125K outputs/second

Physical Characteristics

Power Requirements⁽³⁾
  +5V
  +15V
  -15V

240mA maximum
20mA maximum
60mA maximum

Operating Temperature Range

0℃ to +70°C

Notes: (1) When the system is first powered up, the outputs of this module are NOT in determined states until initialized by software. The analog outputs could be any value consistent with the hardware jumpers installed. (2) Hardware limit only. Software may reduce speed. (3) Refer to the data sheet for the host board to determine available power.

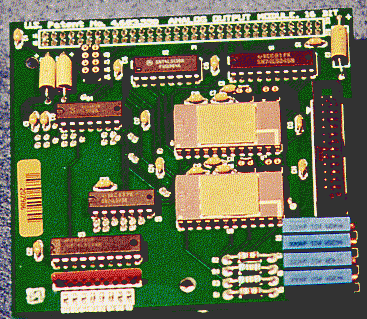

PCI-20006M-2 하드웨어 사진

PCI-20006M 하드웨어
