PCI-20020M-1 Trigger/Alarm Module





PCI-20020M-1 ¿É¼Ç ¸ðµâ Ư¡

square02_darkbluegreen.gif Ensures Reliable Triggering

square02_darkbluegreen.gif High, Low, Window ºñ±³ Æ®¸®°Å

square02_darkbluegreen.gif Programmable Thresholds

square02_darkbluegreen.gif ÃÖ´ë 3.5¥ìsec Response Time

Å͹̳ΠÆÐ³Î ¿É¼Ç

´Ù¾çÇÑ ÇüÅÂÀÇ Å͹̳Π¿É¼ÇÀ» ¿¬°áÇÏ¿© »ç¿ë °¡´É

 PCI-20020M ¸ðµâ



¸ð µ¨ ¹ø È£

ºñ       °í

PCI-20020M-1

1 ä³Î Trigger/Alarm Module

Signal Conditioning & Termination Panel

PCI-20303T-1

Euro-Style(3U), 16SE/8DIFF ä³Î, Analog Termination Panel

PCI-20353T-1

Euro-Style(3U), 5B, 8 ä³Î, Analog Termination Panel



PCI-20020M-1 Çϵå¿þ¾î »ç¾ç

Parameter

Conditions

Specification

Trigger Inputs

Number of Channels



Level compare

Window compare

2

1

Sync output(1)



Follow/latched, gated sync in

Comparators

Number



2

Input Range

Linear

±10V

Overvoltage Protection

Power On

±15V

Offset Voltage

Maximum

±7.5V

Bias Current



300nA

Hystersesis



25mV

References

Number

D/A converters

2

Resolution



8 bits

Step Size

Minimum increment

78.1mV

Range



-10V to 9.92V

Linearity



±1/2LSB

Response Time

Input to sync output, maximum

3.5ms

Physical Characteristics

Power Requirements(2)

  +5V

  +15V

  -15V











265mA maximum

35mA maximum

25mA maximum

Operating Temperature Range



0 to +70°C

Notes: (1) When the system is first powered up, the outputs of this module are NOT in determined states until initialized by software. Therefore the analog outputs could be any value between ?10V, and the digital outputs could be either "high" or "low". (2) Refer to the data sheet for the host board to determine available power.

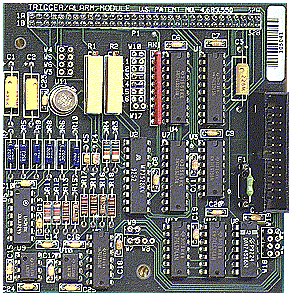

PCI-20020M-1 Çϵå¿þ¾î »çÁø

PCI-20020M Çϵå¿þ¾î
