PCI-20021M-1B Analog Output Module





PCI-20021M-1B ¿É¼Ç ¸ðµâ Ư¡

square02_darkbluegreen.gif 12-bit 8 ä³Î Ãâ·Â

square02_darkbluegreen.gif 1/2LSB LinearityHigh, Low, Window ºñ±³ Æ®¸®°Å

square02_darkbluegreen.gif ÃÖ´ë 500¥ìs Settling Time

Å͹̳ΠÆÐ³Î ¿É¼Ç

´Ù¾çÇÑ ÇüÅÂÀÇ Å͹̳Π¿É¼ÇÀ» ¿¬°áÇÏ¿© »ç¿ë °¡´É

PCI-20021M ¸ðµâ



¸ð µ¨ ¹ø È£

ºñ       °í

PCI-20021M-1B

8 ä³Î Analog Output Module

Signal Conditioning & Termination Panel

PCI-20303T-1

Euro-Style(3U), 16SE/8DIFF ä³Î, Analog Termination Panel

PCI-20353T-1

Euro-Style(3U), 8 ä³Î, Analog Termination Panel for 5B Signal Conditioner



PCI-20021M-1B Çϵå¿þ¾î »ç¾ç

Parameter

Conditions

Specification

Analog Output

Number of Channels



8

Resolution



12 bits (1 part in 4,096)

Voltage Ranges



±5V, ±10V

Accuracy

Gain



±1/2 LSB

Linearity Error



±1/2 LSB

Offset Voltage

0 to +50°C

±2mV

Noise

DC to 10kHz, maximum

±1 LSB

Monotonicity

0 to +70°C

12 bits

Output Stage

Output Current



±1mA

System Throughput(1)

Analog Output



2,000 outputs/second

Physical Characteristics

Power Requirements(2)

  +5V

  +15V

  -15V











569mA maximum

43mA maximum

50mA maximum

Operating Temperature Range



0 to +70°C

Notes: (1) Hardware limit only. Software may reduce speed. (2) Refer to the data sheet for the host board to determine available power.

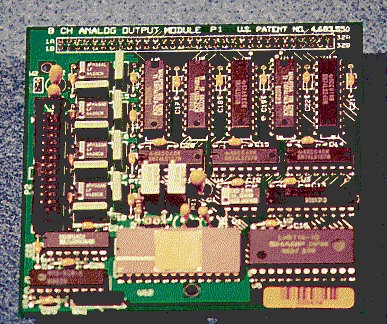

PCI-20021M-1B Çϵå¿þ¾î »çÁø
