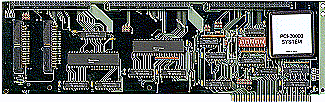

PCI-20001C-2A 확장 가능 DAQ Board

PCI-20001C-2A 하드웨어 특징

32 채널 디지털 I/O 내장(소프트웨어에서 8채널 단위로 I/O 설정 가능)

옵션 모듈을 이용한 추가 기능 확장

3개의 옵션 모듈 확장 가능

지원 소프트웨어

MasterLink - DOS, Windows 드라이브 라이브러리

LabVIEW - LabVIEW VI 라이브러리

터미널 패널 옵션

다양한 형태의 터미널 옵션을 연결하여 사용 가능

PCI-20001C 하드웨어

모 델 번 호	비 고
PCI-20001C-2A	Expandable Digital I/O Board(32 채널, TTL)
Option Modules
PCI-20002M-1	12-bit, Analog Input Module, 25kHz, 16SE/8DIFF 채널
PCI-20003M	Analog Output, 12-bit, 2 채널
PCI-20004M-1	Digital I/O Expander, 32 채널
PCI-20006M-2	Analog Output, 16-bit, 2 채널
PCI-20007M-1A	Counter/Timer Expander, 16-bit, 4 채널
PCI-20020M-1	Analog Trigger/Alarm, 2 채널
PCI-20021M-1B	Analog Output, 12-bit, 8 채널
PCI-20023M-1	12-bit, Analog Input Module, 200kHz, 8SE 채널
PCI-20031M-1	Analog Expander, 32SE/16DIFF 채널
PCI-20341M-1	16-bit, Analog Input Module, 85kHz, 1SE/4DIFF 채널
PCI-20363M-2	Simultaneous Sample/hold Expander, 8 채널
PCI-20364M-1	12-/16-/18-bit Analog Input Module, 16SE/8DIFF 채널

PCI-20001C-2A 하드웨어 사양

Parameter

Conditions

Specification

Bus Compatibility

PC/XT/AT and EISA

Digital I/O

Number of Ports

8 channels (bits) each

4 (expandable to 16 on-board ports)

Input Levels

TTL compatible

Output Levels⁽¹⁾

TTL compatible

  Source Current

Vout = high

15mA

  Sink Current

Vout = low

24mA

Interrupts

Sources

Up to 3

PC Levels

2 through 7

Expansion Capabilities

Supports up to three PCI-20000 Series I/O option modules on one board.

System Throughput⁽²⁾

Digital I/O

400bytes/second

Physical Characteristics

Power Requirements

  +5V

With no option modules installed

560mA

  Power Available to Modules

  +15V

150mA maximum

  -15V

150mA maximum

Size⁽³⁾

Length x Height

13.1" x 4.2" (33.3cm x 10.7cm)

Operating Temperature Range

0℃ to 70°C

Notes: (1) All digital I/O points are programmable as either inputs or outputs in byte-size groups (8 channels each). (2) Hardware limit only. Software may reduce speed. (3) The width of an installed PCI-20001C-2 depends upon the I/O option modules installed. With no modules, one slot is required; with three modules two slots are required.

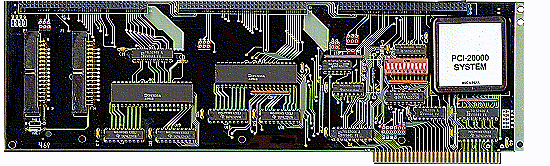

PCI-20001C-2A 하드웨어 사진

PCI-20001C 하드웨어

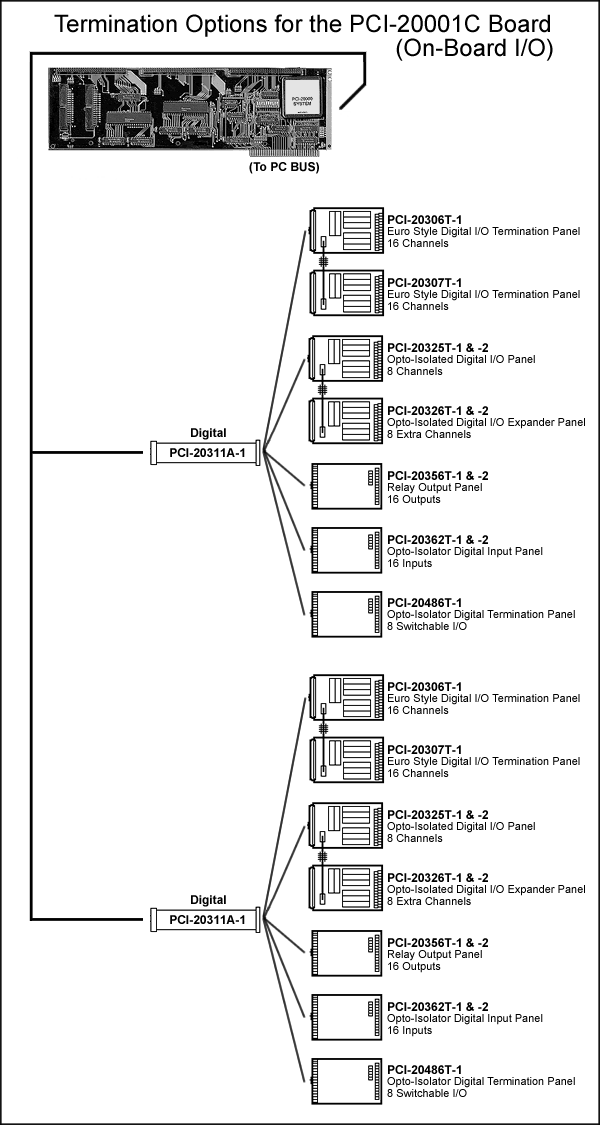

PCI-20001C-2A 기본 I/O 터미널 보드 연결도

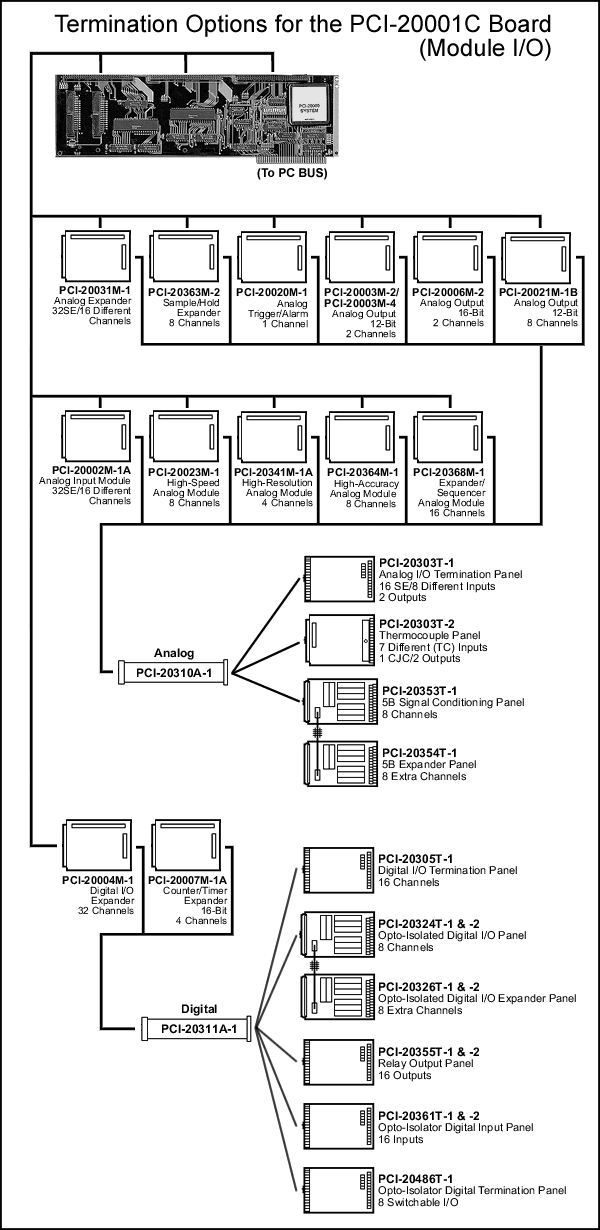

PCI-20001C-2A Option 모듈 I/O 터미널 보드 연결도
