PCI-20098C È®Àå °¡´É DAQ Board



PCI-20098C Çϵå¿þ¾î Ư¡

square02_darkbluegreen.gif 45kHz, 100kHz ¾Æ³¯·Î±× µ¥ÀÌÅÍ Ãëµæ

square02_darkbluegreen.gif 12-bit 16SE/8DIFF ä³Î ¾Æ³¯·Î±× ÀÔ·Â
   (º¸µå¿¡¼­ 80SE/40DIFF ä³Î±îÁö È®Àå °¡´É)

square02_darkbluegreen.gif 16 ä³Î µðÁöÅÐ I/O(º¸µå¿¡¼­ 80 ä³Î±îÁö È®Àå °¡´É)

square02_darkbluegreen.gif 2 16-bit Ä«¿îÅÍ(º¸µå¿¡¼­ 10 ä³Î±îÁö È®Àå °¡´É)

square02_darkbluegreen.gif DMA ÀÎÅÍ·´Æ® & Æú¸µ ¸ðµå

square02_darkbluegreen.gif Pre- & Post-Æ®¸®°Å

square02_darkbluegreen.gif Burst-Mode »ùÇÃ

square02_darkbluegreen.gif Random ä³Î/°ÔÀÎ ¼³Á¤ °¡´É

Áö¿ø ¼ÒÇÁÆ®¿þ¾î

square02_darkbluegreen.gif MasterLink - DOS, Windows µå¶óÀÌºê ¶óÀ̺귯¸®

square02_darkbluegreen.gif LabVIEW - LabVIEW VI ¶óÀ̺귯¸®

Å͹̳ΠÆÐ³Î ¿É¼Ç

´Ù¾çÇÑ ÇüÅÂÀÇ Å͹̳Π¿É¼ÇÀ» ¿¬°áÇÏ¿© »ç¿ë °¡´É

 PCI-20098C Çϵå¿þ¾î



¸ð µ¨ ¹ø È£

ºñ       °í

PCI-20098C-1F

Expandable I/O Board, 45kHz

PCI-20098C-2F

Expandable I/O Board, 100kHz

Kits

PCI-20098K-1

Expandable I/O Board, 45kHz, w/Termination Panels & Cables

PCI-20098K-2

Expandable I/O Board, 100kHz, w/Termination Panels & Cables

Option Modules

PCI-20003M-2

Analog Output, 12-bit, 2 ä³Î

PCI-20004M-1

Digital I/O Expander, 32 ä³Î

PCI-20006M-2

Analog Output, 16-bit, 2 ä³Î

PCI-20007M-1A

Counter/Timer Expander, 16-bit, 4 ä³Î

PCI-20020M-1

Analog Trigger/Alarm, 2 ä³Î

PCI-20021M-1B

Analog Output, 12-bit, 8 ä³Î

PCI-20031M-1

Analog Expander, 32SE/16DIFF ä³Î

PCI-20363M-2

Simultaneous Sample/hold Expander, 8 ä³Î



PCI-20098C Çϵå¿þ¾î ½Ã¾ç

Parameter

Conditions

Specification

Analog Inputs

Number of Channels

Single-ended/Differential

16/8

Channel Expansion

Using Option Modules

Up to 80SE/40Diff

Resolution



12 bits (1 part in 4096)

Voltage Ranges



0 - 10V, ±5V, ±10V

Over Voltage Protection

Power on/Power off

±35V/ ±20V

Software Programmable Gains



1, 10, 100, 200

Gain Accuracy







Gain=1

Gain=10

Gain=100

Gain=200

±0.012%

±0.05%

±0.05%

±0.085%

Offset Voltage

Referred to Output

±1.22mV

Bias Current



500pA

Input Impedance



1011 ohms/75pF

Common Mode Rejection









60Hz, 100 ohm imbalance

Gain=1

Gain=10

Gain=100

Gain=200



-80dB (0.04 LSB/V)

-90dB (0.13 LSB/V)

-90dB (1.3 LSB/V)

-90dB (2.6 LSB/V)

Noise




Input grounded at connector, gain=1 RMS

Peak-to-peak



0.5 LSB

2 LSB

Monotonicity



12 bits

Linearity Error



±0.012%FS, ±0.5 LSB

Throughput,
   Multichannel with DMA

PCI-20098C-1F, Gain = 1, 10
PCI-20098C-2F, Gain = 1, 10

45KHz
100KHz

Digital I/O

Number of channels

Programmable

16 (expandable to 80)

Input Levels



TTL compatible

Output Levels

  Source Current

  Sink Current



Vout = high

Vout = low

TTL compatible

15mA

24mA

Throughput



400kBytes/sec

Counters

Number of Channels



2 (expandable to 10)

Clock Speed



16MHZ

Input Levels



TTL compatible

Output Levels

  Source Current

  Sink Current



Vout = high

Vout = low

TTL compatible

8mA

8mA

Rate Generators

Resolution



125nS

Range



0.002Hz to 2MHz

Interrupts

Sources



Up to 8

PC Levels

Latched

2 through 7

Physical Characteristics

Power Requirements

  +5V



No option modules installed



17.A

Power Available to Modules

  +15V/-15V







100mA/100mA

Size


Length x Height


13.35" x 4.2"
(33.9cm x 10.7cm)

Operating Temperature Range



0 to 70¡É

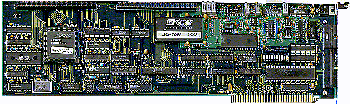

PCI-20098C Çϵå¿þ¾î »çÁø

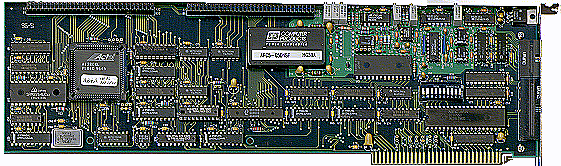

PCI-20098C Çϵå¿þ¾î

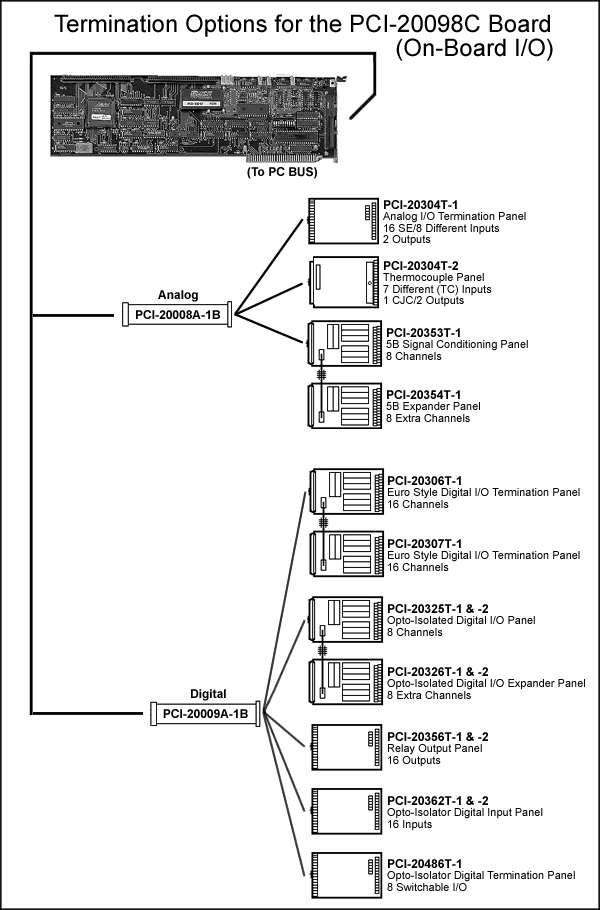

PCI-20098C ±âº» I/O Å͹̳Πº¸µå ¿¬°áµµ

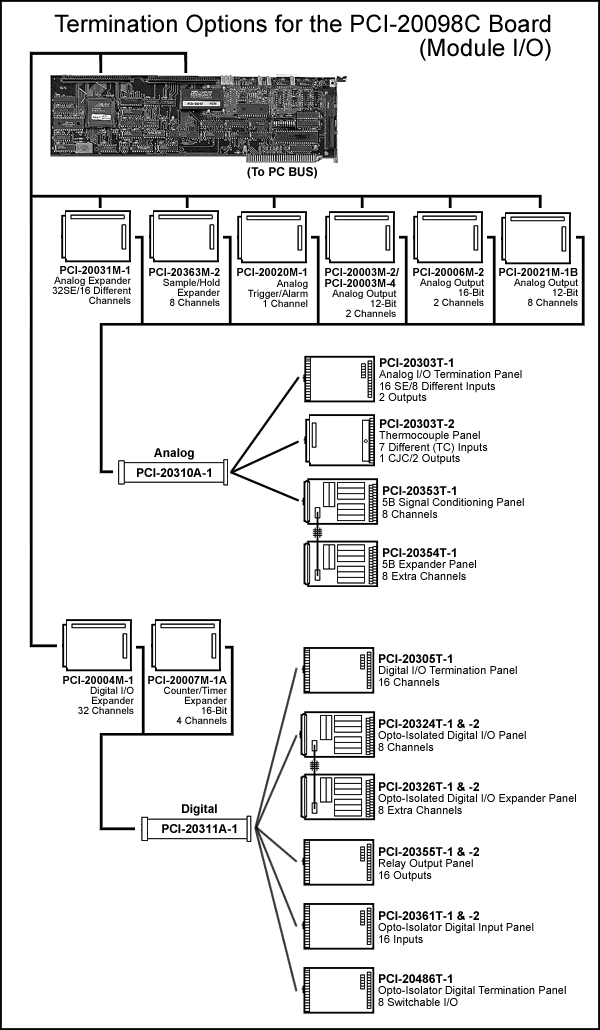

PCI-20098C Option ¸ðµâ I/O Å͹̳Πº¸µå ¿¬°áµµ
