CPCI-1500 Isolated Digital I/O Board



하드웨어 특징

square02_darkbluegreen.gif CompactPCI Interface to the 32-bit Data

square02_darkbluegreen.gif 3 Software Programmable Timers

square02_darkbluegreen.gif Connector and Software compatible to

  Digital I/O board APCI-1500 for the PCI

  Bus as well as to the board PA 1500 for

  the ISA Bus

square02_darkbluegreen.gif MTBF : 85150 Hours at 45


Input Channels

square02_darkbluegreen.gif 16 Isolated Digital Input Channels, 24V,

  Include 14 Interrupible

square02_darkbluegreen.gif Voltage Reversal Protection

square02_darkbluegreen.gif All Inputs are Filtered


Output Channels

square02_darkbluegreen.gif 16 Isolated Output Channels, 10 to 36V

square02_darkbluegreen.gif Output Current per Channel 500mA

square02_darkbluegreen.gif At Power/ON the Outputs are reset to "0"

square02_darkbluegreen.gif Self-Resetting Fuse(Electronic Fuse)

square02_darkbluegreen.gif Overtemperature & Overvoltage Protection

square02_darkbluegreen.gif 24V Power Outputs with Protection

  Diodes and Filters

square02_darkbluegreen.gif Output Capacitors Minimise

  Electromagnetic Emissions

square02_darkbluegreen.gif External 24V Supply Screened through

  a Protection Circuitry

square02_darkbluegreen.gif Shut-down Logic when the External

  Supply Voltage Drops Below 5V


Safery Features

square02_darkbluegreen.gif Optical Isolation 1000V

square02_darkbluegreen.gif Protection against Fast Transients(Burst),

  Overvoltage, Electrostatic Discharge and

  High-Frequency EMI

square02_darkbluegreen.gif Seperate Grounds for Input & Output


지원 소프트웨어

square02_darkbluegreen.gif Standard Drivers :

  - Windows 2000/NT/98/95

  - Windows 3.11, MD-DOS

square02_darkbluegreen.gif Real Time Drivers :

  - Windows 2000/NT

square02_darkbluegreen.gif Test Program : ADDIMON

square02_darkbluegreen.gif LabVIEW 5.01

square02_darkbluegreen.gif LabWindows/CVI 5.01

square02_darkbluegreen.gif Samples programs :

  - Microsoft VC++ 5.0/Microsoft C 6.0

  - Borland C++ 5.01/Borland C 3.1

  - Visual Basic 1.0/4.0/5.0

  - Delphi 1.0/4.0

  - Diadem 4

  - Turbo Pascal 7.0

square02_darkbluegreen.gif On request :

  - Diadem 6

square02_darkbluegreen.gif In Preparaion :

  - Driver for Linux kernel version 2.4.2

  - DasyLab


CE Certification

square02_darkbluegreen.gif EN 50082-2, EN 55011, EN 55022


응용 분야

square02_darkbluegreen.gif Industrial I/O Control

square02_darkbluegreen.gif PLC connection

square02_darkbluegreen.gif Signal Switching

square02_darkbluegreen.gif Interface to Electromechanical Relay

square02_darkbluegreen.gif Automatic Test Equipment

square02_darkbluegreen.gif ON/OFF Monitoring of Motors, Lights ...

square02_darkbluegreen.gif Watchdog Timer

square02_darkbluegreen.gif Machine Interfacing, ...


모 델 번 호

비       고


32 Isolated Digital I/O Board, 24V, 3U European Standard Size



CPCI-1500 board with 6U Bracket for mounting in 6U Housing



Screw Terminals Board, LED Status Dispaly


Screw Terminals Board, LED Status Dispaly, DIN-rail


3-row Screw Terminals Board, LED Status Dispaly, DIN-rail


Relay Output Board, DIN-rail, Cascadable


Standard Shielded, Twisted pairs Round 케이블, 2m/5m


Same as ST010, for High Currents


Cable between APCI-1500 and PX8500, Shielded Twisted pairs, 2m


Round Cable between PX8500 and PX901, Shielded, 2m


Ribbon Cable for Cascading two PX8500


CPCI-1500 하드웨어 사양



Digital Input

Number of Channels

16(Common Ground according to IEC 1131-2)

Interruptible Inputs

14, IRQ lines selected through BIOS



Through Optical Couplers, 1000V

from the PC to the Peripheral

Interrupt Comparision Logic

AND & OR mode, OR priority

Normal Voltage


Input Current at 24V

6mA typ.

Logic Input Level:


U Nominal


UH Max.

30V / Current 9mA typ.

UH Min.

19V / Current 2mA typ.

UL Max.

17V / Current 0.6mA typ.

UL Min.

0V / Current 0mA typ.

Signal Delay

70 ( for 24V Input Channels )

Maximum Input Frequency

5 kHz ( at 24V )

Digital Output

Number of Channels

16, Optically Isolated to 1000V through optical couplers

Output Type

High-Side(load at ground) according IEC 1131-2

Nominal Voltage


Supply Volatge

10 to 36V, min 5V(through front connector)

Max. Current for 16 Outputs

3A typ.

Output Current/Output

500mA typ.

Short-Circuit Current/Output

Shut-Down at 24V, RLoad<0.1



RDS ON Resistance

0.4 Max.

Switch-On Time

I out = 0.5A, Load = Resistance : 100

Switch-Off Time

I out = 0.5A, Load = Resistance : 60


170 (output driver)

Temperature Hysteresis

20 (output driver)


Shut-Down Logic


When 24V ext. supply volatge drops below 5V:

the outputs are switched off.


Status bit or Interrupt to the PC




Timer programmable, 17 to 36 s

Noise Immunity

Test Level




- ESD: 4kV

- Field: 10V/m

- Burst: 4kV

- Conducted radio interferences: 10V

Physical & Environmental Conditions



System Bus

CPCI 32-bit acc. to specification CompactPCI 2.1

Space Required

1 CPCI slot 3U

Operating Voltage

+5V, ±5% from the PC

Current Consumption

130mA typ. ±10%

Front Connector

37-pin SUB-D male connector

Temperature Range

0 to 60 (with forced cooling)


85150 Hours at 45

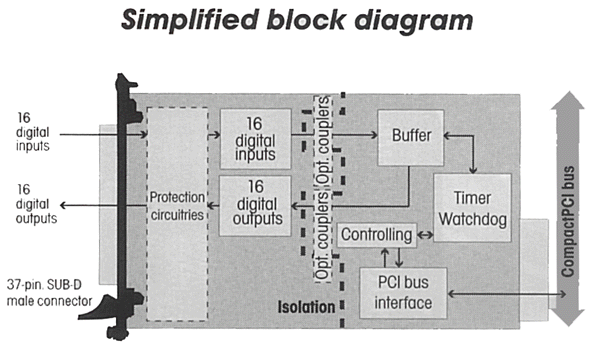

CPCI-1500 Block Diagram

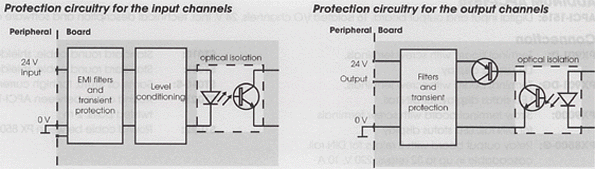

Protection Circuit

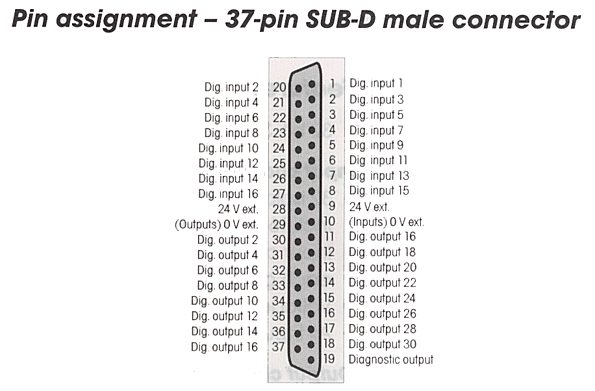

CPCI-1500 Connector

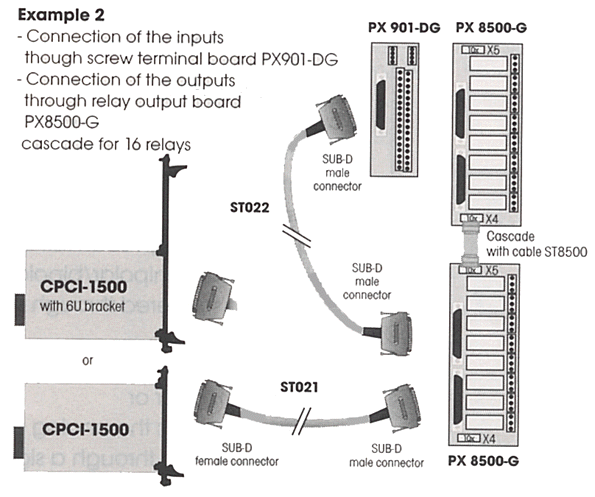

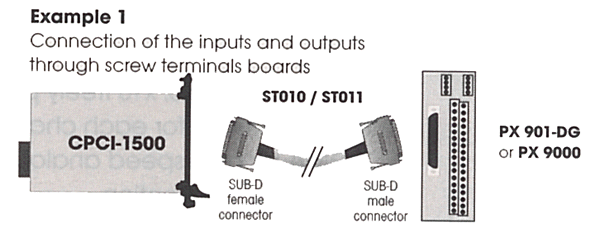

CPCI-1500 터미널 보드 연결도
