PA1500 Isolated Digital I/O Board





Çϵå¿þ¾î Ư¡



Input Channels

square02_darkbluegreen.gif 16 Isolated Input Channels, 24V,

  Include 14 Interrupible

square02_darkbluegreen.gif Voltage Reversal Protection

square02_darkbluegreen.gif All Inputs are Filtered



Output Channels

square02_darkbluegreen.gif 16 Isolated Output Channels, 10 to 36V

square02_darkbluegreen.gif Output Current per Channel 500mA

square02_darkbluegreen.gif At Power/ON the Outputs are reset to "0"

square02_darkbluegreen.gif Self-Resetting Fuse(Electronic Fuse)

square02_darkbluegreen.gif Overtemperature & Overvoltage Protection

square02_darkbluegreen.gif 24V Power Outputs with Protection

  Diodes and Filters

square02_darkbluegreen.gif Output Capacitors Minimise

  Electromagnetic Emissions

square02_darkbluegreen.gif External 24V Supply Screened through

  a Protection Circuitry

square02_darkbluegreen.gif Interrupt Triggered through Watchdog

  or Error

square02_darkbluegreen.gif Addressing range freely configurable

  through DIP switches, 8-16 bit access









Safery Features

square02_darkbluegreen.gif Optical Isolation 1000V

square02_darkbluegreen.gif Protection against Fast Transients(Burst),

  Overvoltage, Electrostatic Discharge and

  High-Frequency EMI

square02_darkbluegreen.gif Seperate grounds for the Inputs and

  the Outputs

square02_darkbluegreen.gif Shutdown Logic when the External Supply

  Voltage Drops under 5V



Áö¿ø ¼ÒÇÁÆ®¿þ¾î

square02_darkbluegreen.gif Standard Drivers :

  - Windows 2000/NT/98/95

  - Windows 3.11, MD-DOS

square02_darkbluegreen.gif Real Time Drivers :

  - Windows 2000/NT/98/95

square02_darkbluegreen.gif Test Program : ADDIMON

square02_darkbluegreen.gif LabVIEW 5.01

square02_darkbluegreen.gif LabWindows/CVI 5.01

square02_darkbluegreen.gif Samples programs :

  - Microsoft VC++ 5.0/Microsoft C 6.0

  - Borland C++ 5.01/Borland C 3.1

  - Visual Basic 5.0

  - Delphi 4.0

  - Turbo Pascal 7.0

square02_darkbluegreen.gif On request :

  - Diadem 6

  - Visual Basic 1.0



CE Certification

square02_darkbluegreen.gif EN 50082-2, EN 55011, EN 55022



ÀÀ¿ë ºÐ¾ß

square02_darkbluegreen.gif Monitoring of PC-controlled processed

square02_darkbluegreen.gif PLC connection

square02_darkbluegreen.gif Industrial Measurement

square02_darkbluegreen.gif Interface to Electromechanical Relay

square02_darkbluegreen.gif Automatic Test Equipment

square02_darkbluegreen.gif ON/OFF Monitoring of Motors, Lights ...

square02_darkbluegreen.gif Watchdog Timer

square02_darkbluegreen.gif Machine Interfacing, ...



¸ð µ¨ ¹ø È£

ºñ       °í

PA1500

32 Digital I/O Board, 24V, Isolated, 500mA

Accessories

PX901-D

Screw Terminals Board, LED Status Display

PX901-DG

Screw Terminals Board, LED Status Display, DIN-rail

PX9000

3-row Screw Terminals Board for DIN-rail, LED Status Display

PX8500-G

Relay Board for DIN-rail, Cascadable

ST010/ST011

Standard Shielded, Twisted pairs Round ÄÉÀ̺í, 2m/5m

ST010-S

Same as ST010, for High Currents

ST021

Cable between PA 1500 and PX8500, Shielded Twisted pairs

ST022

Between PX8500 and PX901, 2m

ST8500

Ribbon Cable for Cascading two PX8500



PA1500 Çϵå¿þ¾î »ç¾ç

Parameter

Descriptions

Digital Input

Number of Channels

16(Common Ground according to IEC 1131-2)

Optical Isolation



Through Optical Couplers, 1000V

from the PC to the peripheral

Interruptible Inputs

14 of the 16 Digital Input Channels

Interruptible Lines

IRQ 3, 5 for XT,  IRQ 10, ,11, 12, 14, 15 for AT

Interrupt Comparision Logic

AND & OR mode, OR priority

Normal Voltage

24V

Input Current at 24V

6mA typ.

Logic Input Level:









U nominal : 24V

UH Max. : 30V / Current 9mA typ.

UH Min. : 17V / Current 2mA typ.

UL Max. : 14V / Current 0.6mA typ.

UL Min. : 0V / Current 0mA typ.

Signal Delay

70 §Á ( at 24V )

Maximum Input Frequency

5 kHz ( at 24V )

Digital Output

Number of Channels

16, Optically Isolated to 1000V

Output Type

High-Side(load at ground) according IEC 1131-2

Nominal Voltage

24V

Supply Volatge

10 to 36V, min. 5V(through front connector)

Max. Current for 16 Outputs

3A typ.

Output Current/Output

500mA typ.

Short-Circuit Current/Output

Shut-Down at 24V, RLoad<0.1§Ù



1.5A

RDS ON Resistance

0.4 §Ù Max.

Switch-On Time

I out = 0.5A, Load = Resistor : 120 §Á

Switch-Off Time

I out = 0.5A, Load = Resistor: 40 §Á

Overtemperature(Shut-Down)

170 ¡É(Output Driver)

Temperature Hysteresis

20 ¡É(Output Driver)

Safety

Shut-Down Logic





When 24V ext. supply volatge drops below 5V:

the outputs are switched off.

Diagnostic: Status bit or Interrupt to the PC

Watchdog

Timer Programmable, 5 §Á to 9s

Noise Immunity

Test Level







- ESD: 4kV

- Field: 10V/m

- Burst: 4kV

- Conducted radio interferences: 10V

Physical & Environmental Conditions

Dimensions approx.

156 x 99 mm

System Bus

ISA

Space Required

Short board, 1 AT or XT slot

Operating Voltage

+5V, ±5% from the PC

Operating Voltage/Current

130mA

Front Connector

37-pin SUB-D male connector

Temperature Range

0 to 60 ¡É(with forced cooling)

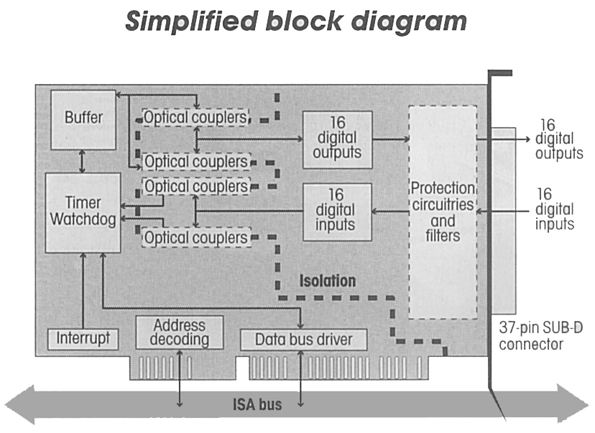

PA1500 Block Diagram



PA1500 Protection Circuit

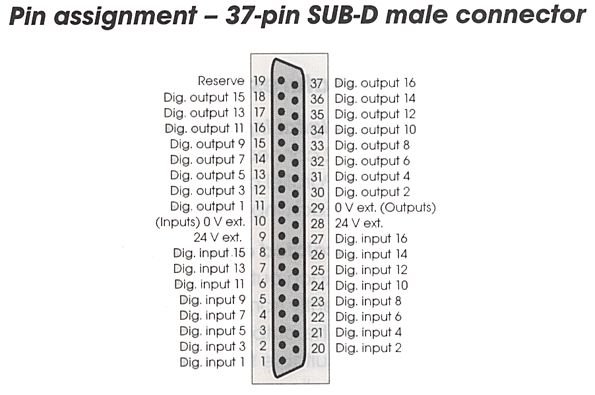

PA1500 Connector

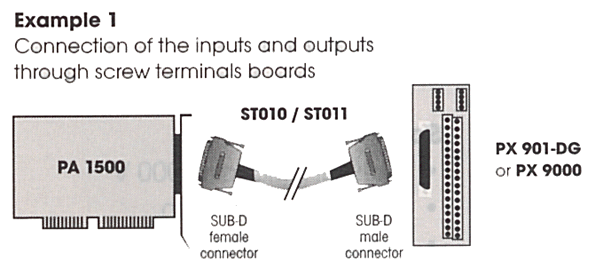

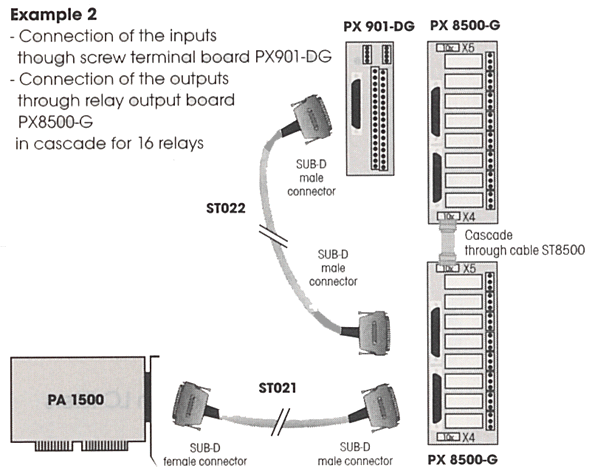

PA1500 Å͹̳Πº¸µå ¿¬°áµµ
