PX8500 8 Relay 출력 터미널 보드

PX8500 릴레이 출력 터미널 보드 특징

8 채널 릴레이 출력 보드, Cascaded 방식으로 연결시 16, 24 and 32 채널 연결 가능

Max. switching voltage : 30 VAC / 277 VAC

Max. switching current : 10 A

Operating Voltage 표시 : 1 Green LED

각 Relay Function 표시 : Red LEDs

소켓형 릴레이 설치

High switching capacity

Long-lasting life

All terminals intended for large conductor cross sections: up to 2.5 mm²

모 델 번 호

비 고

PX8500

Base board with 8 relays

PX8500-G

With housing for mounting on a standard supporting rail (DIN)

PX8500-Vt

With varistors

PX8500-VtG

With varistors and housing for DIN-rail mounting

Cables

ST8500

Ribbon cable for Cascading the board to 16, 24, 32 Relays

ST010

Standard round cable, shielded, twisted pairs, 2 m for the connection of
the PA 2000, APCI-2032

ST011

Same as ST010, 5 m

ST021

Standard round cable, shielded, for the connection of the
APCI-1500, PA 1500 , CPCI-1500

ST022

Standard round cable, shielded, to Cascade 2 PX 8500

PX8500 Relay 출력 보드 사양

Parameter

Descriptions

Noise immunity - Test level

Electric Strength of the Ralays
At Open Contact

1000 Veff

Contact Coil

5000 Veff

Isolation Structure of the board
according to VDE0110

Group C/250VAC/300VAC

Contact Side

Type of Contacts

8 Change-over Contacts

Max. Switching Voltage

30 VAC - 277 VAC

Max. Switching Capacity

300W - 2500VA

Max. Switching Current

10A

Contact Resistance

<100 mΩ

Response Time

15 ms

Release Time

5 ms

Mechanical Life

5,000,000 Operations

Operating Life at Max.
Switching Capacity

100,000 Operations

Control Side

Switching Behaviour

Monostable

Operating Voltage

24VAC

Operating Effeciency

533 mW

Switching Frequ. at Max. Load

20 Switchings / Minute

Threshold Voltage at +20℃

16.8V

Release Voltage at +20℃

2.4V

Physical and Environmental

Operating Voltage

+24V

Dimensions

(L x W x H) 210 x 68 x 42 mm

Dimensions with Housing

(L x W x H) 212 x 87 x 72 mm

Connectors

2 x 37-pin SUB-D Female Connector

X1 : For the connection to PC board

X2 : For cascading the PX 8500 in Max. 32 Relays

Temperature Range

0~70℃

Humidity

30~95%

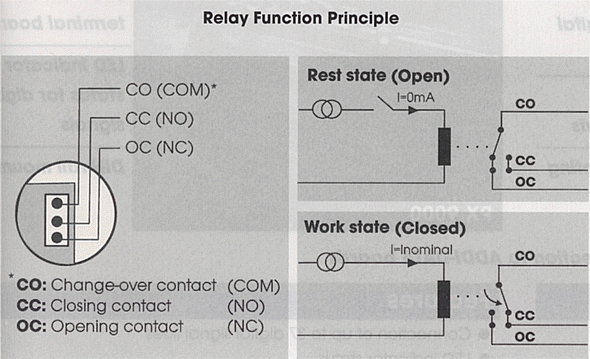

Relay Function Principle

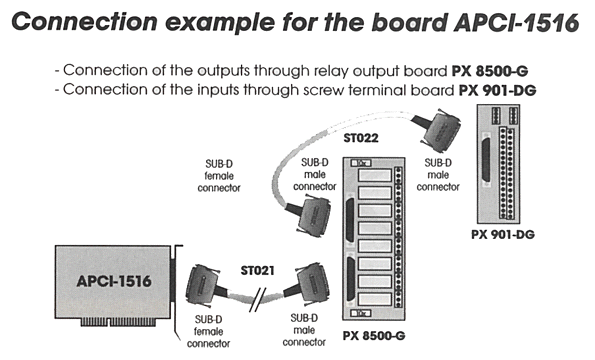

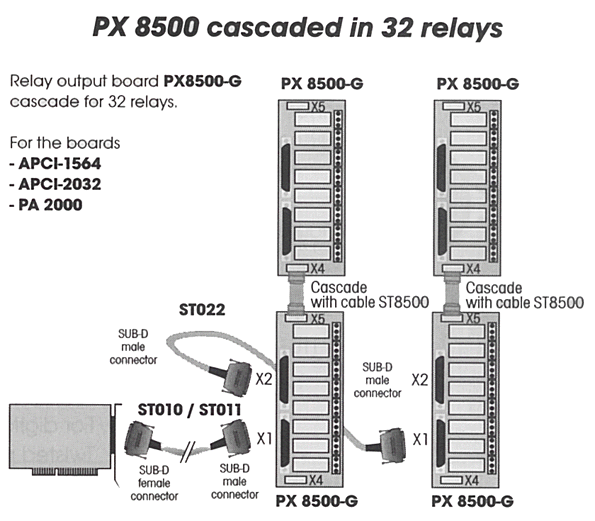

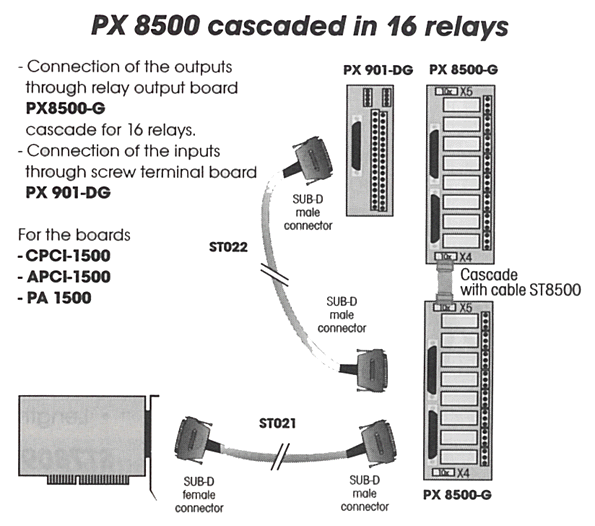

PX8500 Cascaded 연결 예

한국인텔리젼트시스템(Korea Intelligent System) 전화 : 02-3272-9301 Email : sales@intelligent.co.kr
