PCI-20087W-1A Digital I/O Board



PCI-20087W-1A Çϵå¿þ¾î Ư¡

square02_darkbluegreen.gif 40 ä³Î µðÁöÅÐ I/O(TTL level)

square02_darkbluegreen.gif ¼ÒÇÁÆ®¿þ¾î¿¡¼­ ÀÔ.Ãâ·Â ¼³Á¤(8-Bit ´ÜÀ§)

square02_darkbluegreen.gif High Current-Sink & Source

square02_darkbluegreen.gif Synchronization/Handshaking °¡´É

Áö¿ø ¼ÒÇÁÆ®¿þ¾î

square02_darkbluegreen.gif MasterLink - DOS, Windows µå¶óÀÌºê ¶óÀ̺귯¸®

square02_darkbluegreen.gif LabVIEW - LabVIEW VI ¶óÀ̺귯¸®

Å͹̳ΠÆÐ³Î ¿É¼Ç

´Ù¾çÇÑ ÇüÅÂÀÇ Å͹̳Π¿É¼ÇÀ» ¿¬°áÇÏ¿© »ç¿ë °¡´É







 PCI-20087W Çϵå¿þ¾î



¸ð µ¨ ¹ø È£

ºñ       °í

PCI-20087W-1A

Digital I/O Board, 40 ä³Î



PCI-20087W-1A Çϵå¿þ¾î »ç¾ç

Parameter

Conditions

Specification

Digital I/O

Number of Ports

  Fully Buffered (I/O)

  Non-Buffered (I/O or Handshake)

8 channels (bits) each





5

32 channels

8 channels

Input Levels



TTL

Output Levels

  Buffered Ports

    Source Current

    Sink Current



Vout = high

Vout = low



15mA

24mA

  Non-buffered Ports

    Source Current

    Sink Current



Vout = high

Vout = low



200¥ìA

1.7mA

System Throughput (Hardware Only)

Digital I/O



400 kBytes/second

Interrupts

Sources



Up to 3

PC Levels



2 through 7

Physical Characteristics

Power Requirements

Vin = +5V

425mA maximum

Size

Length x Height

5.0" x 4.2" (12.7cm x 10.7cm)

Operating Temperature Range



0 to 70 C

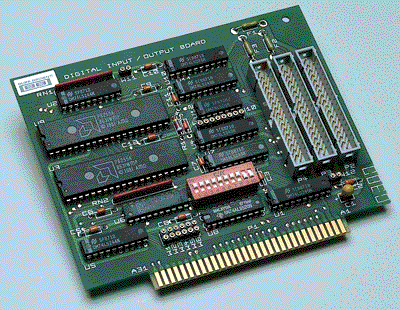

PCI-20087W-1A Çϵå¿þ¾î »çÁø

PCI-20087W Çϵå¿þ¾î

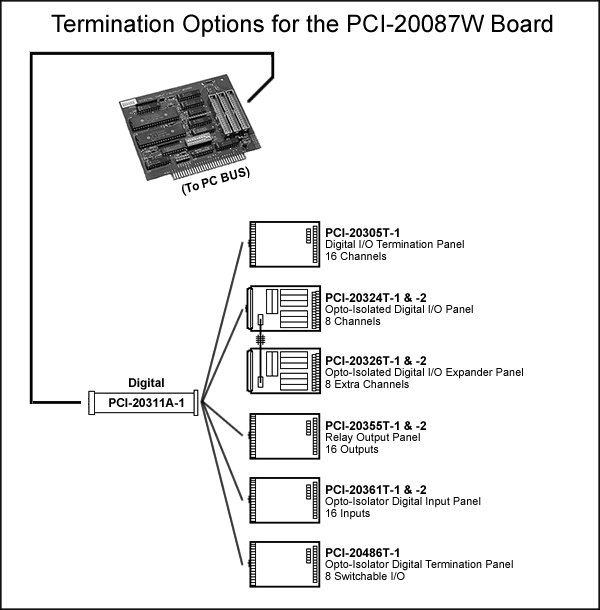

PCI-20087W  Å͹̳Πº¸µå ¿¬°áµµ



Çѱ¹ÀÎÅÚ¸®Á¯Æ®½Ã½ºÅÛ(Korea Intelligent System)  ÀüÈ­ : 02-3272-9301   Email : sales@intelligent.co.kr
