PCI-20428W Data Acquisition Board



PCI-20428W Çϵå¿þ¾î Ư¡

square02_darkbluegreen.gif 100kHz ¾Æ³¯·Î±× I/O »ùÇøµ

square02_darkbluegreen.gif 12-bit 16SE/8DIFF ä³Î ¾Æ³¯·Î±× ÀÔ·Â

square02_darkbluegreen.gif 256SE/128DIFF ¾Æ³¯·Î±× ÀԷ ä³Î È®Àå °¡´É

square02_darkbluegreen.gif 12-bit 2 ä³Î ¾Æ³¯·Î±× Ãâ·Â

square02_darkbluegreen.gif DMA µ¥ÀÌÅÍ Àü¼Û

square02_darkbluegreen.gif 8 ä³Î µðÁöÅÐ ÀÔ·Â, 8 ä³Î µðÁöÅÐ Ãâ·Â

square02_darkbluegreen.gif 1 16-bit Ä«¿îÅÍ

Áö¿ø ¼ÒÇÁÆ®¿þ¾î

square02_darkbluegreen.gif MasterLink - DOS, Windows µå¶óÀÌºê ¶óÀ̺귯¸®

square02_darkbluegreen.gif LabVIEW - LabVIEW VI ¶óÀ̺귯¸®

Å͹̳ΠÆÐ³Î ¿É¼Ç

´Ù¾çÇÑ ÇüÅÂÀÇ Å͹̳Π¿É¼ÇÀ» ¿¬°áÇÏ¿© »ç¿ë °¡´É





¸ð µ¨ ¹ø È£

ºñ       °í

PCI-20428W-1A

Low-Cost I/O Board, Gain = 1, 10, 100

PCI-20428W-2A

Low-Cost I/O Board, Gain = 1, 2, 4, 8

PCI-20428W-3A

Low-Cost I/O Board, Gain = 1, No Analog Outputs

KITS

PCI-20428K-1

Low-Cost I/O Board, Gain = 1, 10, 100 (with Termination Panel)

PCI-20428K-2

Low-Cost I/O Board, Gain = 1, 2, 4, 8 (with Termination Panel)

PCI-20428K-3

Low-Cost I/O Board, Gain = 1 (no Analog Outputs, with Termination Panel)

 AI-MAX Analog Channel Expansion System :  256SE/128DIFF channel expansion



PCI-20428W Çϵå¿þ¾î »ç¾ç

Parameter

Conditions

Specification

Analog Input

Number of Channels

Single-ended/Differential

16/8

Resolution



12 bits (1 part in 4096)

Voltage Ranges



0-5V, 0-10V, ±5V, ±10V

Software Programmable Gains



PCI-20428W-1A

PCI-20428W-2A

PCI-20428W-3A

1, 10, 100

1, 2, 4, 8

1

Gain Accuracy



Gain<=10

Gain=100

0.05%

0.08%

Over Voltage Protection

Power on/Power Off

±35V/±20V

Offset Voltage

Referred to output

±2.44mV

Bias Current



500pA

Input Impedance



109 ohms/10pF

Common Mode Rejection





60Hz, 100 ohm imbalance

Gain<=10

Gain=100



-80dB (0.02 LSB/V)

-92dB (0.05 LSB/V)

Monotonicity



12 bits

Linearity Error



0.012%FS, ±1/2 LSB

Throughput, Multichannel

DMA, Triggered DMA

100KHz

Analog Output (PCI-20428W-1A, -2A)

Number of Channels



2

Resolution



12 Bits (1 part in 4096)

Voltage Ranges



0-10V, ±5V, ±10V

Throughput

DMA

100kHz

Digital I/O

Number of Ports

8 channels (bits) each

2 (1 input, 1 output)

Input Levels

  Input Current



High level/Low level

TTL compatible

20¥ìA/20¥ìA

Output Levels

  Source/Sink Current



Vout=High/Low

TTL compatible

400¥ìA/8mA

Counters

Number of Channels



1

Clock Speed



16MHz

Input Levels



TTL compatible

Output Levels

  Source/Sink Current



Vout=High/Low

TTL compatible

15mA/64mA

Rate Generators





Number



2 (1 analog input, 1 analog output)

Resolution



125nS

Output Frequency Range

  16-bit

  With Prescaler









122Hz to 4MHz

0.002Hz to 2MHz

Input Levels



TTL compatible

Output Levels

  Source/Sink Current



Vout=High/Low

TTL compatible

15mA/64mA

Interrupts

Sources




EOC, AI Rate Generator, AO Rate Generator

PC Levels



IRQ2, IRQ3, IRQ5

DMA Channels

Number



2 (1 analog input, 1 analog output)

PC Levels

Jumper-selected

DMA1, DMA3

Resolution



125nS

Modes

  Input

  Output



Triggered/Non-triggered

Triggered/Non-triggered



Linear/Circular Buffer

Linear/Circular Buffer

Physical Characteristics

Power Requirements

Vin = +5V

1A

Size

Length x Height

9.0" x 4.2" (22.86cm x 10.67cm)

Operating Temperature Range



0-70¡É

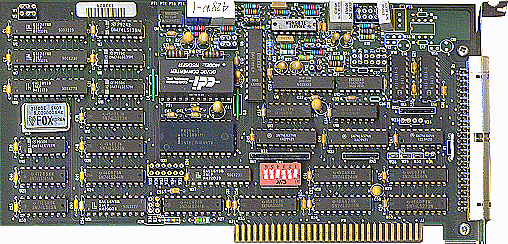

PCI-20428W Çϵå¿þ¾î »çÁø

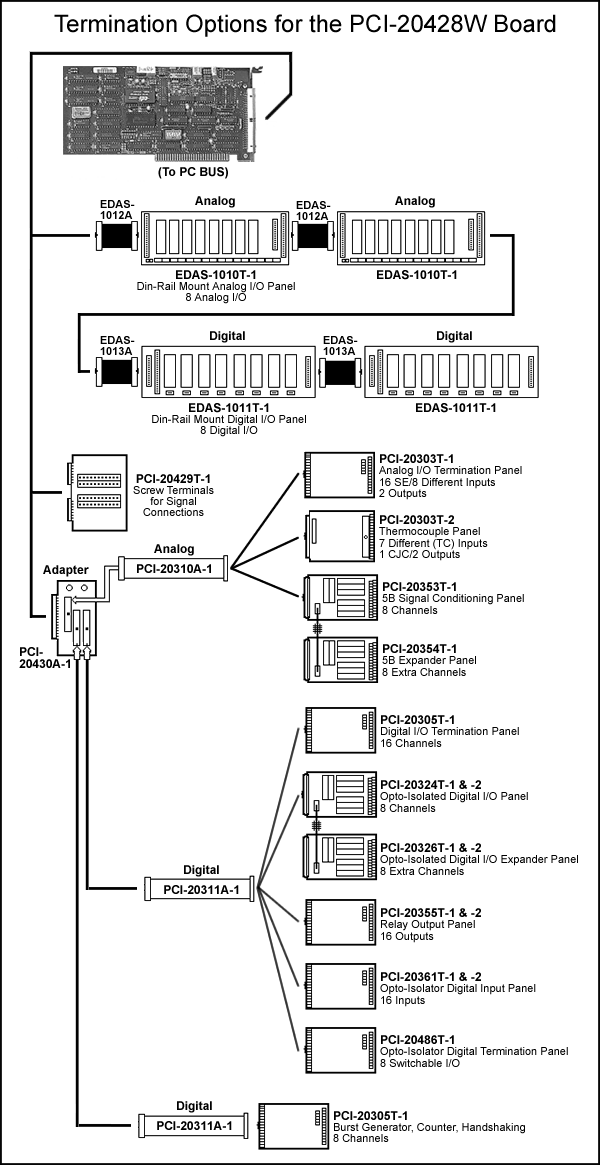

PCI-20428W  Å͹̳Πº¸µå ¿¬°áµµ
