PCI-20378W Digital I/O Board

PCI-20378W 하드웨어 특징

120, 240 채널 디지털 I/O(TTL level)

소프트웨어에서 입.출력 설정(8-Bit 단위)

High Current-Sink & Source

Synchronization/Handshaking 가능

지원 소프트웨어

MasterLink - DOS, Windows 드라이브 라이브러리

LabVIEW - LabVIEW VI 라이브러리

터미널 패널 옵션

다양한 형태의 터미널 옵션을 연결하여 사용 가능
PCI-20378W 하드웨어

모 델 번 호

비 고

PCI-20378W-1

Digital I/O Board, 240 채널

PCI-20378W-3

Digital I/O Board, 120 채널

PCI-200378W 하드웨어 사양

Parameter

Conditions

Specification

Digital I/O

Number of Ports^*

PCI-20378W-1(8 channels each)
PCI-20378W-3(8 channels each)

30 ports (240 channels)
15 ports (120 channels)

Input Levels

TTL

Output Levels

Initialized as inputs

TTL

Output Current
Source Current
Sink Current

Vout = high
Vout = low

15mA^**
24mA^**

Interrupts

Type

Latched

Sources

PCI-20378W-1
PCI-20378W-3

Up to 6
Up to 4

PC Levels

PCI-20378W-1
PCI-20378W-3

2 through 7
2 through 7

System Throughput (Hardware Only)

Digital I/O

400 kBytes/second

Physical Characteristics

Power Requirements

PCI-20378W-1, Vin = +5V
PCI-20378W-3, Vin = +5V

3.65 A maximum
2.14 A maximum

Size

Length x Height

13.4" x 4.5" (40.0cm x 11.4cm)

Operating Temperature Range

0 to 70 ℃

* All digital I/O ports are programmable as either inputs or outputs.
** Total for all channels cannot exceed 3.0 A per board.

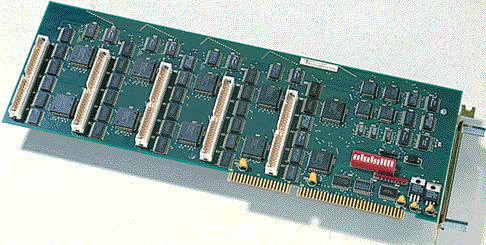

PCI-20378W 하드웨어 사진

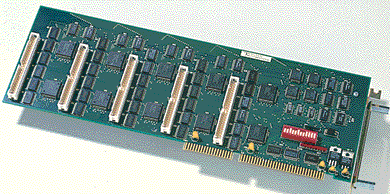

PCI-20378W 하드웨어

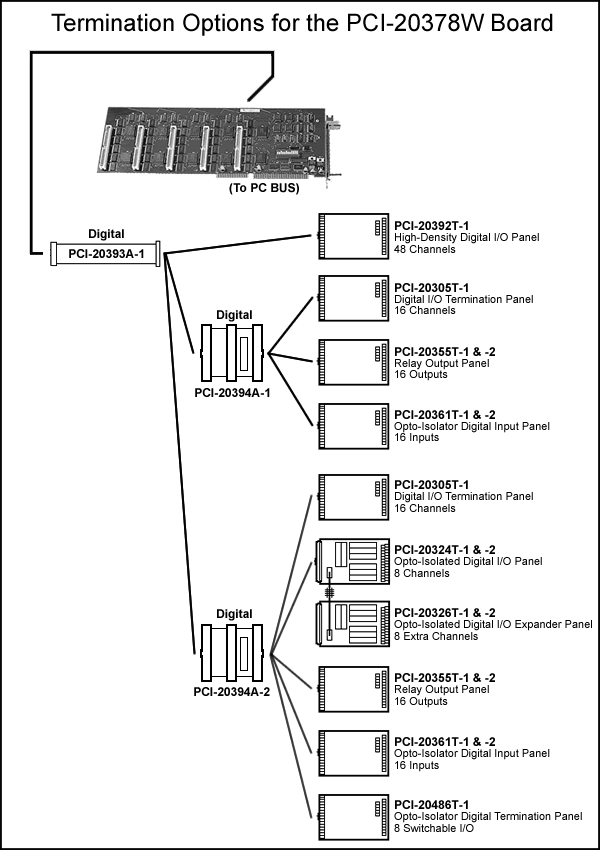

PCI-20378W 터미널 보드 연결도

한국인텔리젼트시스템(Korea Intelligent System) 전화 : 02-3272-9301 Email : sales@intelligent.co.kr

모 델 번 호	비 고
PCI-20378W-1	Digital I/O Board, 240 채널
PCI-20378W-3	Digital I/O Board, 120 채널

PCI-200378W 하드웨어 사양
Parameter	Conditions	Specification
Digital I/O
Number of Ports^*	PCI-20378W-1(8 channels each) PCI-20378W-3(8 channels each)	30 ports (240 channels) 15 ports (120 channels)
Input Levels		TTL
Output Levels	Initialized as inputs	TTL
Output Current Source Current Sink Current	Vout = high Vout = low	15mA^ 24mA^
Interrupts
Type		Latched
Sources	PCI-20378W-1 PCI-20378W-3	Up to 6 Up to 4
PC Levels	PCI-20378W-1 PCI-20378W-3	2 through 7 2 through 7
System Throughput (Hardware Only)
Digital I/O		400 kBytes/second
Physical Characteristics
Power Requirements	PCI-20378W-1, Vin = +5V PCI-20378W-3, Vin = +5V	3.65 A maximum 2.14 A maximum
Size	Length x Height	13.4" x 4.5" (40.0cm x 11.4cm)
Operating Temperature Range		0 to 70 ℃
* All digital I/O ports are programmable as either inputs or outputs. ** Total for all channels cannot exceed 3.0 A per board.
