PCI-20031M-1 Analog Expander Module

PCI-20031M-1 옵션 모듈 특징

32SE/16DIFF 채널 아날로그 입력 확장

터미널 패널 옵션

다양한 형태의 터미널 옵션을 연결하여 사용 가능

PCI-20031M 모듈

모 델 번 호

비 고

PCI-20031M-1

Analog Expander/Sequencer Input Module, 32SE/16DIFF 채널

Signal Conditioning & Termination Panel

PCI-20303T-1

Euro-Style(3U), 16SE/8DIFF 채널, Analog Termination Panel

PCI-20303T-2

Euro-Style(3U), Thermocouple, 7DIFF 채널, Analog Termination Panel

PCI-20353T-1

Euro-Style(3U), 8 채널, Analog Termination Panel for 5B Signal Conditioner

PCI-20354T-1

Euro-Style(3U), 8 채널 확장용, Analog Termination Panel for 5B Signal Conditioner

PCI-20031M-1 하드웨어 사양

Parameter

Conditions

Specification

Analog Input

Number of Channels

Single-ended
Differential

32
16

Analog Signal Range

Linear Operation

±10V

Hardware Channel Scanner

Advanced with sync input or software command

Up to 128 Cannels

Overvoltage Protection

Power on
Power off

±35V
±20V

Input Capacitance⁽¹⁾

Channel "on": Single-ended
Channel "on": Differential
Channel "off"

100pF
50pF
5pF

"On" Resistance

Maximum

1.8K ohms

"Off" Isolation

Frequency = 1kHz, R_S= 1K ohms

85dB

Input Leakage

"On" Channel
"Off" Channel

0.1nA
0.03nA

System Throughput⁽²⁾

Multichannel Analog Input with DMA

Installed in module position 2 on PCI-20098C-2

100kHz

Physical Characteristics

Power Requirements⁽³⁾
  +5V
  +15V
  -15V

345mA
8mA
4mA

Operating Temperature Range

0 to +70°C

Notes: (1) For a single PCI-20031M-1 Module only. To determine the total input capacitance of a system, add the input capacitance(s) of the PCI-20031M-1 module(s) to the input impedance of the system A/D. In the single-ended mode, it is assumed that all four mux outputs are connected together. In the differential mode, two mux outputs are connected together. (2) Hardware limit only. Software may reduce speed. (3) Refer to the data sheet of the host board to determine available power.

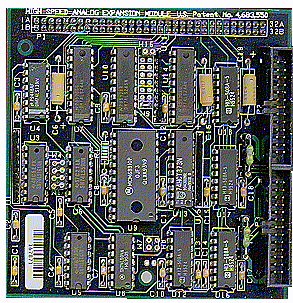

PCI-20031M-1 하드웨어 사진
