PCI-20003M Analog Output Module

PCI-20003M 옵션 모듈 특징

12-bit, Dual 채널 아날로그 출력

1/2LSB Linearity 에러

Voltage & Current 출력

터미널 패널 옵션

다양한 형태의 터미널 옵션을 연결하여 사용 가능

PCI-20003M 모듈

모 델 번 호

비 고

PCI-20003M-2

2 채널, 12-bit, Analog Voltage Output Module

PCI-20003M-4

2 채널, 12-bit, Analog Voltage or Current Output Module

Signal Conditioning & Termination Panel

PCI-20303T-1

Euro-Style(3U), 16SE/8DIFF 채널, Analog Termination Panel

PCI-20353T-1

Euro-Style(3U), 8 채널, Analog Termination Panel for 5B Signal Conditioner

PCI-20003M 하드웨어 사양

Parameter

Conditions

Specification

Analog Output

Number of Channels

2

Resolution

12 bits (1 part in 4,096)

Voltage Ranges

±5V, ±10V, 0 to 10V full scale

Current Ranges

PCI-20003M-4 only

4 to 20mA, 5 to 25mA

Accuracy

Gain

Voltage output
Current output

±0.5LSB
0.6% FSR

Linearity Error

Voltage output, maximum
Current output

±0.5LSB
±1.5LSB

Offset Voltage

0 to +50°C

±0.5LSB

Monotonicity

No missing code

12 bits

Output Stage

Output Current

Voltage mode
Current mode

±5mA
0 to 25mA

Voltage Compliance

Current mode

15V or loop supply ⁽¹⁾

System Throughput⁽²⁾

Analog Output

250K outputs/second

Physical Characteristics

Power Requirements⁽³⁾

Voltage out or current out with external loop power

+15V supply
-15V supply
+5V supply

50mA maximum
70mA maximum
180mA maximum

Current out with internal loop supply

+15V supply
-15V supply
+5V supply

100mA maximum
70mA maximum
180mA maximum

External Loop Power

Current output mode

+13.5 to 35V; I = 50mA maximum

Operating Temperature Range

0℃ to +70°C

Notes: (1) When operating in the current output mode, the minimum output swing depends on the maximum output current and the external load resistance as follows: Vmin = 5.2 + ImaxRL, where Imax = 20 or 25mA and RL = Load Resistance. (2) Hardware limit only. Software may reduce speed. (3) Refer to the data sheet for the host board to determine available power.

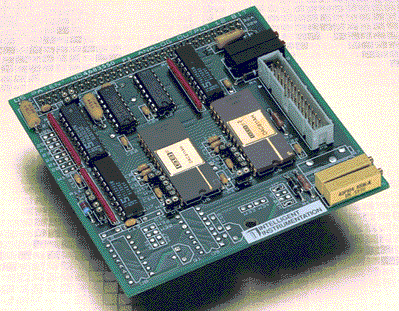

PCI-20003M 하드웨어 사진
