16-Bit ÀÌ´õ³Ý DAQ ½Ã½ºÅÛ



EDAS-1031E Çϵå¿þ¾î Ư¡

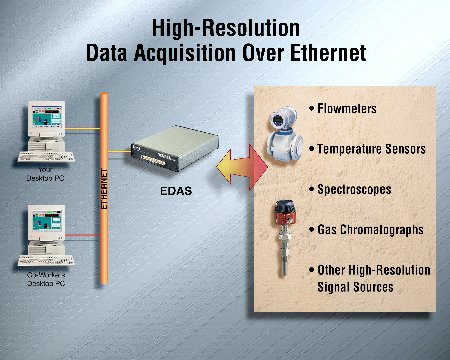

square02_darkbluegreen.gif Networked ÀÌ´õ³Ý DAQ ½Ã½ºÅÛ

square02_darkbluegreen.gif 10-BaseT ÀÎÅÍÆäÀ̽º

square02_darkbluegreen.gif TCP/IP ÇÁ·ÎÅäÄÝ Åë½Å

square02_darkbluegreen.gif 16SE/8DIFF 16-bit ¾Æ³¯·Î±× ÀÔ·Â

square02_darkbluegreen.gif 256SE/128DIFF È®Àå °¡´É(AI-MAX)

square02_darkbluegreen.gif ÃÖ´ë 45kHz »ùÇøµ

square02_darkbluegreen.gif 2 12-bit ¾Æ³¯·Î±× Ãâ·Â

square02_darkbluegreen.gif 16 µðÁöÅÐ Programmable I/O ä³Î

square02_darkbluegreen.gif 1 16-bit °í¼Ó Ä«¿îÅÍ(250kHz)

square02_darkbluegreen.gif 1 RS-232 I/O ±âº» ³»Àå

square02_darkbluegreen.gif 1 RS-485 I/O ¿É¼Ç

 Áö¿ø ¼ÒÇÁÆ®¿þ¾î

square02_darkbluegreen.gif NetLink - DOS, Windows 3.x, 95/95/NT & UNIX µå¶óÀÌºê ¶óÀ̺귯¸®

square02_darkbluegreen.gif LabVIEW - LabVIEW VI ¶óÀ̺귯¸®

square02_darkbluegreen.gif COM Æ÷Æ® µå¶óÀ̺ê - °¡»ó COM Æ÷Æ® µå¶óÀ̺ê

Å͹̳ΠÆÐ³Î ¿É¼Ç

´Ù¾çÇÑ ÇüÅÂÀÇ Å͹̳Π¿É¼ÇÀ» ¿¬°áÇÏ¿© »ç¿ë °¡´É



¸ð µ¨ ¹ø È£

ºñ       °í

EDAS-1031E-1

16-bit Multifunction EDAS

EDAS-1031E-2

16-bit Multifunction EDAS, with RS-485 I/O

EDAS-1031E-1G

16-bit Multifunction EDAS, OEM Version

EDAS-1031E-2G

16-bit Multifunction EDAS, with RS-485 I/O, OEM Version

EDAS-1031E-SK1

16-bit Multifunction EDAS Starter Kit(90-120VAC)

EDAS-1031E-SK2

16-bit Multifunction EDAS Starter Kit(230VAC)



EDAS-1031E ½Ã¸®Áî Çϵå¿þ¾î »ç¾ç

Parameter

Conditions

Specification

Analog Inputs

Number of Channels



Single-ended

Differential

16

8

Resolution



16 bits (1 part in 65,536)

Voltage Ranges





Gain = 1

Gain = 10

Gain = 100

0 - 10V, ±10V

0 - 1V, ±1V

0 - 0.1V, ±0.1V

Overvoltage Protection

Power on or off

-40 V to +55 V

Sampling Rate



Gain = 1

Gain = 10 or 100

40kHz

2.5kHz

Gain Accuracy



Gain = 1 or 10

Gain = 100

0.009%

0.025%

Offset Voltage

Referenced to input

150 ¥ìV

Input Impedance



Differential mode

Common mode

1010 ohms / 100 pF

1010 ohms / 110 pF

Common Mode Range

Vcm = Vrange -(Vdiff * Gain)/2

±10V (DC + Peak AC) min

Common Mode Rejection

60Hz, 100 ohm imbalance

-90dB

Noise

RMS, Gain = 1

2.0 LSB

Linearity Error

Full-scale range

0.005% (3.0 LSB)

Analog Outputs

Number of Channels



2

Resolution



12 bits (1 part in 4096)

Voltage Ranges



±10V

Digital I/O

Number of Ports

8 channels (bits) per port

2, programmable as input or output

Input Levels



TTL-compatible (Schmitt Trigger)

Input Current



Port 0 (High Level/ Low Level)

Port 1 (High Level/ Low Level)

20¥ìA / 200¥ìA

5¥ìA / 5¥ìA

Output Levels



TTL compatible

Output Current



Port 0 (Source/Sink)

Port 1 (Source/Sink)

15mA/ 24mA

15mA/ 64mA

Counters

General Purpose

  Number of Channels

  Max Input frequency





TTL-level input

24-Bit

up to 16

250Hz

High Speed

  Number of Channels

  Max Input frequency





TTL-level input

16-Bit

1 (input only)

250kHz

TimeBase Generator

Type

Crystal-based

Rate Generator (32-bit)

Number



1

Resolution



125 ns

Output Frequency Range



0.001 Hz to 1 MHz

Serial Ports

RS-232

  Interface

  Communication

  Supply Voltages







3k ohm Load



DE-9

Serial Asynchronous, ASCII

±6V TX and RX active

RS-485 (EDAS-1031E-2A)

  Interface

  Communication

  Isolation







1 Minute / 1 Second



3-wire screw terminal block

Serial Asynchronous, ASCII

1600 Vrms / 2000 Vrms

Network Interface

Type



Ethernet 10Base-T (RJ 45)

System Throughput

Unloaded network

8 kHz

Power

Voltage Range

AC , DC

15 to 28 VAC, 20 to 40 VDC

Current Requirements (*1)

24 VAC, No Load/24 VAC,
1A Load

350mA/650mA

Physical Characteristics

Size




9.0" D x 5.57" W x 1.5" H (aprx.)
22.28cmD x 17.78cmW x 3.81cmH

Operating Temperature Range



0¡É - 50¡É

All Specifications are typical at 25¡É unless otherwise noted.
Note (*1): The on-board power supply circuit can supply up to 1 Amp at 5VDC to termination panels through the 50-pin I/O connector.



EDAS-1031E Çϵå¿þ¾î »çÁø

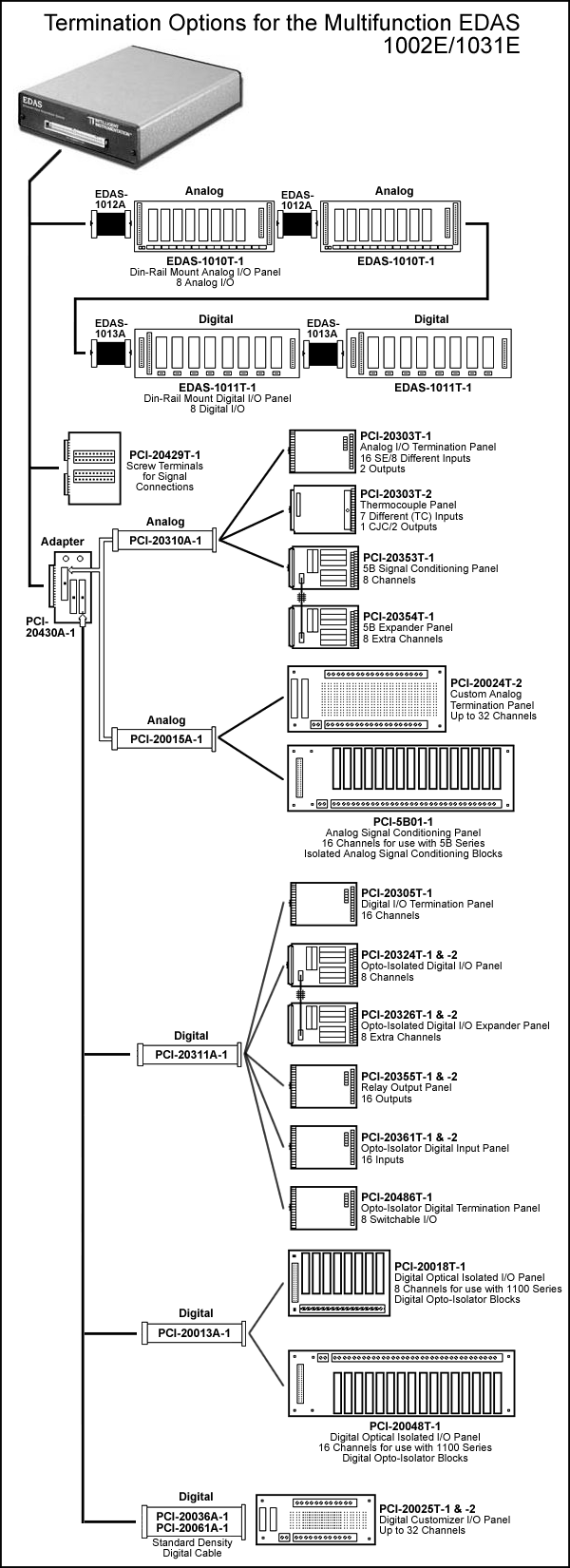

Multifunction EDAS Å͹̳Πº¸µå ¿¬°áµµ
