square02_darkbluegreen.gif Windows CE OS - Easy to develop   applications allowing third party add-ons,   and easy deployment into existing and   future IT infrastructures

square02_darkbluegreen.gif Open architecture positions systems to   take advantage of future technology

square02_darkbluegreen.gif Sealed 640 x 240 VGA display provides   flexible options for end users

square02_darkbluegreen.gif Ethernet connectivity - 10/100BaseT or   802.11 wireless



square02_darkbluegreen.gif Waterproof and dustproof NEMA-4/IP66 industrial case for wet/harsh environments

square02_darkbluegreen.gif Web-based remote management tools for easy deployment and management

square02_darkbluegreen.gif Easy application development using eMbedded Visual C++ and eMbedded Visual Basic
  (free from
Microsoft), or HTML scrip

Áö¿ø ¼ÒÇÁÆ®¿þ¾î

 LANpoint CE SDK/Demos



LANpoint CE Çϵå¿þ¾î »ç¾ç

System


Windows CE Operating System, v3.0, 16 MB RAM, upgradable, approximately 8 MB local storage, upgradable

Display

640 x 240 ½ VGA backlit LCD. Optional 640 x 240 backlit color LCD

Keyboard


Sealed elastomeric, 5 million cycle long-life industrial design, easily configured to custom requirements

Standard Keyboard Configurations

69-key QWERTY, customizable. Function keys are programmable and are visually cued to the lower edge of the display for use as soft keys/menu selectors

Case Design



Industrial NEMA-4/IP66 hose-down, dust-proof. Special seal designed for flush-mount into a surface, or mount in several different horizontal and vertical configurations

Networks Supported

Windows NT/2000, TCP/IP

Ethernet

10/100BaseT standard or optional RF Ethernet

Automatic ID
Interfaces


Wand emulation, undecoded laser port, slot reader port, 2 serial COM ports, mini-DIN6 PS/2 connector for external keyboard and keyboard port wedge readers

Symbologies
Decoded


Code 3 of 9, (Mod 43 and full ASCII), Interleaved 2 of 5, Code 128, UPC/EAN, codabar, Code 16K, Industrial 2 of 5, Matrix 2 of 5, code 11, MSI Plessey, Plessey

Physical


Base Model: 14.5"W x 9.7"H x 3.5"D. Models with optional integral AutoID: 16.25" W x 9.7" H x 3.5" D

Temperature

Operating: 0 to 50¡É , -20 to 50¡É with optional heater. Storage: -20 to 60¡É

Power Requirements

15V to 24V AC or DC, 1.2A

Connectors







Power, Ethernet 10/100BaseT, COM1, COM2, external PS/2 keyboard, PS/2 mouse, undecoded laser, wand/wand emulation barcode, slot reader, PCMCIA Type I/II/III, battery backup, +3.3 VDC +5VDC and +12VDC accessory outputs, DRAM memory slot, bayonet mounting for external IEEE802.11 RF Ethernet antenna, external VGA monitor, digital I/O (optional). All connectors are internal to the unit and positive-locking for vibration protection

PCMCIA Card Slots

One type I/II/III

Network Management Software

SNMP; remote management capabilities provided by browser-based terminal manager

Status LEDs


Eight LEDs visible on face of terminal - power, Ethernet link, battery power, low battery, plus four user-definable/programmable LEDs

Off-line Storage


Approximately 8 MB data storage for local files and/or off-line operation, upgradable

OPTIONS

IEEE802.11 Wireless Ethernet


IEEE802.11 DSSS Wireless Ethernet PCMCIA radio available from Intelligent Instrumentation; third party PCMCIA radios may be used for other wireless connectivity, subject to the manufacturer's Windows CE driver availability

Battery Backup

AA-style pack, 0.5 Amp-hour, recharged automatically by built-in recharger

Digital I/O



8 optically-isolated digital inputs plus your choice of 2, 4, or 8 mechanical relay digital outputs rated for 2 Amp at 250 Volts. Digital inputs provide counter capability to 50 counts per second

Extended Temperature

-20¡É to 50¡É operating temperature with optional heater

Integral AutoID

Mag stripe slot reader, Infrared barcode slot reader, visible red barcode slot reader

Coming Soon...

RFID proximity card reader, smart card reader



¸ð  µ¨  ¹ø  È£

ºñ        °í

LP4wxyz-abb

LANpoint CE Fixed-Mount Terminal - includes installation guide

Default ¿É¼Ç

Ãß°¡ ¿É¼Ç

w : Ethernet Connection Option

0 = 10/100BaseT Ethernet

1 = 11 Mbps DSSS Wireless Ethernet IEEE 802.11b (TBD)

x : Integral Display Type

0 = 1/2 VGA Monochrome
      LCD



1 = 1/2 VGA Color LCD
2 = 1/2 VGA Monochrome LCD with Touch Screen
3 = 1/2 VGA Color LCD with Touch Screen

y : Display Heater Type

0 = no display heater

1 = display heater included (TBD)

z : Integral modular AutoID option

0 = no installed internal
      AutoID module



4 = integral visible red barcode slot reader installed
5 = integral infrared barcode slot reader installed
6 = integral magnetic stripe slot reader installed

a : Digital I/O Option

0 = no digital I/O



1 = 8 isolated digital inputs and 8 fused mechanical relay outputs
2 = 8 isolated digital inputs and 4 fused mechanical relay outputs
3 = 8 isolated digital inputs and 2 fused mechanical relay outputs

bb : Keyboard Option

00 = standard QWERTY keyboard

LP40000-000 = base terminal

EXAMPLE: LP40100-300 is a LANpoint CE terminal, 10/100 BaseT Wired Ethernet, with 1/2 VGA Color Screen, no display heater, no integral AutoID module, with 8 input & 2 output I/O option, and standard QWERTY layout keyboard.



LANpoint CE Starter Kits

square02_darkbluegreen.gif LANpoint CE Starter Kit (LPC-SK40000-US (120V) or LPC-SK40000-IN (240V))

- Terminal is not included -

square02_darkbluegreen.gif PCMCIA/CF (compact flash) adapter

square02_darkbluegreen.gif AA-style battery pack (TMA017

square02_darkbluegreen.gif 10/100 BaseT (Cat 5) cable - 7'

square02_darkbluegreen.gif LANpoint CE manual set - installation,
   maintenance, and   developer's
   manual

square02_darkbluegreen.gif Flush-mount ki

square02_darkbluegreen.gif Choice of power supply:

  • US - 120V(LPC-SK40000-US)
  • IN - 240V(LPC-SK4000-IN)

square02_darkbluegreen.gif Programming example diskette

square02_darkbluegreen.gif Reversible desk/wall mount

square02_darkbluegreen.gif Barcode wand (BCW-WA6100-6)



LANpoint ¾Ç¼¼¼­¸® <°ü·Ã ¾Ç¼¼¼­¸® ±×¸² º¸±â>

¸ð  µ¨  ¹ø  È£

ºñ    °í

LPA060

Protective rear cover



Reversible wall/desk mount enclosure for base unit

LPP004

24V power adapter, 90-120V AC

LPA063

Reversible desk/wall-mount legs with protective rear cover

TMA017

Battery pack, AA-style, 0.5 Amp-hr

LPP005

24V power adapter, 220V AC

LPA061

NEMA4/IP66 flush-mount kit



PCMCIA/CF adapter



External beeper



LANpoint CE manual set - installation & maintenance manual, developer's manual, and barcode decoder manual

EDAS-1007A-1

10/100 BaseT (Cat 5) cable - 7'

BarCode Scanner

BCL-LS1000

Economy laser scanner, undecoded

BCL-LS1004

Economy laser scanner, decoded

BCL-LS3200


Laser scanner for demanding environments-extended temperature range 0¡É to 50¡É (-22¢µ to 122¢µ)undecoded

BCL-LS3603

Fuzzy logic scanner, ideal for reading poor quality barcodes, decoded

BCL-LS4000

Ergonomic laser scanner, undecoded

BCL-LS4004

Ergonomic laser scanner, decoded

BCL-LT1800

Laser touch scanner for close range (0-5 inches), undecoded

BCL-LT1810

Laser touch scanner for close range (0-5 inches), decoded

CCD-WA3800

Non-contact industrial CCD scanner

SA00380-015

15 foot cable for Welch-Allyn CCD & laser scanners (xxx-WAxxxx)

BarCode Wands

BCW-WA6100-12

12 mil visible red wand (6 ft. cable)

BCW-WA6200-6

6 mil IR wand (6 ft. cable)

BCW-WA6100-6

6 mil visible red wand (6 ft. cable)

BCW-WA6100-6L20

6 mil visible red wand (20 ft. cable)

Slot Readers

BCS-KBW-BE


Barcode infrared slot reader, programmable, PS/2 connector connector for keyboard port

BCS-KBW-BE6


Barcode infrared slot reader, programmable, PS/2 connector connector for keyboard port (6 ft. cable)

BCS230-001

Barcode slot reader, 7.5 mil Red - 5 pin

BCS231-001

Barcode slot reader, 7.5 mil IR - 5 pin

MSR-KBW-TRK12BE

Magnetic stripe reader track 1 & 2 with keyboard wedge, PS/2 connector

MSR-KBW-TRK2BE

Magnetic stripe reader track 2 only, with keyboard wedge, PS/2 connector

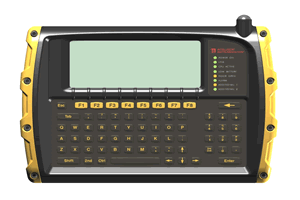

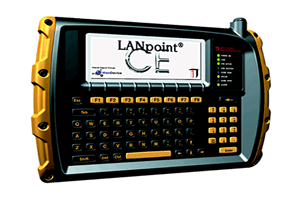

 LANpoint CE »çÁø



NEMA/IP Number Definitions

NEMA-#:

1 : General Purpose (Indoor)

     2 : Water Drip Proof (Indoor)

   3R : Dust Tight, Rain Tight, and Ice Resistent (Outdoor)

     4 : Water Tight and Dust Tight (Indoor/Outdoor)

  4X : Water Tight, Dust Tight, and Corrosion Resistent (Indoor/Outdoor)

     9 : Indoor Hazardous Locations (Not Applicable to EMS Equipment)

   12 : Industrial Use - Dust Tight and Drip Tight (Indoor)

13 : Oil Tight and Dust Tight (Indoor)

Example: NEMA-4 is water tight and dust tight indoor and outdoor.



IP##:

(First #)
0 : No Special Protection

1 : Protected Against Solid Objects>50 mm
     in Diameter

2 : Protected Against Solid Objects > 12 mm
     in Diameter

3 : Protected Against Solid Objects > 2.5 mm
     in Diameter

4 : Protected Against Solid Objects > 1 mm
     in Diameter

5 : Dust Protected

6 : Dust Tight

(Second #)
0 : No Special Protection
1 : Protected Against Dripping Water

2 : Protected Against Dripping Water When
    Tilted Up to 15¡É From Normal Position

3 : Protected Against Spraying Water

4 : Protected Against Splashing Water

5 : Protected Against Water Jet Spray

6 : Protected Against Heavy Jet Spray

7 : Protected Against the Effects of Immersion

8 : Protected Against Submersion

Example: IP54 is dust protected, and protected against splashing water.
