Entivity Studio Software



The Complete PC-Based
Control Solution

Entivity Studio 7.0 support

for the EDAS CE


Entivity Studio

 Entivity Studio¢â provides automation professionals with a complete array of solutions that lowers costs and increases productivity by accelerating the development, deployment and operation of manufacturing systems.



  Entivity Studio is the most advanced control software solution incorporating industry standard drawing technology (from the power of Microsoft Visio) for control logic and HMI (Human Machine Interface)



Entivity Studio Benifits

square02_darkbluegreen.gif Rapid Development

  By using Microsoft Visio for logic and HMI development, Studio ensures faster development and fewer problems. Time is further reduced by scalability built right into the product allowing the development of a single project to run on the full range of Microsoft operating systems (Microsoft XP, 2000, NT, Embedded NT, CE).



  Studio works like programs you use today, so you can draw on the skills you already have and build on work you've already done. Getting started is easy because Studio shares the familiar Microsoft Office toolbars and menus.



square02_darkbluegreen.gif Increased Throughput

  Studio has built-in functions for quantitative benchmarking of equipment, processes, shifts, and plants. The seamless integration of productivity enhancement tools with control and communications optimizes your manufacturing systems. You can easily implement these tasks:

    square02_darkbluegreen.gif Capacity planning

    square02_darkbluegreen.gif Equipment utilization studies

    square02_darkbluegreen.gif Preventative maintenance plans

    square02_darkbluegreen.gif New and existing system optimization



square02_darkbluegreen.gif Connectivity from Shop Floor to Top Floor

  Easily connect and transfer data throughout the factory. Entivity Studio provides a full range of enterprise connectivity to these information systems:

    square02_darkbluegreen.gif SCADA

    square02_darkbluegreen.gif ERP

    square02_darkbluegreen.gif SPC

    square02_darkbluegreen.gif MES



  Many connectivity combinations are allowed through these networks:

    square02_darkbluegreen.gif COM.DCOM

    square02_darkbluegreen.gif SQL interface to ODBC databases

    square02_darkbluegreen.gif OPC 2.0 client and server

    square02_darkbluegreen.gif DDE servers



  Intelligent I/O networks are automatically identified and provide instant configuration and status capability.



Entivity Studio Features

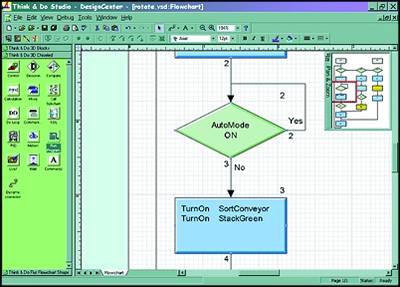

square02_darkbluegreen.gif DesignCenter for Control

Control Flowchart Stencils include:

    square02_darkbluegreen.gif Action Blocks : Capture, Control, Move, Run Program

    square02_darkbluegreen.gif Decision Blocks : Compare, Decision

    square02_darkbluegreen.gif Branch/Merge : Do Loop, Wait

    square02_darkbluegreen.gif Exception Blocks : Enable, Freeze

    square02_darkbluegreen.gif Subcharts (Subroutine) : Call, Begin, Return

    square02_darkbluegreen.gif Comment Blocks : Comment

    square02_darkbluegreen.gif Special : Motion, PID, SQL Express, Live!, Calculation, Communication

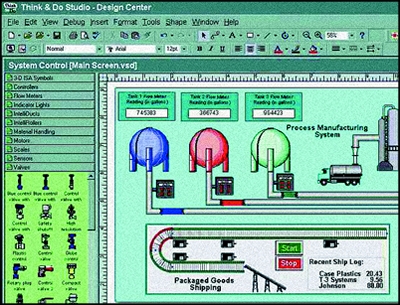

square02_darkbluegreen.gif DesignCenter for HMI

Studio's DesignCenter provides users extensive drawing capabilities with 46 categories of automation-specific stencils that include over 1500 shapes. Studio's UDE quickly allows to the tag name database for database for (HMI) development. Main features include:

    square02_darkbluegreen.gif Automation Shapes : basic, ISA, manufacturing equipment, plant equipment, control

      hardware and more

    square02_darkbluegreen.gif Object Animation : change in size and/or color

    square02_darkbluegreen.gif Operator Input : clickable/touchable objects such as buttons, function keys, data input

       fields, load recipe, and screen control

    square02_darkbluegreen.gif Trend Object: Plots up to four variables with configurable colors and scales

    square02_darkbluegreen.gif Transparency : Ability to show/hide a shape based on logical expressions

    square02_darkbluegreen.gif Data Entry Keypad with a runtime pop-up window

    square02_darkbluegreen.gif Supports drag and drop Active X controls and VBA scripts

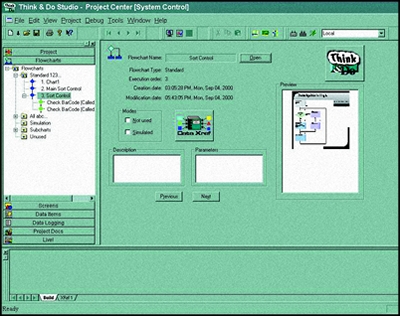

square02_darkbluegreen.gif Project Center

From Studio's ProjectCenter¢â, developers organize all aspects of their projects including control flowcharts, HMI screens, I/O communications, common tag name database, debugging tools, productivity tools, OPC Server, DDE Server and all related project documents.



Highlights include:

    square02_darkbluegreen.gif Familiar tree views for flowcharts and HMI screens

    square02_darkbluegreen.gif Shortcut bars for tool access

    square02_darkbluegreen.gif User-definable folders for improved readability

    square02_darkbluegreen.gif Automatic preview of flowchart and HMI drawings

    square02_darkbluegreen.gif Direct access to Studio's common tag name database

    square02_darkbluegreen.gif Instant cross-referencing for tag usage through an application, including both logic and
      HMI screens

    square02_darkbluegreen.gif Management of supplemental project documentation (such as Word documents, CAD

      drawings, project charts, etc.)

    square02_darkbluegreen.gif One-click backup and archiving of complete projects including supplemental

      documentation

square02_darkbluegreen.gif Connectivity Center

  Studio's ConnectivityCenter¢â provides support for I/O networks, intelligent networks, serial devices, motion controllers and specialty modules from many vendors.



Highlights include:

    square02_darkbluegreen.gif Auto-discovery of I/O system devices

    square02_darkbluegreen.gif Draws a graphical picture of the I/O network configured

    square02_darkbluegreen.gif Allows Point & Click I/O mapping to tag name database

    square02_darkbluegreen.gif Allows ability to monitor "live" inputs and turn on outputs to test wiring independent of

      control logic

    square02_darkbluegreen.gif Provides product data sheets for most drivers for quick reference

square02_darkbluegreen.gif Enterprise Integration
  Entivity Studio applications integrate plant floor information into enterprise applications through these systems:

    square02_darkbluegreen.gif Built-in SQL database interface

    square02_darkbluegreen.gif Fully implemented OPC 2.0 client and server

    square02_darkbluegreen.gif DDE Server

    square02_darkbluegreen.gif Integrated DCOM support

    square02_darkbluegreen.gif Support for Microsoft.NET for manufacturing initiative

    square02_darkbluegreen.gif Support for Microsoft DNA for manufacturing architecture



square02_darkbluegreen.gif Runtime Monitoring and Debugging Features

    square02_darkbluegreen.gif AppTracker Debugging Tool provides Custom Watch Windows, Data Modification Tools

      (Force, Set, ON, OFF), ability to modify projects online for testing, and Step Flowchart

      Execution.

    square02_darkbluegreen.gif EasyTrac¢â Tool colors flowchart's execution path for debugging

    square02_darkbluegreen.gif Simulation flowcharts for application testing

    square02_darkbluegreen.gif Remote and RAS programming



square02_darkbluegreen.gif Special Control Function Blocks

  Motion Block integrates motion control with diagnostics.

  Functions Supported:

    square02_darkbluegreen.gif Moves : Absolute move, Incremental move, Homing functions, Blended moves,

      Position-triggered moves, Master/Slave moves, up to 4-axes coordinated moves,

      2 axes arc coordinated moves, simultaneous multi-axes coordinates.

    square02_darkbluegreen.gif Stop/Estop

    square02_darkbluegreen.gif Velocity change on the fly, Camming, SERCOS



square02_darkbluegreen.gif PID Block

    square02_darkbluegreen.gif Supports up to 64 loops

    square02_darkbluegreen.gif Independent sample rates

    square02_darkbluegreen.gif Manual/automatic/cascade loop capability

    square02_darkbluegreen.gif Bumpless transfer mode

    square02_darkbluegreen.gif Position or velocity algorithms

  SQL Express Block offers a complete set of dialog to construct SQL queries for database

accesses. Supports OLE DB provider such as Microsoft SQL Server, Microsoft Access, Oracle

and ODBC.



square02_darkbluegreen.gif Productivity Tools

  Provides built-in monitoring of machine downtime and cycle time and then can automatically

generate actionable information displays, including: Capacity Utilization, Downtime Timeline,

Downtime Histogram, Cycle-time Timeline, and Cycle-time Histogram.



square02_darkbluegreen.gif Calculation: Math and Data Operations

    square02_darkbluegreen.gif Math Functions : +, -, /. *. \, ^, mod, (,), (), =, abs, cos, exp, log, log 10, round, sin,

      sqr, tan, trunc

    square02_darkbluegreen.gif Bitwise Operators : and, or, not, xor, <, >

    square02_darkbluegreen.gif String Functions : Find, Mid, Left, Right, Length



Hardware Specifications

square02_darkbluegreen.gif Development Hardware Platform Requirements

    square02_darkbluegreen.gif CPU: Pentium III 800 MHz or faster

    square02_darkbluegreen.gif Memory: 256MB RAM Minimum

    square02_darkbluegreen.gif Certified Windows 2000/NT 4.0

    square02_darkbluegreen.gif 300 MB hard disk space

    square02_darkbluegreen.gif Color monitor: 32MB video adapter, 1024x768 min display

    square02_darkbluegreen.gif Mouse, keyboard and CD-ROM

square02_darkbluegreen.gif Development Runtime Platform Requirements

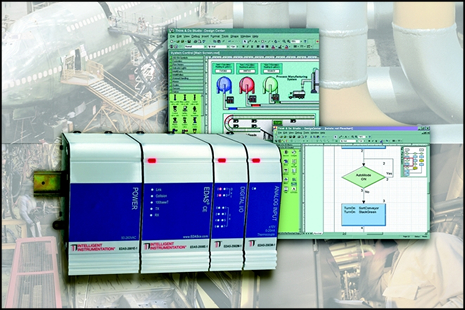

    square02_darkbluegreen.gif EDAS CE Base Unit, with Entivity Studio Runtime: (EDAS-2000E-3)
