APCI-2032 Isolated Digital Output Board



하드웨어 특징

square02_darkbluegreen.gif PCI Bus 인터페이스

square02_darkbluegreen.gif 32 Isolated Output Channels, 10 to 36V

square02_darkbluegreen.gif Output Current per Channel 500mA

square02_darkbluegreen.gif Diagnostic Report through Status Register

  in case of Short-circuit, Overtemperature,

  Voltage drop or Watchdog

square02_darkbluegreen.gif Programmable Watchdog for the reset of

  the Outputs to "0"

square02_darkbluegreen.gif Function Released through Software

square02_darkbluegreen.gif Interrupt Triggered through Error

square02_darkbluegreen.gif At Power/ON the Outputs are reset to "0"


응용 분야

square02_darkbluegreen.gif ON/OFF Monitoring of Relays, Lamps ...

square02_darkbluegreen.gif Signal Switching

square02_darkbluegreen.gif Interface to Electromechanical Relay

square02_darkbluegreen.gif Automatic Test Equipment

square02_darkbluegreen.gif ON/OFF Monitoring of Motors, Lights ...

square02_darkbluegreen.gif Watchdog Timer

square02_darkbluegreen.gif Machine Interfacing, ...

Safery Features

square02_darkbluegreen.gif Optical Isolation 1000V

square02_darkbluegreen.gif Protection against Fast Transients(Burst),

  Overvoltage, Electrostatic Discharge and

  High-Frequency EMI

square02_darkbluegreen.gif Self-Resetting Fuse(Electronic Fuse)

square02_darkbluegreen.gif Overtemperature & Overvoltage Protection

square02_darkbluegreen.gif 24V Power Outputs with Protection

  Diodes and Filters

square02_darkbluegreen.gif Output Capacitors Minimise

  Electromagnetic Emissions

square02_darkbluegreen.gif External 24V Supply Screened through

  a Protection Circuitry

square02_darkbluegreen.gif Shut-down Logic when the External

  Supply Voltage Drops Below 5V


지원 소프트웨어

square02_darkbluegreen.gif Real Time Drivers :

  - Windows XP/2000/NT/98(ADDIPACK)

square02_darkbluegreen.gif LabVIEW 5.01

square02_darkbluegreen.gif Samples programs :

  - Microsoft VC++ 5.0

  - Borland C++ 5.01

  - Visual Basic 5.0

  - Delphi 4.0

square02_darkbluegreen.gif On request :

  - LabWindows/CVI

square02_darkbluegreen.gif In Preparaion :

  - Driver for Linux kernel version 2.4.2

square02_darkbluegreen.gif ADDIPACK Functions :

  - Digital Output

  - Interrupt

  - Watchdog


CE Certification

square02_darkbluegreen.gif EN 61326


모 델 번 호

비       고


32 Isolated Digital Output Board, 24V



Screw Terminals Board, LED Status Dispaly


Screw Terminals Board, LED Status Dispaly, DIN-rail


3-row Screw Terminals Board, LED Status Dispaly, DIN-rail


Relay Output Board, DIN-rail, Cascadable


Standard Shielded, Twisted pairs Round 케이블, 2m/5m


Same as ST010, for High Currents


Cable between APCI-2032 and PX8500, Shielded Twisted pairs, 2m


Round Cable between two PX8500-G, Shielded, 2m


Ribbon Cable for Cascading two PX8500


APCI-2032 하드웨어 사양



Digital Output

Number of Channels


Optical Isolation


Through optical couplers, 1000V

from the PC to the Peripheral

Output Type

High-Side(load at ground) according IEC 1131-2

Nominal Voltage


Supply Volatge

10 to 36V, min 5V(through front connector)

Max. Current for 32 Outputs

6A typ.

Output Current/ Channels

500mA typ.

Short-Circuit Current/Output

Shut-Down at 24V, RLoad<0.1



RDS ON Resistance

0.4 Max.

Switch-On Time

I out = 0.5A, Load = Resistor : 100

Switch-Off Time

I out = 0.5A, Load = Resistor : 60


170 (output driver)

Temperature Hysteresis

20 (output driver)


Shut-Down Logic


When 24V ext. supply volatge drops below 5V:

the outputs are switched off.


Pin 19 : Status Bit or Interrupt to the PC


8-bit programmable, 20ms to 5s in steps of 20ms

Noise Immunity

Test Level




- ESD: 4kV

- Field: 10V/m

- Burst: 4kV

- Conducted radio interferences: 10V

Physical & Environmental Conditions

Dimensions approx.

131 x 99 mm

System Bus

PCI 32-bit 5V acc. to specification 2.1(PCISIG)

Space Required

short board, 1 PCI slot

Operating Voltage

+5V, ±5% from the PC

Current Consumption

230mA ±10% Typ.

Front Connector

37-pin SUB-D male connector

Temperature Range

0 to 60 (with forced cooling)

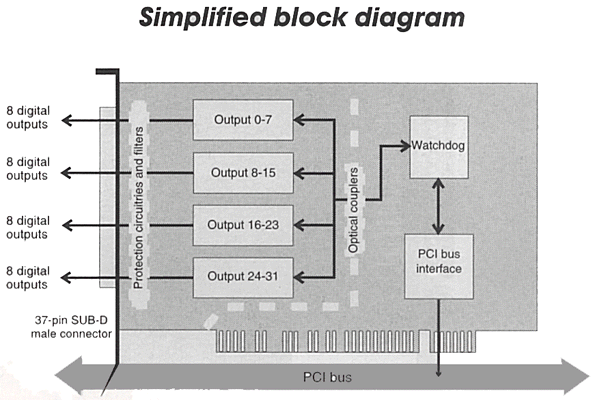

APCI-2032 보드 Block Diagram


Protection Circuit

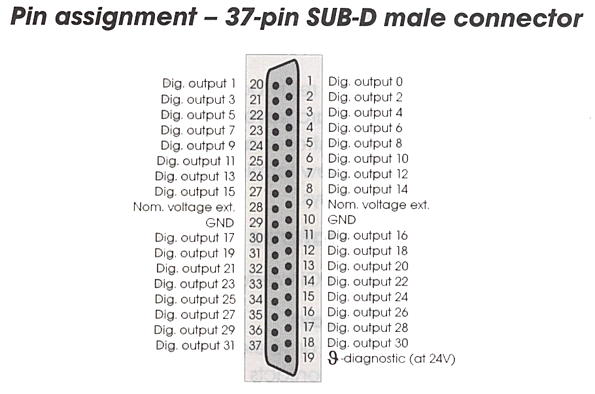

APCI-2032 Connector

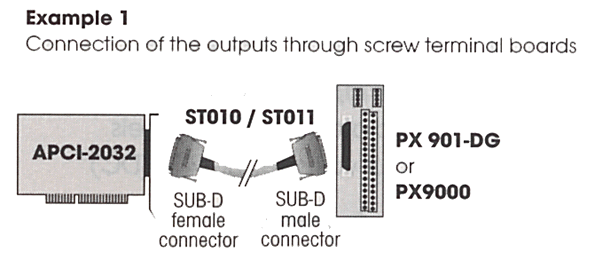

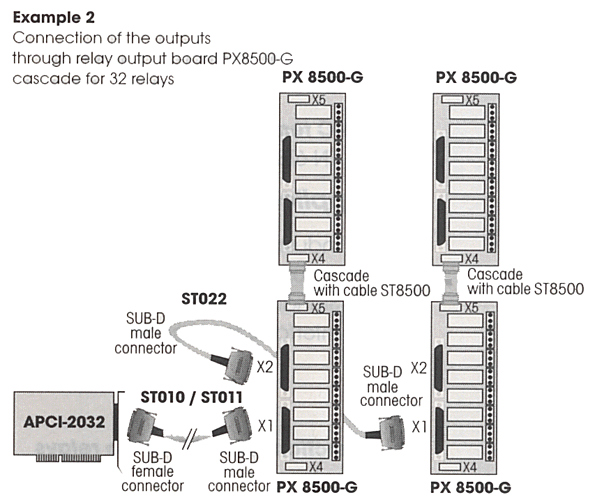

APCI-2032 터미널 보드 연결도
