APCI-1564 Isolated Digital I/O Board





Çϵå¿þ¾î Ư¡

square02_darkbluegreen.gif PCI Bus ÀÎÅÍÆäÀ̽º



Input Channels

square02_darkbluegreen.gif 32 Isolated Input Channels, 24V,

  Include 16 Interrupible & 4 Fast Counter

square02_darkbluegreen.gif Input Channels organised in 4 groups of

  8 Channels each group has its own GND.

square02_darkbluegreen.gif Voltage Reversal Protection

square02_darkbluegreen.gif All Inputs are Filtered



Output Channels

square02_darkbluegreen.gif 32 Isolated Output Channels, 10 to 36V

square02_darkbluegreen.gif Output Current per Channel 500mA

square02_darkbluegreen.gif At Power/ON the Outputs are reset to "0"

square02_darkbluegreen.gif Self-Resetting Fuse(Electronic Fuse)

square02_darkbluegreen.gif Overtemperature & Overvoltage Protection

square02_darkbluegreen.gif 24V Power Outputs with Protection

  Diodes and Filters

square02_darkbluegreen.gif Special Output Capacitors Minimise

  Electromagnetic Emissions

square02_darkbluegreen.gif External 24V Supply Screened through

  a Protection Circuitry

square02_darkbluegreen.gif Shut-down Logic when the External

  Supply Voltage Drops Below 5V









Safery Features

square02_darkbluegreen.gif Optical Isolation 1000V

square02_darkbluegreen.gif Interrupt Triggered through watchdog,

  Counter, Timer, Error

square02_darkbluegreen.gif Protection against Fast Transients(Burst),

  Overvoltage, Electrostatic Discharge and

  High-Frequency EMI

square02_darkbluegreen.gif Seperate Grounds for Input & Output

  Channels



Áö¿ø ¼ÒÇÁÆ®¿þ¾î

square02_darkbluegreen.gif Real Time Drivers :

  - Windows XP/2000/NT/98

square02_darkbluegreen.gif LabVIEW 5.01

square02_darkbluegreen.gif Samples programs :

  - Microsoft VC++ 5.0

  - Borland C++ 5.01

  - Visual Basic 5.0

  - Delphi 4.0

square02_darkbluegreen.gif On request :

  - LabWindows/CVI

square02_darkbluegreen.gif In Preparaion :

  - Driver for Linux kernel version 2.4.2

square02_darkbluegreen.gif ADDIPACK Functions

  - Digital Input

  - Digital Output

  - Interrupt

  - Watchdog

  - Timer



CE Certification

square02_darkbluegreen.gif EN 61326



ÀÀ¿ë ºÐ¾ß

square02_darkbluegreen.gif Industrial I/O Control

square02_darkbluegreen.gif PLC connection

square02_darkbluegreen.gif Signal Switching

square02_darkbluegreen.gif Interface to Electromechanical Relay

square02_darkbluegreen.gif Automatic Test Equipment

square02_darkbluegreen.gif ON/OFF Monitoring of Motors, Lights ...

square02_darkbluegreen.gif Watchdog Timer

square02_darkbluegreen.gif Machine Interfacing, ...



¸ð µ¨ ¹ø È£

ºñ       °í

APCI-1564

64 Isolated Digital I/O Board, 24V

Accessories

PX901-D

Screw Terminals Board, LED Status Dispaly

PX901-DG

Screw Terminals Board, LED Status Dispaly, DIN-rail

PX9000

3-row Screw Terminals Board, LED Status Dispaly, DIN-rail

PX8500-G

Relay Output Board, DIN-rail, Cascadable

ST010/ST011

Standard Shielded, Twisted pairs Round ÄÉÀ̺í, 2m/5m

ST010-S

Same as ST010, for High Currents

ST021

Cable between APCI-1564 and PX8500, Shielded Twisted pairs, 2m

ST022

Round Cable between PX8500 and PX901, Shielded, 2m

ST8500

Ribbon Cable for Cascading two PX8500



APCI-1564 Çϵå¿þ¾î »ç¾ç

Parameter

Descriptions

Digital Input

Number of Channels







32(4 Groups of Channels with Common Ground :

1-8, 9-16, 17-24, 25-32)

0-3 : Fast Counter Input Channels, 500kHz

4-19 : Interruptible Input Channels

Isolation

Through Optical Couplers, 1000V

Normal Voltage

24V

Input Current at 24V

3.5mA typ.

Logic Input Level:

U nominal : 24V

UH Max.

30V / Current 9mA typ.

UH Min.

19V / Current 2mA typ.

UL Max.

17V / Current 0.6mA typ.

UL Min.

0V / Current 0mA typ.

Signal Delay

70 §Á ( at 24V )

Maximum Input Frequency

5 kHz ( at 24V )

Digital Output

Number of Channels

16, Isolated to 1000V

Output Type

High-Side(load at ground) according IEC 1131-2

Nominal Voltage

24V

Supply Volatge

10 to 36V, min 5V(through front connector)

Max. Current for 16/32 Outputs

3A typ./ 6A typ.

Output Current/Output

500mA typ.

Short-Circuit Current/Output

Shut-Down at 24V, RLoad<0.1§Ù



1.5A

RDS ON Resistance

0.4 §Ù Max.

Switch-On Time

I out = 0.5A, Load = Resistor : 120 §Á

Switch-Off Time

I out = 0.5A, Load = Resistor : 40 §Á

Overtemperature(Shut-Down)

170 ¡É(output driver)

Temperature Hysteresis

20 ¡É(output driver)

Safety

Shut-Down Logic



When 24V ext. supply volatge drops below 5V:

the outputs are switched off.

Diagnostic

Pin 19 : Status bit or Interrupt to the PC

Timer

3

Timer-Prog. Watchdog

8-bit, Prog. from 20ms to 5 s in steps of 20ms

Noise Immunity

Test Level







- ESD: 4kV

- Field: 10V/m

- Burst: 4kV

- Conducted radio interferences: 10V

Physical & Environmental Conditions

Dimensions approx.

171 x 99 mm

System Bus

PCI 32-bit 5V acc. to specification 2.1(PCISIG)

Space Required

1 PCI slot + 1 Additional slot Opening

Operating Voltage

+5V, ±5% from the PC

Current Consumption

310mA ±15mA typ.

Front Connector

37-pin SUB-D male connector for 32 Digital Outputs

Additional Connector

37-pin SUB-D male connector on Seperate bracket

for 32 Digital Inputs

Temperature Range

0 to 60 ¡É(with forced cooling)

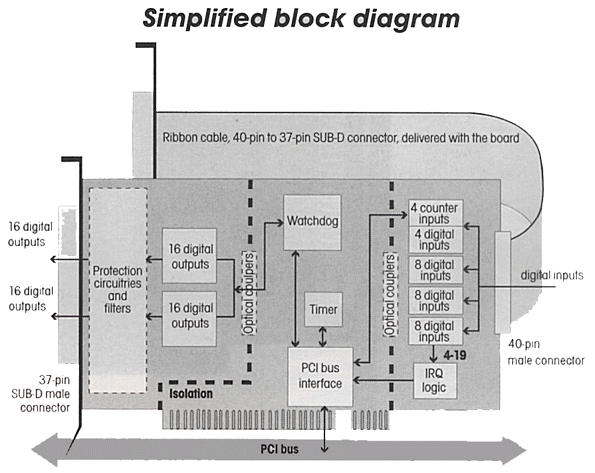

APCI-1564 º¸µå Block Diagram



APCI-1564 Protection Circuit

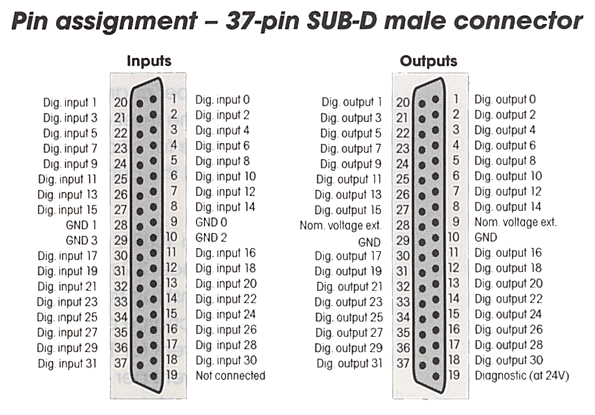

APCI-1564 Connector

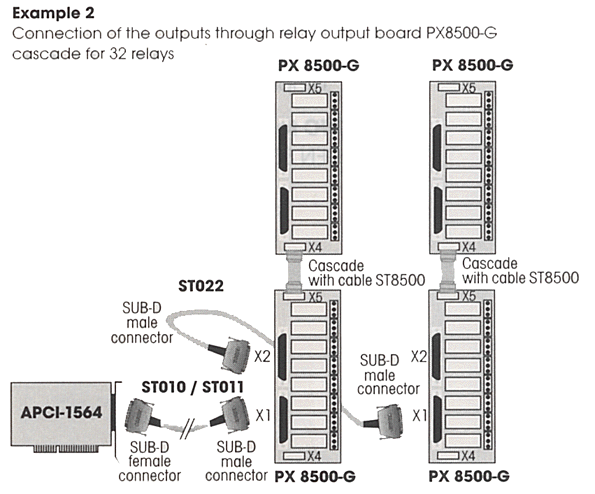

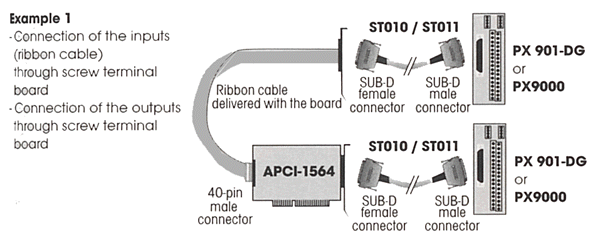

APCI-1564 Å͹̳Πº¸µå ¿¬°áµµ
