APCI-1516 Isolated Digital I/O Board





Çϵå¿þ¾î Ư¡

square02_darkbluegreen.gif PCI Bus ÀÎÅÍÆäÀ̽º



Input Channels

square02_darkbluegreen.gif 8 Isolated Input Channels, 24V,

  Include 14 Interrupible

square02_darkbluegreen.gif Voltage Reversal Protection

square02_darkbluegreen.gif All Inputs are Filtered



Output Channels

square02_darkbluegreen.gif 8 Isolated Output Channels, 10 to 36V

square02_darkbluegreen.gif Output Current per Channel 500mA

square02_darkbluegreen.gif At Power/ON the Outputs are reset to "0"

square02_darkbluegreen.gif Self-Resetting Fuse(Electronic Fuse)

square02_darkbluegreen.gif Overtemperature & Overvoltage Protection

square02_darkbluegreen.gif 24V Power Outputs with Protection

  Diodes and Filters

square02_darkbluegreen.gif Output Capacitors Minimise

  Electromagnetic Emissions

square02_darkbluegreen.gif External 24V Supply Screened through

  a Protection Circuitry

square02_darkbluegreen.gif Shut-down Logic when the External

  Supply Voltage Drops Below 5V

Safery Features

square02_darkbluegreen.gif Optical Isolation 1000V

square02_darkbluegreen.gif Protection against Fast Transients(Burst),

  Overvoltage, Electrostatic Discharge and

  High-Frequency EMI



Áö¿ø ¼ÒÇÁÆ®¿þ¾î

square02_darkbluegreen.gif Real Time Drivers :

  - Windows XP/2000/NT/98(ADDIPACK)

square02_darkbluegreen.gif LabVIEW 5.01

square02_darkbluegreen.gif Samples programs :

  - Microsoft VC++ 5.0

  - Borland C++ 5.01

  - Visual Basic 5.0

  - Delphi 4.0

square02_darkbluegreen.gif On request :

  - LabWindows/CVI

square02_darkbluegreen.gif In Preparaion :

  - Driver for Linux kernel version 2.4.2

square02_darkbluegreen.gif ADDIPACK Functions :

  - Digital Input

  - Digital Output

  - Watchdog



CE Certification

square02_darkbluegreen.gif EN 50082-2, EN 55011, EN 55022



ÀÀ¿ë ºÐ¾ß

square02_darkbluegreen.gif Industrial I/O Control

square02_darkbluegreen.gif PLC connection

square02_darkbluegreen.gif Signal Switching

square02_darkbluegreen.gif Interface to Electromechanical Relay

square02_darkbluegreen.gif Automatic Test Equipment

square02_darkbluegreen.gif ON/OFF Monitoring of Motors, Lights ...

square02_darkbluegreen.gif Watchdog Timer

square02_darkbluegreen.gif Machine Interfacing, ...









¸ð µ¨ ¹ø È£

ºñ       °í

APCI-1516

16 Isolated Digital I/O Board, 24V

Accessories

PX901-D

Screw Terminals Board, LED Status Dispaly

PX901-DG

Screw Terminals Board, LED Status Dispaly, DIN-rail

PX9000

3-row Screw Terminals Board, LED Status Dispaly, DIN-rail

PX8500-G

Relay Output Board, DIN-rail, Cascadable

ST010/ST011

Standard Shielded, Twisted pairs Round ÄÉÀ̺í, 2m/5m

ST010-S

Same as ST010, for High Currents

ST021

Cable between APCI-1516 and PX8500, Shielded Twisted pairs, 2m

ST022

Round Cable between PX8500 and PX901, Shielded, 2m



APCI-1516 Çϵå¿þ¾î »ç¾ç

Parameter

Descriptions

Digital Input

Number of Channels

8(Common Ground according to IEC 1131-2)

Normal Voltage

24V

Input Current at 24V

6mA typ.

Interrupt Comparision Logic

AND & OR mode, OR priority

Logic Input Level:



UH Max.

30V / Current 9mA typ.

UH Min.

19V / Current 2mA typ.

UL Max.

17V / Current 0.6mA typ.

UL Min.

0V / Current 0mA typ.

Isolation



Through Optical Couplers, 1000V

from the PC to the Peripheral

Signal Delay

70 §Á ( at 24V )

Maximum Input Frequency

5 kHz ( at 24V )

Digital Output

Number of Channels

8, Optically Isolated to 1000V through optical couplers

Output Type

High-Side(load at ground) according IEC 1131-2

Nominal Voltage

24V

Supply Volatge

10 to 36V, min 5V(through front connector)

Max. Current for 16 Outputs

3A typ.

Output Current/Output

500mA typ.

Short-Circuit Current/Output

Shut-Down at 24V, RLoad<0.1§Ù



1.5A

RDS ON Resistance

0.4 §Ù Max.

Switch-On Time

I out = 0.5A, Load = Resistor : 100 §Á

Switch-Off Time

I out = 0.5A, Load = Resistor : 60 §Á

Overtemperature(Shut-Down)

170 ¡É(output driver)

Temperature Hysteresis

20 ¡É(output driver)

Safety

Shut-Down Logic



When 24V ext. supply volatge drops below 5V:

the outputs are switched off.

Diagnostic(pin 19)



Interruptible Diagnostic at output overload, Overtemperature

or when the External 24V Voltage Supply Drops below 5V

Watchdog

Timer programmable, 20ms to 5s in steps of 20ms

Noise Immunity

Test Level







- ESD: 4kV

- Field: 10V/m

- Burst: 4kV

- Conducted radio interferences: 10V

Physical & Environmental Conditions

Dimensions approx.

131 x 99 mm

System Bus

PCI 32-bit 5V acc. to specification 2.1(PCISIG)

Space Required

short board, 1 PCI slot

Operating Voltage

+5V, ±5% from the PC

Current Consumption

210mA ±10% Typ.

Front Connector

37-pin SUB-D male connector

Temperature Range

0 to 60 ¡É(with forced cooling)

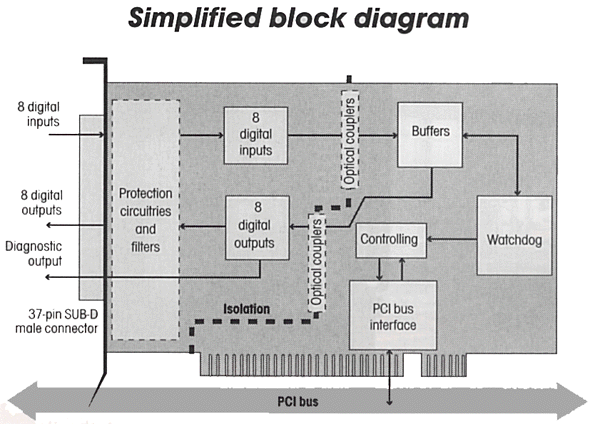

APCI-1516 º¸µå Block Diagram



Protection Circuit

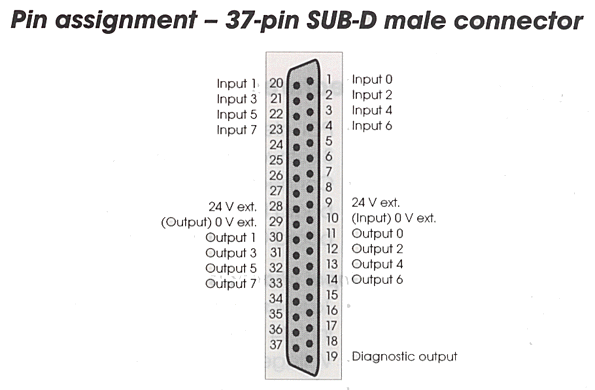

APCI-1516 Connector

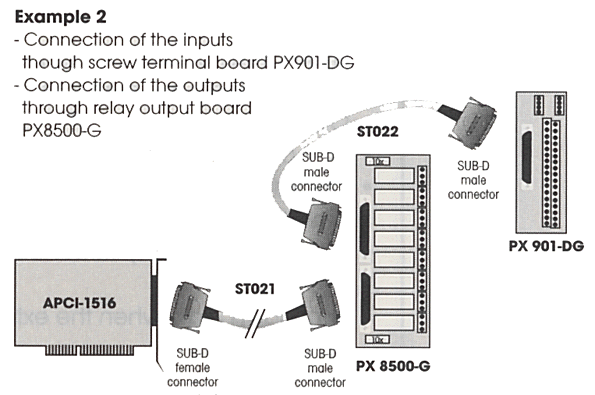

APCI-1516 Å͹̳Πº¸µå ¿¬°áµµ
