TIMEpoint Çϵå¿þ¾î »ç¾ç
BASE UNIT
Physical	9.5"W x 9.5"H x 5.0"D (24.1cmW x 24.1cmH x 12.7cmD)
Weight	8 lbs (3.6 kg)
Integral Display	2 x 40 LED backlit LCD, programmed via LPT1
Keyboard	Sealed membrane keypad
Keyboard Configuration	23 Key Numeric
Temperature	Operating: 0¡É to 50¡É Storage: -10¡É to 50¡É
Power Requirements	12 VDC @ 450 mA
Automatic ID Interfaces	2 bar code inputs or 1 bar code and 1 magnetic stripe, COM1
Symbologies Decoded	Code 3 of 9 (mod 43 and Full ASCII), Interleaved 2 of 5, Code 128, UPC/EAN/JAN, Codabar
Standard Slot Readers	7.5 mil visible red slot reader; 7.5 mil IR slot reader; Magnetic stripe reader (ABA Track 2)
External Keyboard Interface	XT, compatible with LPA011 keyboard adapter (Does not support simultaneous use of internal and external keyboards)
COM1 Port	PC compatible RS-232 COM port with all MODEM control lines, DE-9 male connector
Networks Supported (10Base-T Ethernet)	NDIS and ODI drivers support Windows NT, Novell NetWare, TCP/IP, Artisoft LANtastic, Microsoft LAN Manager
SmartPort	RS-232 port with RTS/CTS control, RJ-12 connector
OPTIONS
Digital I/O	2 digital inputs, optically isolated from 4 VDC to 24 VDC, wetting current supplied for use as dry contact inputs, 2 form C relay outputs driven to "on", "off" and momentary "on"
PCMCIA Memory Card	512 KB, 1 MB and 2 MB SRAM cards
Battery Back-up	C-Style pack, 1.8 Amp-hr; Charge time: 48 hours Operating time: 2 to 3 hours
Modems Supported	Cermatek CH1785B, 2400 baud



Aluminum Case ¸ð   µ¨   ¹ø   È£	Plastic Case ¸ð   µ¨   ¹ø   È£	ºñ            °í
TIMEpoint Computer--Base Unit (RS-232 COM1 only) Includes Installation Guide, Driver Diskette
LPC3611B	LPC3621B	TIMEpoint with a visible red slot reader
LPC3612B	LPC3622B	TIMEpoint with an IR slot reader
LPC3613B	LPC3623B	TIMEpoint with a magnetic stripe reader
TIMEpoint Computer with Digital I/O and SmartPort (No Ethernet) Includes Installation Guide, Driver Diskette
LPC3611B-IO	LPC3621B-IO	TIMEpoint with a visible red slot reader
LPC3612B-IO	LPC3622B-IO	TIMEpoint with an IR slot reader
LPC3613B-IO	LPC3623B-IO	TIMEpoint with a magnetic stripe reader
TIMEpoint Computer with Ethernet, Digital I/O and SmartPort Includes Installation Guide, Driver Diskette
LPC3611B-T	LPC3621B-T	TIMEpoint with a visible red slot reader
LPC3612B-T	LPC3622B-T	TIMEpoint with an IR slot reader
LPC3613B-T	LPC3623B-T	TIMEpoint with a magnetic stripe reader
TIMEstart Starter Kit Includes LPC3611B-T Unit, Power Supply, Modem (U.S. version only), PCMCIA Type I Memory Card, Battery Pack, External Beeper, XT Keyboard Adapter, CGA Adapter, Universal Null MODEM Cable, DOS, Manual Kit, Accessory Catalog, Sample ID Cards)
LPC-SK3611B-T01	LPC-SK3621B-T01	U.S. Version (110V Power Supply and Modem)
LPC-SK3611B-T02	LPC-SK3621B-T02	International Version (220V Power Supply, Modem not included)



TIMEpoint ¾Ç¼¼¼­¸® <°ü·Ã ¾Ç¼¼¼­¸® ±×¸² º¸±â>
LPA002	External Beeper
LPA011	Keyboard Adapter, XT, 5 pin to DIN connector
LPA012	Modem, 2400 baud (Cermetek Microelectronics, Model No. CH1785B, user-installed with FCC label)
LPA013	PCMCIA Type I Memory Card, 1M SRAM (Includes DOS (Bootable), Network Boot Drivers, T/A Access Demo Routines)
LPA042	PCMCIA Type I Memory Card, 2M SRAM (Includes DOS (Bootable), Network Boot Drivers, T/A Access Demo Routines)
LPA053	PCMCIA Type I Memory Card, 1M SRAM, Rechargeable Battery (Includes DOS (Bootable), Network Boot Drivers, T/A Access Demo Routines)
LPA052	PCMCIA Type I Memory Card, 2M SRAM, Rechargeable Battery (Includes DOS (Bootable), Network Boot Drivers, T/A Access Demo Routines)
LPA014	CGA Adapter, 10 pin to DE-9, 8" long
LPA015	Universal Null Modem Cable, DE-9 and DB-25 female at both ends
LPA023	RJ12 to DB25 Interface Cable
LPA017	Manual Kit (Includes Installation Guide, Starter Guide, Programmer's Guide, TCP/IP Guide, Distribution Disk)
LPP001	Power Supply, 12VDC, 110VAC, 1.2A
TM8443	Power Supply; 110VAC, 12VDC @ 1.2A
TM8443E	Power Supply, 12VDC, 220VAC, 1.2A
LPA022	Mounting Bracket for Power Supply (LPP001, TM8443 and TM8443E)
TMA018	Battery Pack, C-Style, 1.8 Amp-hr.
LPA048	Conduit hole drill kit, Plastic TIMEpoint
TMA063	Locking Wall Mounting Bracket, Plastic TIMEpoint
TMA053	Locking Wall Mounting Bracket, Aluminum TIMEpoint
CCD Scanners
CCD-WA3000	CCD without a trigger
Bar Code Laser Scanners
BCL-LS1004	Economy Laser Scanner, decoded
BCL-LS3603	Fuzzy Logic Scanner, ideal for reading poor quality barcodes, decoded
BCL-LS4004	Ergonomic Laser Scanner, decoded
BCL-LT1810	Laser Touch Scanner for close range (0-5 inches), decoded
BCL-WA5400	Laser Scanner, Mid-range Hand-held
BCL-WA5550	Visible Light Diode, Long- Range Hand-held
SA00380-015	15 foot cable for Welch-Allyn CCD & Laser Scanners (xxx-WAxxxx)
Bar Code Slot Readers (2nd, external, 9-pin)
BCS220	7.5 mil Red - 9 pin
BCS221	7.5 mil IR - 9 pin
Bar Code Wands
BCW-WA6100-6	6 mil Red (6 ft cable)
BCW-WA6100-6L20	6 mil Red (20 ft cable)
BCW-WA6100-12	12 mil Red (6 ft cable)
BCW-WA6200-6	6 mil IR (6 ft cable)

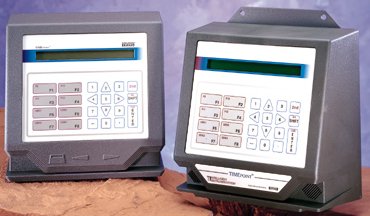

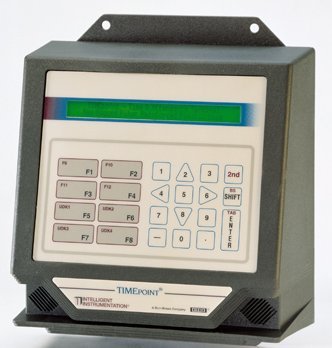

TIMEpoint's »çÁø
