프로그램 개발자를 위한 Escape Sequence에 따라 단말기를 제어할 수 있다. 표준 모드나 STAND-ALONE모드 명령어로 사용된다. 또한 호스트 시스템에서 단말기에 설정된 파라메타를 수정할 수 있다.

명령어 형태 : ESC<명령어>[<파라메타>] or [<데이터>]<terminator>

명령어	기 능
Standard 명령어
p	Request Transmit Buffer
r	Request Repeat Transmission
e	Echo String to Host
o	Clear Output Buffer to View Priority Host Message
u	Restore Output Buffer Cleared by "o"
t	Set Turnaround Delay
k	Keyboard Function Select Function Bank, Key Click, & Key Repeat
l	Keyboard Layout Assignment
m	Define Function Message
d	Display Characteristics Protected Line, Cursor, Auto Wrap, Width
f	Display Format, Backlight, Local Echo
i	Insert Function Message in Output Stream
w	Write to Protected Line
s	Set Peripheral Scanner Parameters
a	Auxiliary Module I/O
b	Save Configuration in Battery RAM
h	Control LED's and Outputs
c	Request Terminal Configuration
Stand-Alone 모드 명령어
G	Get Buffered Data
W	Write to Function/Variable Table
S	Start Validation Table Download
C	Continue Validation Table Download
E	End Validation Table Download
R	Read Function/Variable Table Entry
H	Acknowledge and Advance
Q	Set Time/Date

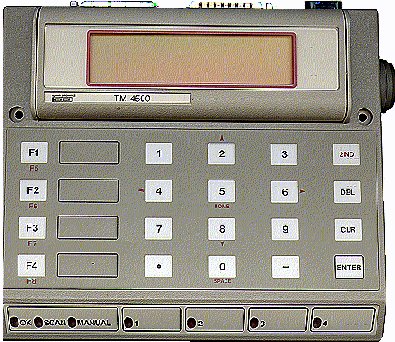

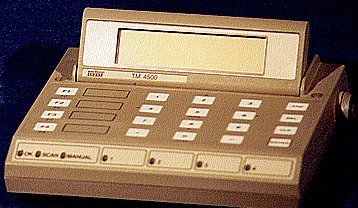

TM4500 하드웨어 사양
Display
Type	Liquid Crystal Dot Matrix
Number of Lines	2
Characters/Line	16
Character Matrix	5 x 7 Plus Cursor
Character Height	0.38"
Virtual Screen	1920 Characters
Attributes	Character Flash, Line Protect
Status Indicators	Two Cursor Fonts, "Output Pending" Symbol, Communication Error
Keyboard
Type	Polyester, Abrasion Resistant, Membrane
Number of Keys	20, Tactile Feedback
Actuation Force	400-500 Grams
Service Life	5 Million Operation Minimum
Programmable Function Keys
Function Memories	8
Storage Capacity	16 Characters per Memory
Keyboard Locations	4 Standard, 4 Shifted
Interface
Electrical	RS-232 or RS-422 Jumper Selectable
Transmission	Serial Asynchronous
Code	ASCII
Baud Rate	300 - 19,200
Protocol	Character (XON/XOFF), Block , Multidrop, Monitor, Buffering Mode
Max Block Length	96 Characters(Input), 80 Characters(Output)
Max Multidrop	32 Units/Line
Connector Type	DB-25S(Host), DE-9P(Peripheral), DB-25P(Auxiliary)
Off-Line Capability
Prompt Sequences	8, User-Programmable
Data Storage	21KB automatically partitioned between data buffering and validation tables, e.g. 1300 10-character entries and 0 table elements; 1000 10-character entries and 500 10-character table elements; 1400 5-character entries and 1000 5-character table elements; etc.
Validation Table	Up to 5
Capabilities	Display Prompts; Validate against tables; validate against picture string; Buffer data; Lock/unlock keyboard; Enable/disable peripheral device(s); Time stamp data; Tag data with prompt sequence identification; Change prompt sequences; Operate IN/OUT(L1,L2), ONLINE(L3), L4 LED's
Electronics
Technology	CMOS
CPU	6303
ROM	32K
Non-volatile RAM	32K (10 year back-up)
Power-up provided diagnostics for all of above
Environmental
Storage Temperature	-10℃ to 60℃
Operating Temperature	0℃ to 50℃
Relative Humidity	5% to 95%(non-condensing)
Physical
Size	7.6"W x 6.4"H x 1.6"D
Case Material	ABS

모 델 번 호	비 고
TM4500-wxy	Terminal base unit
Communications Selection
w =l	RS-232
w=2	RS-422
Peripheral Options
x=0	No Peripheral Module installed
x=4	TM8424 Magnetic Stripe Module
Auxiliary Options
y = 0	No Auxiliary Module installed
y = l	TM8431 Parallel Printer Module
y = 2	TM8432A RS-232C Module
y = 3	TM8443A Digital I/O Module
y = 6	TM8436A Machine Monitor Module
Power Supplies Options <관련 악세서리 그림 보기>
TM8441	9V Power Supply (110 Volt)
TM8443	12V Power Supply (110 Volt)
TM8441F	9V Power Supply (220 Volt)
TM8443E	12V Power supply (220 Volt)
