TM2500/TM2700 마이크로 단말기



TM2500/TM2700 단말기

square02_darkbluegreen.gif 개발 시간과 비용의 최소화

square02_darkbluegreen.gif Large, High-Contrast 16-Character LCD 디스플레이

square02_darkbluegreen.gif 80 Character 디스플레이 버퍼

square02_darkbluegreen.gif 6 Programmable Backlit 펑션키, Numeric 키패드

square02_darkbluegreen.gif 전원 입력시 자체 테스트

square02_darkbluegreen.gif Numeric 키패드

square02_darkbluegreen.gif 인터페이스 : TM2500 - RS-232,  TM2700 - RS-422

square02_darkbluegreen.gif Case Size : 7.102"W x 4.102"H x 1.06"D

명령어

프로그램 개발자를 위한 Escape Sequence에 따라 단말기를 제어할 수 있다. 호스트 시스템에서 단말기에 설정된 파라메타를 수정할 수 있다.



명령어

기                능

p

Poll terminal for Output

r

Retransmit last data

e

Echo output buffer

o

Clear output buffer

t

Set Turnaround Delay

k

Set Keyboard Parameters

m

Define Function Message*

d

Set Display Characters

i

Insert Function Message in Output Stream

b

Backup parameters in nonvolatile EEPROM*

c

Configuration request

* This command requires 75ms processing time in the terminal after reception



TM2500/TM2700 사양

Display

16-character alphanumeric LCD with adjustable viewing angle

Character Size

0.38" (9.66mm) character height

Display Buffer

80-characters

Keyboard

Sealed, molded silicon rubber

Scrolling Keys

Two, manual

Keypad

Numeric

Number of Keys

24

Operation Life

1,000,000 operations

Function Keys

Six, programmable, backlit

Indicators

Audible tone, flashing display, 6 LEDs

Communications

TM2500: RS-232C, point-to-point; TM2700: RS-422, multidrop up to 32 terminals

Power

TM2500: 5VDC or 7.5 to 1OVDC at 250mA max; TM2700: 350mA max

Baud Rate

300, 1200, 9600

Modes

Character and block

Operating Temp

0℃ to +50℃ (32℉ to 122℉)

Storage Temp

-20℃ to +70℃ (-4℉ to +158℉)

Dimensions

7.102"W X 4.102"H X 1.060"D

Weight

10.5 ounces

Mounting

Flush or surface mounted

Case

Dust- and moisture-sealed ABS plastic



TM2500/TM2700 Environmental Qualifications

The following environmental qualification tests were performed on TM2500/TM2700:

Altitude

50,000 feet nonoperational; 15,000 feet operational

Temp Rating

-20℃ to +70℃ storage; 0℃ to +50℃ operational

Keypad Service Life

One million operations

Vibration

Search: 5-55Hz in three planes; Cycling: 55-500-55Hz at 3G

Mechanical Shock

30G with duration of 1lms

Radio Interference

Meets FCC Class A compliance

Conducted Interference

Meets FCC Class A compliance

Radio Susceptibility

2.0V per meter over 14kHz-IOGHz in vertical or horizontal sweep

Bench Drop Test

4" or 45 degree pivot drop to 1-5/8"-thick bench top

Package Drop Test

Certified by the National Safe Transit Association



모   델   번   호

비         고

TM2500

Microterminal, RS232, numeric keypad

TM2700

Microterminal, RS422, numeric keypad

TM2741

Power supply for TM2500, TM2700

TMA013

Keypad cover for TM2500, TM2700; package of 5

TMA022

Mounting Brackets for TM2500, TM2700; 5 Pairs

TMK2706

Drop cable/DE-9 Male to DE-9 Male/6 foot, for TM2500, TM2700

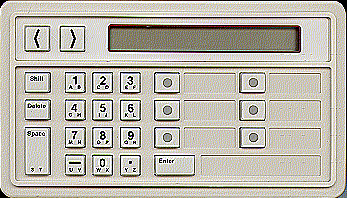

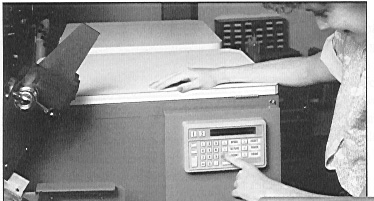

 TM2500 단말기 사진
