ÀÌ´õ³Ý/½Ã¸®¾ó ÀÎÅÍÆäÀ̽º ½Ã½ºÅÛ



EDAS-1025E Çϵå¿þ¾î Ư¡

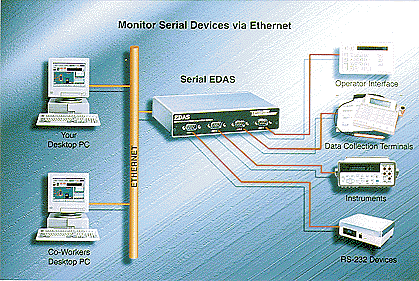

square02_darkbluegreen.gif ÀÌ´õ³Ý, ÀÎÅͳÝ, ÀÎÆ®¶ó³ÝÀ» ÅëÇÑ ¿ø°Ý RS-232 Åë½Å Áö¿ø

square02_darkbluegreen.gif 10-BaseT ÀÎÅÍÆäÀ̽º

square02_darkbluegreen.gif TCP/IP ÇÁ·ÎÅäÄÝ Åë½Å

square02_darkbluegreen.gif 2 or 4 Æ÷Æ® Version



Áö¿ø ¼ÒÇÁÆ®¿þ¾î

square02_darkbluegreen.gif NetLink - DOS, Windows & UNIX µå¶óÀÌºê ¶óÀ̺귯¸®

square02_darkbluegreen.gif LabVIEW - LabVIEW VI ¶óÀ̺귯¸®

square02_darkbluegreen.gif COM Æ÷Æ® µå¶óÀ̺ê - °¡»ó COM Æ÷Æ® µå¶óÀ̺ê

square02_darkbluegreen.gif IBM AS/400 ÀÎÅÍÆäÀ̽º

Àû ¿ë »ç ·Ê

´ëºÎºÐÀÇ ½Ã¸®¾ó Åë½Å¿ë Àåºñµé°ú Åë½Å °¡´É

square02_darkbluegreen.gif Operator-Interface Terminals

square02_darkbluegreen.gif Data Collection Terminals

square02_darkbluegreen.gif BarCode Scanners

square02_darkbluegreen.gif PLC

square02_darkbluegreen.gif Instruments

square02_darkbluegreen.gif Scales

square02_darkbluegreen.gif Gauages

square02_darkbluegreen.gif Smart Sensors

square02_darkbluegreen.gif UPS(Uninterruptible Power Supplies

square02_darkbluegreen.gif Factory Floor Machines

square02_darkbluegreen.gif Security Systems

square02_darkbluegreen.gif Vending Machines



¸ð µ¨ ¹ø È£

ºñ       °í

EDAS-1025E-1B1

2 port Serial EDAS with 120VAC power Supply, COM Port Drivers, NetLink Library, Visual Designer Drivers and LabVIEW Drivers, Hardware Manual and DB9 Null Modem Cable

EDAS-1025E-1B2

2 port Serial EDAS with 230VAC power Supply, COM Port Drivers, NetLink Library, Visual Designer Drivers and LabVIEW Drivers, Hardware Manual and DB9 Null Modem Cable

EDAS-1025E-2B1

4 port Serial EDAS with 120VAC power Supply, COM Port Drivers, NetLink Library, Visual Designer Drivers and LabVIEW Drivers, Hardware Manual and DB9 Null Modem Cable

EDAS-1025E-2B2

4 port Serial EDAS with 230VAC power Supply, COM Port Drivers, NetLink Library, Visual Designer Drivers and LabVIEW Drivers, Hardware Manual and DB9 Null Modem Cable

EDAS-1025G-1B

EDAS Ethernet/Serial Interface, 2-ports, OEM Version

EDAS-1025G-2B

EDAS Ethernet/Serial Interface, 4-ports, OEM Version

EDAS-1025N-1B1

EDAS Ethernet/Serial Interface, 2-ports, 120VAC Power Supply

EDAS-1025N-1B2

EDAS Ethernet/Serial Interface, 2-ports, 230VAC Power Supply

EDAS-1025N-2B1

EDAS Ethernet/Serial Interface, 4-ports, 120VAC Power Supply

EDAS-1025N-2B2

EDAS Ethernet/Serial Interface, 4-ports, 230VAC Power Supply

Accessories

LPP002

Power Adapter, 90-120VAC to 24VAC

LPP003

Power Adapter, 230VAC to 24VAC

LPA015

RS-232 Null Modem Cable

EDAS-1029A-1

DIN-Rail Mounting Kit - Serial EDAS

EDAS-1030A-1

Manual - Serial EDAS



EDAS-1025E Çϵå¿þ¾î »ç¾ç

Parameter

Conditions*

Specification

Serial

RS-232C



2 or 4 ports

Connector



DE-9

Communication



ASCII, Binary

Supply Voltages

3k ohm Load

±6V TX, RTS Active

Network

Type



Ethernet 10Base-T (Twisted Pair)

Interface



RJ45 Connector

Buffer RAM

Internal

4Kbytes

EEPROM

Serial

1024 bits

Controller



SMC91C94

Reset Controller

Type



MAX809M (or equivalent)

Threshold Voltage



4.4 V

Range

-40 to +85'C

4.25 V to 4.50 V

Reset Active Time-out Period



240 msec

Range

-40 to +85'C

140 msec to 560 msec

Power

Voltage Range





   -1, -2

AC or DC

15 to 28VAC, 20 to 40VDC

   -1G, -2G (OEM versions)

DC

5VDC

Current Requirements



5VDC

   -1, -2

24VAC

125 mA typical

   -1G, -2G (OEM versions)

5VDC

250 mA typical

Physical Characteristics

Base Material



Aluminum

Cover Material



Vinyl-clad steel

Bezel Material



Nickel-coated molded ABS plastic

Size

   -1, -2





   -1G, -2G (OEM versions)













5.125" D x 7.70" W x 1.70" H
13.0cmD x 19.56cmW x 4.32cmH



4.50" D x 7.00" W x 1.10" H
11.43cmD x 17.78cmW x 2.79cmH

Operating Temperature Range



0 to 50¡É

All Specifications are typical at 25¡É unless otherwise noted.

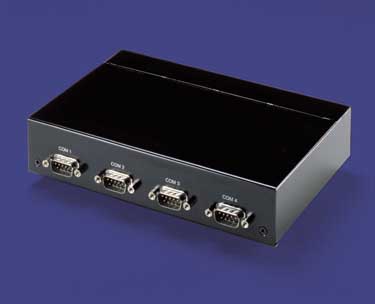

EDAS-1025E-2 Çϵå¿þ¾î »çÁø
