Isolated SCMD Digital I/O Modules
|
SCMD Opto-Isolated Digital I/O Selection Guide |
Isolated SCMD Digital I/O Modules
|
SCMD 모듈 제품 선택 가이드( SCMD Modules Introduction PDF 다운로드 ) |
|
| Digital Input Modules, Miniature |
|
| Digital Output Modules, Miniature |
|
Digital Input Modules(SCMD-MIAC, MIDC 사양 PDF 다운로드) |
|

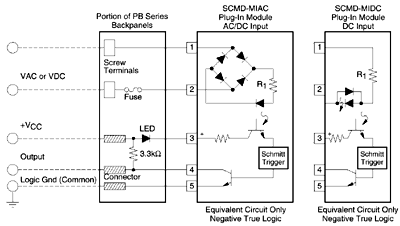

SCMD-MIAC/MIDC Block Diagram |
모 델 |
입 력 범 위 |
Supply Voltage |
SCMD-MIAC5 |
90 to 140VAC/DC |
5V |
SCMD-MIAC5A |
180 to 280VAC/DC |
5V |
SCMD-MIAC5E |
18 to 36VAC/DC |
5V |
SCMD-MIAC24 |
90 to 140VAC/DC |
24V |
SCMD-MIAC24A |
180 to 280VAC/DC |
24V |
SCMD-MIDC5 |
3.3 to 32VDC |
5V |
SCMD-MIDC5F |
4.0 to 32VDC |
5V |
SCMD-MIDC5N |
10 to 60VDC |
5V |
SCMD-MIDC24 |
3.3 to 32VDC |
24V |
Digital Output Modules (SCMD-MOAC, MODC 사양 PDF 다운로드) |
|
SCMD-MOAC/MODC Block Diagram |
모 델 |
출 력 범 위 |
Supply Voltage |
SCMD-MOAC5 |
12 to 140VAC |
5V |
SCMD-MOAC5A |
24 to 280VAC |
5V |
SCMD-MOAC24 |
12 to 140VAC |
24V |
SCMD-MOAC24A |
24 to 280VAC |
24V |
SCMD-MODC5 |
3.0 to 60VDC |
5V |
SCMD-MODC5A |
5.0 to 200VDC |
5V |
SCMD-MODC5ML |
1.0 to 50VDC |
5V |
SCMD-MODC24 |
3.0 to 60VDC |
24V |
|
한국인텔리젼트시스템(Korea Intelligent System) 전화 : 02-3272-9301 Email : sales@intelligent.co.kr |
