SCM5B Modules Selection Guide

SCM5B ¸ðµâ Á¦Ç° ¼±Åà°¡À̵å(SCM5B Modules Introduction PDF ´Ù¿î·Îµå)

SCM5B30/31

Isolated Voltage Input Modules, 4Hz Bandwidth

SCM5B32

Isolated Current Input Modules, 4Hz or 1kHz Bandwidth

SCM5B33

Isolated True RMS Input Modules

SCM5B34

Isolated Linearized 2- or 3-Wire RTD Input Modules, 4Hz Bandwidth

SCM5B35

Isolated Linearized 4-Wire RTD Input Modules, 4Hz Bandwidth

SCM5B36

Isolated Potentiometer Input Modules, 4Hz Bandwidth

SCM5B37

Non-Linearized Thermocouple Input Modules, 4Hz Bandwidth

SCM5B38

Strain Gage Input Modules, 4Hz or 10kHz Bandwidth

SCM5B39

Isolated Current Output Modules, 400Hz or 1kHz Bandwidth

SCM5B392

Matched Pair Servo/Motor Controller Driver, 1kHz bandwidth

SCM5B40/41

Isolated Voltage Input Modules, 10kHz Bandwidth

SCM5B42

Isolated 2-Wire Transmitter Interface Modules, 100Hz Bandwidth

SCM5B43

Isolated Voltage Input Modules, DC Excitation

SCM5B45

Isolated Frequency Input Modules

SCM5B47

Linearized Thermocouple Input Modules, 4Hz Bandwidth

SCM5B49

Isolated Voltage Output Modules, 400Hz Bandwidth

^** 10V Ãâ·ÂÀº  ÃÖ¼ÒÇÑÀÇ ¼ö·®¿¡ µû¶ó ÁÖ¹® Á¦ÀÛ °¡´ÉÇÕ´Ï´Ù.

Isolated Voltage Input Modules, 4Hz BW(SCM5B30/31 »ç¾ç PDF ´Ù¿î·Îµå)

SCM5B30/31 Block Diagram

¸ð      µ¨

ÀÔ   ·Â   ¹ü   À§

Ãâ   ·Â   ¹ü   À§^**

SCM5B30-01

-10mV to +10mV

-5V to +5V

SCM5B30-02

-50mV to +50mV

-5V to +5V

SCM5B30-03

-100mV to +100mV

-5V to +5V

SCM5B30-04

-10mV to +10mV

0V to +5V

SCM5B30-05

-50mV to +50mV

0V to +5V

SCM5B30-06

-100mV to +100mV

0V to +5V

SCM5B30-07

-1V to +1V

-5V to +5V(High Input Z)

SCM5B31-01

-1V to +1V

-5V to +5V

SCM5B31-02

-5V to +5V

-5V to +5V

SCM5B31-03

-10V to +10V

-5V to +5V

SCM5B31-04

-1V to +1V

0V to +5V

SCM5B31-05

-5V to +5V

0V to +5V

SCM5B31-06

-10V to +10V

0V to +5V

SCM5B31-07

-20V to +20V

-5V to +5V

SCM5B31-08

-20V to +20V

0V to +5V

SCM5B31-09

-40V to +40V

-5V to +5V

SCM5B31-10

-40V to +40V

0V to +5V

Isolated Current Input Modules(SCM5B32 »ç¾ç PDF´Ù¿î·Îµå, SCM5B392 »ç¾ç PDF ´Ù¿î·Îµå)

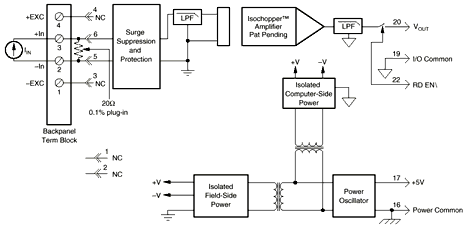

SCM5B32/392 Block Diagram

¸ð      µ¨

ÀÔ   ·Â   ¹ü   À§

Ãâ   ·Â   ¹ü   À§^**

BandWidth

SCM5B32-01

4mA to  20mA

0V to +5V

4Hz

SCM5B32-02

0mA to  20mA

0V to +5V

4Hz

SCM5B392-11

4mA to  20mA

0V to +5V

1kHz

SCM5B392-12

4mA to  20mA

-5V to +5V

1kHz

SCM5B392-13

4mA to  20mA

0V to +10V

1kHz

SCM5B392-14

4mA to  20mA

-10V to +10V

1kHz

Isolated RMS Input Modules(SCM5B33 »ç¾ç PDF ´Ù¿î·Îµå)

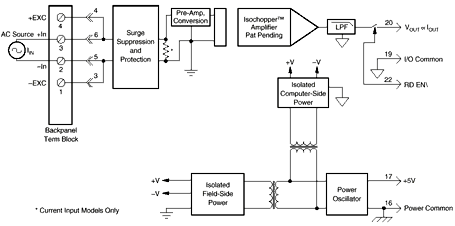

SCM5B33 Block Diagram

¸ð      µ¨

ÀÔ   ·Â   ¹ü   À§(rms)

Ãâ   ·Â   ¹ü   À§(dc)

SCM5B33-01

0 to 100mV

0V to 5V

SCM5B33-02

0 to +1V

0V to 5V

SCM5B33-03

0 to 10V

0V to 5V

SCM5B33-04

0 to +150V

0V to 5V

SCM5B33-05

0 to +300V

0V to 5V

SCM5B33-06

0 to 1A

0V to 5V

SCM5B33-07

0 to 5A

0V to 5V

SCM5B33-01B

0 to 100mV

0 to 1mA

SCM5B33-02B

0 to +1V

0 to 1mA

SCM5B33-03B

0 to 10V

0 to 1mA

SCM5B33-04B

0 to +150V

0 to 1mA

SCM5B33-05B

0 to +300V

0 to 1mA

SCM5B33-06B

0 to 1A

0 to 1mA

SCM5B33-07B

0 to 5A

0 to 1mA

SCM5B33-01C

0 to 100mV

4 to 20mA

SCM5B33-02C

0 to +1V

4 to 20mA

SCM5B33-03C

0 to 10V

4 to 20mA

SCM5B33-04C

0 to +150V

4 to 20mA

SCM5B33-05C

0 to +300V

4 to 20mA

SCM5B33-06C

0 to 1A

4 to 20mA

SCM5B33-07C

0 to 5A

4 to 20mA

SCM5B33-01D

0 to 100mV

0 to 10V

SCM5B33-02D

0 to +1V

0 to 10V

SCM5B33-03D

0 to 10V

0 to 10V

SCM5B33-04D

0 to +150V

0 to 10V

SCM5B33-05D

0 to +300V

0 to 10V

SCM5B33-06D

0 to 1A

0 to 10V

SCM5B33-07D

0 to 5A

0 to 10V

SCM5B33-01E

0 to 100mV

0 to 20mA

SCM5B33-02E

0 to +1V

0 to 20mA

SCM5B33-03E

0 to 10V

0 to 20mA

SCM5B33-04E

0 to +150V

0 to 20mA

SCM5B33-05E

0 to +300V

0 to 20mA

SCM5B33-06E

0 to 1A

0 to 20mA

SCM5B33-07E

0 to 5A

0 to 20mA

Linearized 2- or 3-Wire RTD Input Modules, 4Hz BW(SCM5B34 »ç¾ç PDF ´Ù¿î·Îµå)

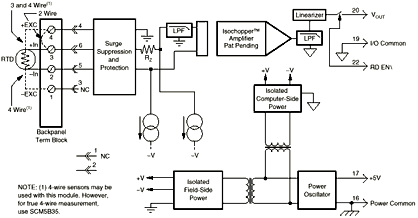

SCM5B34 Block Diagram

¸ð      µ¨

ÀÔ   ·Â   ¹ü   À§

Ãâ   ·Â   ¹ü   À§^**

Accuracy

100¥Ø Pt ( ¥á = 0.00385, DIN 43760, JIS C 1604-1989 )

SCM5B34-01

-100¡É to +100¡É

0 to 5V

±0.12¡É

SCM5B34-02

0¡É to +100¡É

0 to 5V

±0.06¡É

SCM5B34-03

0¡É to +200¡É

0 to 5V

±0.12¡É

SCM5B34-04

0¡É to +600¡É

0 to 5V

±0.36¡É

SCM5B34-05

-100¡É to +200¡É

0 to 5V

±0.18¡É

10¥Ø Cu ( ¥á = 0.004247 )

SCM5B34C-01

0¡É to +120¡É(at 0¡É)

0 to 5V

±0.23¡É

SCM5B34C-02

0¡É to +120¡É(at 25¡É)

0 to 5V

±0.23¡É

SCM5B34C-03

0¡É to +160¡É(at 0¡É)

0 to 5V

±0.32¡É

120¥Ø Ni ( ¥á = 0.00672 )

SCM5B34N-01

0¡É to +300¡É

0 to 5V

±0.23¡É

Linearized 4-Wire RTD Input Modules(SCM5B35 »ç¾ç PDF ´Ù¿î·Îµå)

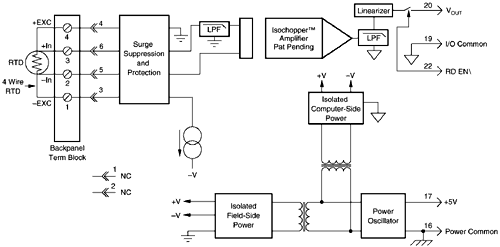

SCM5B35 Block Diagram

¸ð      µ¨

ÀÔ   ·Â   ¹ü   À§

Ãâ   ·Â   ¹ü   À§^**

Accuracy

100¥Ø Pt ( ¥á = 0.00385, DIN 43760, JIS C 1604-1989 )

SCM5B35-01

-100¡É to +100¡É

0 to 5V

±0.12¡É

SCM5B35-02

0¡É to +100¡É

0 to 5V

±0.06¡É

SCM5B35-03

0¡É to +200¡É

0 to 5V

±0.12¡É

SCM5B35-04

0¡É to +600¡É

0 to 5V

±0.36¡É

SCM5B35-05

-100¡É to +200¡É

0 to 5V

±0.18¡É

10¥Ø Cu ( ¥á = 0.004247 )

SCM5B35C-01

0¡É to +120¡É(at 0¡É)

0 to 5V

±0.23¡É

SCM5B35C-02

0¡É to +120¡É(at 25¡É)

0 to 5V

±0.23¡É

SCM5B35C-02

0¡É to +160¡É(at 0¡É)

0 to 5V

±0.32¡É

120¥Ø Ni ( ¥á = 0.00672 )

SCM5B35N-01

0¡É to +300¡É

0 to 5V

±0.23¡É

Isolated Potentiometer Input Modules(SCM5B36 »ç¾ç PDF ´Ù¿î·Îµå)

SCM5B36 Block Diagram

¸ð      µ¨

ÀÔ   ·Â   ¹ü   À§

Ãâ   ·Â   ¹ü   À§^**

SCM5B36-01

0 to 100¥Ø

0 to 5V

SCM5B36-02

0 to 500¥Ø

0 to 5V

SCM5B36-03

0 to 1k¥Ø

0 to 5V

SCM5B36-04

0 to 10k¥Ø

0 to 5V

Non-Linearized Thermocouple Input Modules(SCM5B37 »ç¾ç PDF ´Ù¿î·Îµå)

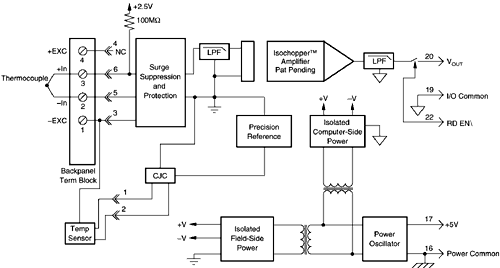

SCM5B37 Block Diagram

¸ð      µ¨

TC Type

ÀÔ   ·Â   ¹ü   À§

Ãâ   ·Â  ¹ü  À§^**

Accuracy¹

SCM5B37J

J

-100¡É to +760¡É

0 to 5V

±0.03%(±0.26¡É)

SCM5B37K

K

-100¡É to +1350¡É

0 to 5V

±0.03%(±0.44¡É)

SCM5B37T

T

-100¡É to +400¡É

0 to 5V

±0.03%(±0.15¡É)

SCM5B37E

E

0¡É to +900¡É

0 to 5V

±0.03%(±0.27¡É)

SCM5B37R

R

0¡É to +1750¡É

0 to 5V

±0.03%(±0.53¡É)

SCM5B37S

S

0¡É to +1750¡É

0 to 5V

±0.03% (±0.53¡É)

SCM5B37B

B

0¡É to +1800¡É

0 to 5V

±0.03%(±0.54¡É)

SCM5B37C

C

+350¡É to +1300¡É

0 to 5V

±0.03% (±0.29¡É)

SCM5B37N

N

-100¡É to +1300¡É

0 to 5V

±0.03%(±0.42¡É)

  ¹ Includes nonlinearity, repeatability and hysteresis. Does not include CJC accuracy.

Strain Gage Input Modules(SCM5B38 Narrow Band»ç¾ç, Wide Band »ç¾ç PDF ´Ù¿î·Îµå)

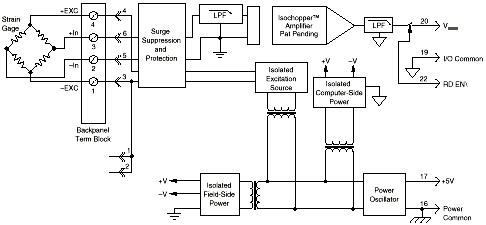

SCM5B38 Block Diagram

¸ð      µ¨

ÀÔ   ·Â   ¹ü   À§

Excitation

Ãâ ·Â^**

10KHz

4Hz

Bridge Type

Range

SCM5B38-01

SCM5B38-31

Full

100 to 10K¥Ø

3.333V at 3mV/V

-5V to 5V

SCM5B38-02

SCM5B38-32

Full

300 to 10K¥Ø

10.0V at 3mV/V

-5V to 5V

SCM5B38-03

SCM5B38-33

Half

100 to 10K¥Ø

3.333V at 3mV/V

-5V to 5V

SCM5B38-04

SCM5B38-34

Half

300 to 10K¥Ø

10.0V at 3mV/V

-5V to 5V

SCM5B38-05

SCM5B38-35

Full

300 to 10K¥Ø

10.0V at 2mV/V

-5V to 5V

SCM5B38-06

SCM5B38-36

Full

100 to 10K¥Ø

3.333V at 10mV/V

-5V to 5V

SCM5B38-07

SCM5B38-37

Full

300 to 10K¥Ø

10.0V at 10mV/V

-5V to 5V

Isolated Current Output Modules(SCM5B39 »ç¾ç PDF ´Ù¿î·Îµå)

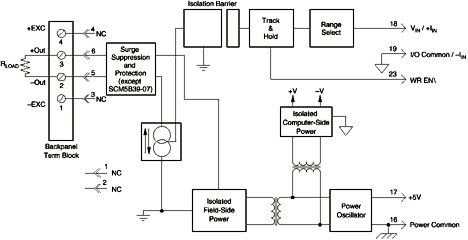

SCM5B39 Block Diagram

¸ð      µ¨

ÀÔ   ·Â   ¹ü   À§

Ãâ   ·Â   ¹ü   À§

Bandwidth

SCM5B39-01

0 to +5V

4 to 20mA

400Hz

SCM5B39-02

-5V to +5V

4 to 20mA

400Hz

SCM5B39-04

-5V to +5V

0 to 20mA

400Hz

SCM5B39-05

0 to 20mA

0 to 20mA

400Hz

SCM5B39-07

-10V to +10V

-20mA to + 20mA

275Hz

SCM5B392-01

0 to +5V

4 to 20mA

1kHz

SCM5B392-02

-5V to +5V

4 to 20mA

1kHz

SCM5B392-03

0 to +10V

4 to 20mA

1kHz

SCM5B392-04

-10V to +10V

4 to 20mA

1kHz

Matched Pair Servo/Motor Controller Drivers(SCM5B392 »ç¾ç PDF ´Ù¿î·Îµå)

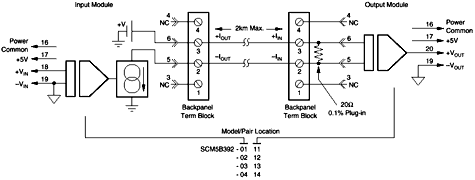

SCM5B392 Block Diagram

¸ð      µ¨(Pairs)

ÀÔ   ·Â   ¹ü   À§

ÀÎ ÅÍ Æä ÀÌ ½º

Ãâ   ·Â   ¹ü   À§

SCM5B392-0111

0 to +5V

4 to 20mA

0 to +5V

SCM5B392-0212

-5V to +5V

4 to 20mA

-5V to +5V

SCM5B392-0313

0 to +10V

4 to 20mA

0 to +10V

SCM5B392-0414

-10V to +10V

4 to 20mA

-10V to +10V

¸ð      µ¨(Single)

ÀÔ   ·Â   ¹ü   À§

Ãâ   ·Â   ¹ü   À§

Bandwidth

SCM5B392-01

0 to +5V

4 to 20mA

1kHz

SCM5B392-02

-5V to +5V

4 to 20mA

1kHz

SCM5B392-03

0 to +10V

4 to 20mA

1kHz

SCM5B392-04

-10V to +10V

4 to 20mA

1kHz

SCM5B392-11

4 to 20mA

0 to +5V

1kHz

SCM5B392-12

4 to 20mA

-5V to +5V

1kHz

SCM5B392-13

4 to 20mA

0 to +10V

1kHz

SCM5B392-14

4 to 20mA

-10V to +10V

1kHz

Analog Voltage Input Modules(SCM5B40/41 »ç¾ç PDF ´Ù¿î·Îµå)

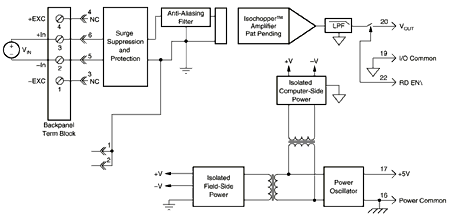

SCM5B40/41 Block Diagram

¸ð      µ¨

ÀÔ   ·Â   ¹ü   À§

Ãâ   ·Â   ¹ü   À§^**

SCM5B40-01

-10mV to +10mV

-5V to +5V

SCM5B40-02

-50mV to +50mV

-5V to +5V

SCM5B40-03

-100mV to +100mV

-5V to +5V

SCM5B40-04

-10mV to +10mV

0 to +5V

SCM5B40-05

-50mV to +50mV

0 to +5V

SCM5B40-06

-100mV to +100mV

0 to +5V

SCM5B40-07

-1V to +1V

-5V to +5V(High Input Z)

SCM5B41-01

-1V to +1V

-5V to +5V

SCM5B41-02

-5V to +5V

-5V to +5V

SCM5B41-03

-10V to +10V

-5V to +5V

SCM5B41-04

-1V to +1V

0 to +5V

SCM5B41-05

-5V to +5V

0 to +5V

SCM5B41-06

-10V to +10V

0 to +5V

SCM5B41-07

-20V to +20V

-5V to +5V

SCM5B41-08

-20V to +20V

0 to +5V

SCM5B41-09

-40V to +40V

-5V to +5V

SCM5B41-10

-40V to +40V

0 to +5V

2-Wire Transmitter Interface Modules(SCM5B42 »ç¾ç PDF ´Ù¿î·Îµå)

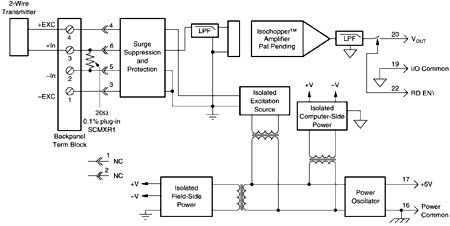

SCM5B42 Block Diagram

¸ð      µ¨

ÀÔ   ·Â   ¹ü   À§

Ãâ   ·Â   ¹ü   À§

SCM5B42-01

4mA to 20mA

+1V to +5V

SCM5B42-02

4mA to 20mA

+2V to +10V

Analog Voltage Input Modules, DC Excitation(SCM5B43 »ç¾ç PDF ´Ù¿î·Îµå)

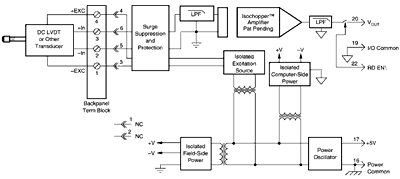

SCM5B43 Block Diagram

¸ð      µ¨

ÀÔ   ·Â   ¹ü   À§

Ãâ   ·Â   ¹ü   À§^**

SCM5B43-01

-1V to +1V

-5V to +5V

SCM5B43-02

-2V to +2V

-5V to +5V

SCM5B43-03

-3V to +3V

-5V to +5V

SCM5B43-04

-4V to +4V

-5V to +5V

SCM5B43-05

-5V to +5V

-5V to +5V

SCM5B43-06

-6V to +6V

-5V to +5V

SCM5B43-07

-7V to +7V

-5V to +5V

SCM5B43-08

-8V to +8V

-5V to +5V

SCM5B43-09

-9V to +9V

-5V to +5V

SCM5B43-10

-10V to +10V

-5V to +5V

Frequency Input Modules(SCM5B45 »ç¾ç PDF ´Ù¿î·Îµå)

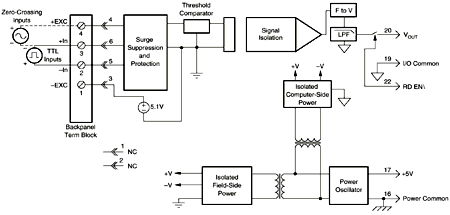

SCM5B45 Block Diagram

¸ð      µ¨

ÀÔ   ·Â   ¹ü   À§

Ãâ   ·Â   ¹ü   À§^**

Zero Crossing Hysterisis

SCM5B45-01

0 to 500Hz

0V to +5V

±20mV

SCM5B45-02

0 to 1kHz

0V to +5V

±20mV

SCM5B45-03

0 to 3kHz

0V to +5V

±20mV

SCM5B45-04

0 to 5kHz

0V to +5V

±20mV

SCM5B45-05

0 to 10kHz

0V to +5V

±20mV

SCM5B45-06

0 to 25kHz

0V to +5V

±20mV

SCM5B45-07

0 to 50kHz

0V to +5V

±20mV

SCM5B45-08

0 to 100kHz

0V to +5V

±20mV

SCM5B45-21

0 to 500Hz

0V to +5V

±400mV

SCM5B45-22

0 to 1kHz

0V to +5V

±400mV

SCM5B45-23

0 to 3kHz

0V to +5V

±400mV

SCM5B45-24

0 to 5kHz

0V to +5V

±400mV

SCM5B45-25

0 to 10kHz

0V to +5V

±400mV

SCM5B45-26

0 to 25kHz

0V to +5V

±400mV

SCM5B45-27

0 to 50kHz

0V to +5V

±400mV

SCM5B45-28

0 to 100kHz

0V to +5V

±400mV

Linearized Thermocouple Input Modules(SCM5B47 »ç¾ç PDF ´Ù¿î·Îµå)

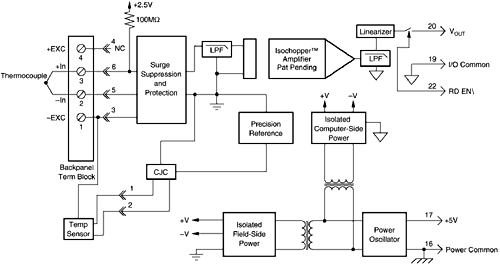

SCM5B47 Block Diagram

¸ð      µ¨

TC Type

ÀÔ   ·Â   ¹ü   À§

Ãâ   ·Â   ¹ü   À§

Accuracy^*

SCM5B47J-01

J

0¡É to +760¡É

0V to +5V

±0.08%(±0.61¡É)

SCM5B47J-02

J

-100¡É to +300¡É

0V to +5V

±0.08%(±0.32¡É)

SCM5B47J-03

J

0¡É to +500¡É

0V to +5V

±0.07%(±0.36¡É)

SCM5B47K-04

K

0¡É to +1000¡É

0V to +5V

±0.08%(±0.80¡É)

SCM5B47K-05

K

0¡É to +500¡É

0V to +5V

±0.08%(±0.38¡É)

SCM5B47T-06

T

-100¡É to +400¡É

0V to +5V

±0.16%(±0.80¡É)

SCM5B47T-07

T

0¡É to +200¡É

0V to +5V

±0.13%(±0.25¡É)

SCM5B47E-08

E

0¡É to +1000¡É

0V to +5V

±0.10%(±1.00¡É)

SCM5B47R-09

R

+500¡É to +1750¡É

0V to +5V

±0.10%(±1.30¡É)

SCM5B47S-10

S

+500¡É to +1750¡É

0V to +5V

±0.10%(±1.30¡É)

SCM5B47B-11

B

+500¡É to +1800¡É

0V to +5V

±0.15%(±2.00¡É)

SCM5B47J-12

J

-100¡É to +760¡É

0V to +5V

±0.08%(±0.70¡É)

SCM5B47K-13

K

-100¡É to +1350¡É

0V to +5V

±0.08%(±1.20¡É)

SCM5B47K-14

K

0¡É to +1200¡É

0V to +5V

±0.08%(±0.96¡É)

SCM5B47N-15

N

-100¡É to +1300¡É

0V to +5V

±0.08%(±1.15¡É)

 ^* Accuracy includes the effects of conformity, hysteresis and repeatability.
   Does not include CJC accuracy.

Voltage Output Modules, 50mA Capacity(SCM5B49 »ç¾ç PDF ´Ù¿î·Îµå)

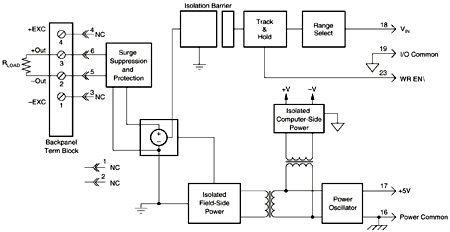

SCM5B49 Block Diagram

¸ð      µ¨

ÀÔ   ·Â   ¹ü   À§

Ãâ   ·Â   ¹ü   À§

SCM5B49-01

0V to +5V

-5V to +5V

SCM5B49-02

-5V to +5V

-5V to +5V

SCM5B49-03

-5V to +5V

0V to +5V

SCM5B49-04

0V to +10V

-10V to +10V

SCM5B49-05

-10V to +10V

-10V to +10V

SCM5B49-06

-10V to +10V

0V to +10V

SCM5B49-07

-5V to +5V

-10V to +10V

Çѱ¹ÀÎÅÚ¸®Á¯Æ®½Ã½ºÅÛ(Korea Intelligent System)  ÀüÈ­ : 02-3272-9301   Email : sales@intelligent.co.kr
