AI-MAX 채널 구성 방법



AI-MAX 채널 확장 시스템 구성 방법

square02_darkbluegreen.gif AI-MAX 구성 : Non-Isolation/Signal Conditioning 구성

square02_darkbluegreen.gif AI-MAX 구성 : Non-Isolation/Signal Conditioning Thermocouple 구성

square02_darkbluegreen.gif AI-MAX 구성 : 5B Isolation/Signal Conditioning 구성



Non-Isolated 채널 시스템



Part Number

Description

Qty
256SE
128DIFF

Qty
240SE
120DIFF

Qty
224SE
112IFF

Qty
208SE
104DIFF

Qty
192SE
96DIFF

Qty
176SE
88DIFF

Qty
160SE
80DIFF

Qty
144SE
72DIFF

EDAS-1002E EDAS-1031E
PCI-20450P
PCI-20248W
UDAS-1001/2

12-bit Ethernet DAQ
16-bit Ethernet DAQ
DASport DAQ
DAQ Board
UDAS DAQ

1

1

1

1

1

1

1

1

PCI-20488A-1

AI-MAX Expansion Backplane

1

1

1

1

1

1

1

1

EDAS-1012A-1

Cable, DAQ to AI-MAX Backplane

1

1

1

1

1

1

1

1

PCI-20490A-1

AI-MAX Backplane Extender with cable

1

1

1

1

1

1

1

1

PCI-20489A-1

AI-MAX Analog Expansion MUX

16

15

14

13

12

11

10

9

EDAS-1013A-5/6

Cable, Backplane to MUX

16

15

14

13

12

11

10

9

PCI-20303T-1

16-channel non-isolated termination panel

16

15

14

13

12

11

10

9

PCI-20308H-1

19-inch Enclosure/Card Cage

2

2

2

2

2

2

2

2

PCI-20309A-1

Accessory mounting hardware for five 3U termination panels (use with PCI-20308H-1 Enclosure)

2

2

2

1

1

1

1

1

PCI-20338A-1

5V, 6A power supply

.

.

.

.

.

.

.

.



Part Number

Description

Qty
128SE
64DIFF

Qty
112SE
56DIFF

Qty
96SE
48DIFF

Qty
80SE
40DIFF

Qty
64SE
32DIFF

Qty
48SE
24DIFF

Qty
32SE
16DIFF

EDAS-1002E
EDAS-1031E
PCI-20450P
PCI-20248W
UDAS-1001E/2E

12-bit Ethernet DAQ
16-bit Ethernet DAQ
DASport DAQ
DAQ Board
UDAS DAQ

1

1

1

1

1

1

1

PCI-20488A-1

AI-MAX Expansion Backplane

1

1

1

1

1

1

1

EDAS-1012A-1

Cable, DAQ to AI-MAX Backplane

1

1

1

1

1

1

1

PCI-20490A-1

AI-MAX Backplane Extender with cable

.

.

.

.

.

.

.

PCI-20489A-1

AI-MAX Analog Expansion MUX

8

7

6

5

4

3

2

EDAS-1013A-5/6

Cable, Backplane to MUX

8

7

6

5

4

3

2

PCI-20303T-1

16-channel non-isolated termination panel

8

7

6

5

4

3

2

PCI-20308H-1

19-inch Enclosure/Card Cage

1

1

1

1

1

1

1

PCI-20309A-1

Accessory mounting hardware for five 3U termination panels (use with PCI-20308H-1 Enclosure)

1

1

1

1

.

.

.

PCI-20338A-1

5V, 6A power supply

.

.

.

.

.

.

.



 Non-Isolated/Signal Conditioning Thermocouple 구성



Part Number

Description

Qty
56
TC

Qty
49
TC

Qty
42
TC

Qty
35
TC

Qty
28
TC

Qty
21
TC

Qty
14
TC

EDAS-1002E
EDAS-1031E
PCI-20450P
PCI-20248W
UDAS-1001/2

12-bit Ethernet DAQ
16-bit Ethernet DAQ
DASport DAQ
DAQ Board
UDAS DAQ

1

1

1

1

1

1

1

PCI-20488A-1

AI-MAX Expansion Backplane

1

1

1

1

1

1

1

EDAS-1012A-1

Cable, DAQ to AI-MAX Backplane

1

1

1

1

1

1

1

PCI-20490A-1

AI-MAX Backplane Extender with cable

.

.

.

.

.

.

.

PCI-20489A-1

AI-MAX Analog Expansion MUX

8

7

6

5

4

3

2

EDAS-1013A-5/6

Cable, Backplane to MUX

8

7

6

5

4

3

2

PCI-20303T-2

16-channel non-isolated termination panel

8

7

6

5

4

3

2

PCI-20308H-1

19-inch Enclosure/Card Cage

1

1

1

1

1

1

1

PCI-20309A-1

Accessory mounting hardware for five 3U termination panels (use with PCI-20308H-1 Enclosure)

1

1

1

1

.

.

.

PCI-20338A-1

5V, 6A power supply

.

.

.

.

.

.

.



Part Number

Description

Qty
112
TC

Qty
105
TC

Qty
98
TC

Qty
91
TC

Qty
84
TC

Qty
77
TC

Qty
70
TC

Qty
63
TC

EDAS-1002E
EDAS-1031E
PCI-20450P
PCI-20248W
UDAS-1001/2

12-bit Ethernet DAQ
16-bit Ethernet DAQ
DASport DAQ
DAQ Board
UDAS DAQ

1

1

1

1

1

1

1

1

PCI-20488A-1

AI-MAX Expansion Backplane

1

1

1

1

1

1

1

1

EDAS-1012A-1

Cable, DAQ to AI-MAX Backplane

1

1

1

1

1

1

1

1

PCI-20490A-1

AI-MAX Backplane Extender with cable

1

1

1

1

1

1

1

1

PCI-20489A-1

AI-MAX Analog Expansion MUX

16

15

14

13

12

11

10

9

EDAS-1013A-5/6

Cable, Backplane to MUX

16

15

14

13

12

11

10

9

PCI-20303T-2

16-channel non-isolated termination panel

16

15

14

13

12

11

10

9

PCI-20308H-1

19-inch Enclosure/Card Cage

2

2

2

2

2

2

2

2

PCI-20309A-1

Accessory mounting hardware for five 3U termination panels (use with PCI-20308H-1 Enclosure)

3

3

3

2

2

2

2

2

PCI-20338A-1

5V, 6A power supply

.

.

.

.

.

.

.

.

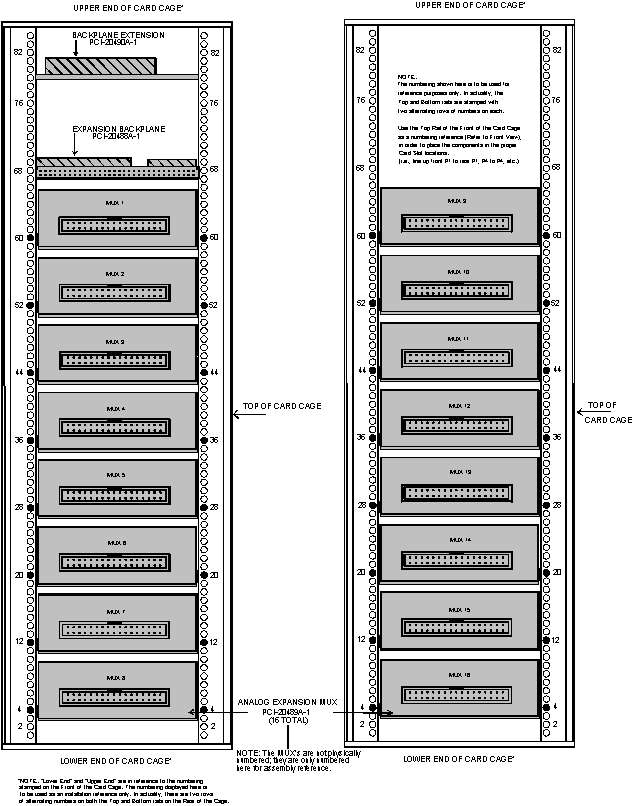

Non-Isolated/Signal Conditioning Front View

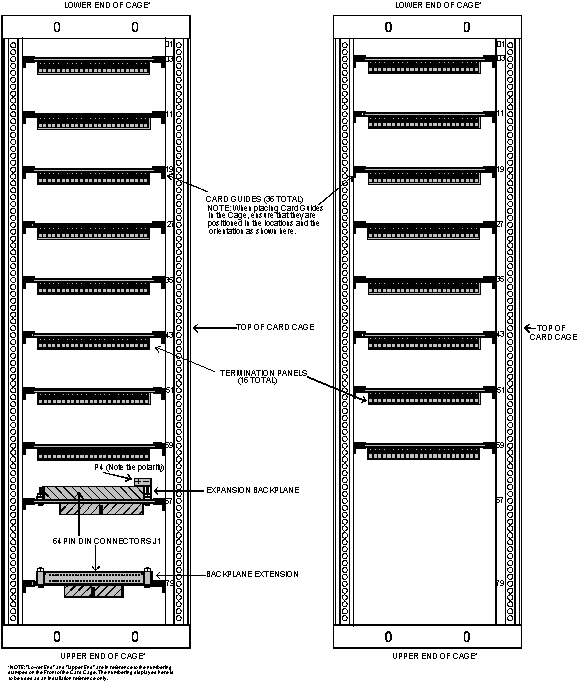

Non-Isolated/Signal Conditioning Back View



5B Isolated/Signal Conditioning 구성



Part Number

Description

Qty
128SE

Qty
112SE

Qty
96SE

Qty
80SE

Qty
64SE

Qty
48SE

Qty
32SE

EDAS-1002E
EDAS-1031E
PCI-20450P
PCI-20248W
UDAS-1001/2

12-bit Ethernet DAQ
16-bit Ethernet DAQ
DASport DAQ
DAQ Board
UDAS DAQ

1

1

1

1

1

1

1

PCI-20488A-1

AI-MAX Expansion Backplane

1

1

1

1

1

1

1

EDAS-1012A-1
(2 ft.)

Cable, DAQ to AI-MAX Backplane

1

1

1

1

1

1

1

PCI-20490A-1

AI-MAX Backplane Extender with cable

.

.

.

.

.

.

.

PCI-20489A-1

AI-MAX Analog Expansion MUX

8

7

6

5

4

3

2

EDAS-1013A-6
( 3 ft.)

Cable, Backplane to MUX

8

7

6

5

4

3

2

PCI-20353T-1

16-channel 5B isolated signal conditioning termination panel

8

7

6

5

4

3

2

PCI-20354T-1

16-channel 5B isolated signal conditioning termination panel expander

8

7

6

5

4

3

2

**5Bxx

Isolated Signal Conditioning Modules

128

112

96

80

64

48

32

PCI-20308H-1

19-inch card cage/enclosure

3

3

3

2

2

2

1

PCI-20309A-1

Accessory mounting hardware for five 3U termination panels (use with PCI-20308H-1 Enclosure)

1

1

1

1

.

.

.

*PCI-20338A-1

5V, 6A power supply

1

1

1

1

1

1

1

*The number of power supplies may vary with the current requirements of the 5B modules used. The quantity indicated assumes that the 5B modules used consume no more than 30ma each. Each power supply can supply 5 volts at 5 Amps. Please determine the total amount of current used by all 5B modules and modifiy quantity of power supplies as necessary. This may also affect the number of cardcages required.

**Please verify the correct 5B module for your specific application.



Part Number

Description

Qty
256SE

Qty
240SE

Qty
224SE

Qty
208SE

Qty
192SE

Qty
176SE

Qty
160SE

Qty
144SE

EDAS-1002E
EDAS-1031E
PCI-20450P
PCI-20248W
UDAS-1001/2

12-bit Ethernet DAQ
16-bit Ethernet DAQ
DASport DAQ
DAQ Board
UDAS DAQd

1

1

1

1

1

1

1

1

PCI-20488A-1

AI-MAX Expansion Backplane

1

1

1

1

1

1

1

1

EDAS-1012A-1 (1.5 ft.)

Cable, DAQ to AI-MAX Backplane

1

1

1

1

1

1

1

1

PCI-20490A-1

AI-MAX Backplane Extender with cable

1

1

1

1

1

1

1

1

PCI-20489A-1

AI-MAX Analog Expansion MUX

16

15

14

13

12

11

10

9

EDAS-1013A-6 (3 ft.)

Cable, Backplane to MUX

16

15

14

13

12

11

10

9

PCI-20353T-1

16-channel 5B isolated signal conditioning termination panel

16

15

14

13

12

11

10

9

PCI-20354T-1

16-channel 5B isolated signal conditioning termination panel expander

16

15

14

13

12

11

10

9

**5Bxx

Isolated Signal Conditioning Modules

256

240

224

208

192

176

160

144

PCI-20308H-1

19-inch card cage/enclosure

6

6

5

5

5

4

4

4

PCI-20309A-1

Accessory mounting hardware for five 3U termination panels (use with PCI-20308H-1 Enclosure)

2

2

2

1

1

1

1

1

*PCI-20338A-1

5V, 6A power supply

2

2

2

2

2

2

1

1

*The number of power supplies may vary with the current requirements of the 5B modules used. The quantity indicated assumes that the 5B modules used consume no more than 30ma each. Each power supply can supply 5 volts at 5 Amps. Please determine the total amount of current used by all 5B modules and modifiy quantity of power supplies as necessary. This may also affect the number of cardcages required.

**Please verify the correct 5B module for your specific application.

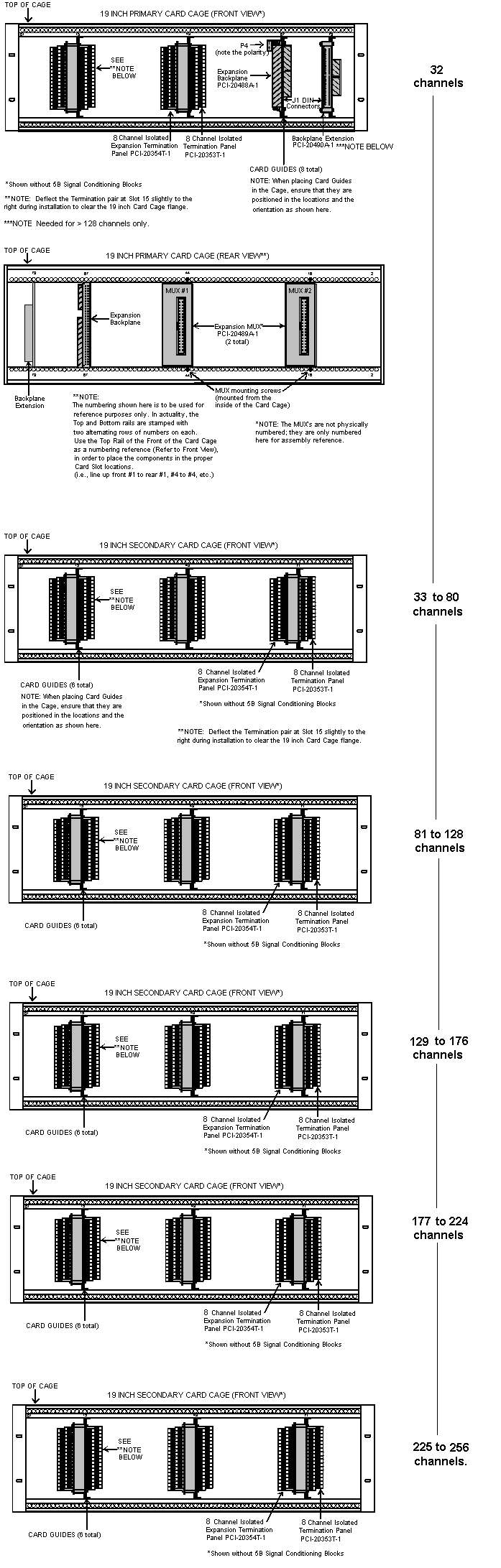

5B Isolated/Signal Conditioning Front View

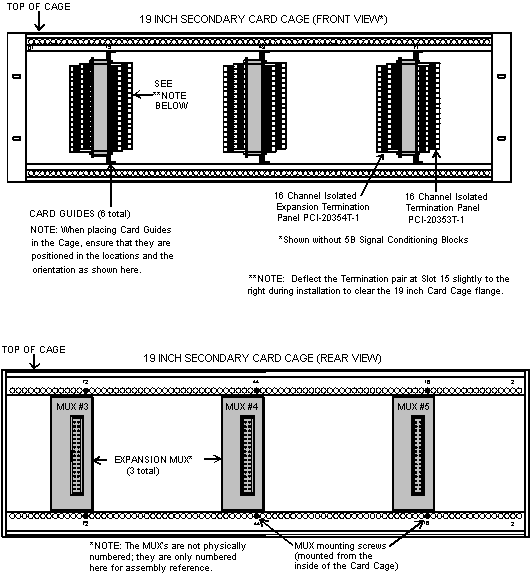

5B Isolated/Signal Conditioning Back View
