LANpoint 바코드 컴퓨터

Rugged, Compact 데이터 수집 & 산업용 컴퓨터
(NEMA-12)

10Base-T 이더넷 아답터 내장

키보드 : Removable/Re-Arrangeable Keys

오픈 아키텍쳐/오픈 시스템

2 x 40 LCD 디스플레이

2MB 까지 DRAM 사용 가능

리얼타임 클럭

바코드, 마그네틱 & Slot 리더 지원

1 Type I PCMCIA 슬롯( DOS 부팅용 & 데이터 저장, Server에서 Remote시 PCMCIA 카드 없이
Diskless Workstation으로 사용 가능)

1 표준 RS-232 통신 포트 & 1 Programmable SmartPort

2 Opto-Isolated 디지털 입력 & 2 릴레이 디지털 출력(Security & Access Control)

외부 CGA 모니터, XT 키보드 연결 가능

Y2K Compliant

지원 소프트웨어

DESIGNpoint - Application Generator Software

표준 DOS 응용 프로그램 및 유틸리티 프로그램 지원

LANpoint 하드웨어 사양

BASE UNIT

Physical

9.0"W x 5.0"H x 1.5"D (22.9cmW x 12.7cmH x 3.8cmD)

Weight

1.7 lbs. (.77Kg)

Integral Display

Improved supertwist 2 x 40 backlit LCD, programmed via LPT1

Keyboard

Sealed elastomeric

Keyboard Configuration

51 key positions mapped for 100 characters, QWERTY

Keyboard Options

Numeric 23 key, ABC alphanumeric configuration, custom

Temperature

Operating and Storage: 0℃ to 50℃

Power Requirements

12 VDC @ 400 mA

Automatic ID Interfaces

2 barcode inputs or 1 barcode and 1 magnetic stripe, RS232 SmartPort, COM1

Symbologies Decoded

Code 3 of 9 (Mod 43 and Full ASCII), Interleaved 2 of 5, Code 128, UPC/EAN/JAN, Codabar

Digital I/O

2 digital inputs, optically isolated from 4 VDC to 24 VDC wetting current supplied for use as dry contact inputs, 2 form C relay outputs driven to "on", "off", and momentary "on".

Other Connectors

10BaseT Ethernet, serial port (COM1), external speaker/beeper, RS232 serial, 2 barcode, power, floppy disk drive

Networks Supported

NDIS and ODI drivers support Windows NT, Novell Netware, TCP/IP, Artisoft LANtastic, Microsoft LAN Manager

OPTIONS

PCMCIA Memory Card

512 KB, 1 MB, and 2 MB SRAM cards

Battery Backup

C-Style pack, 1.8 Amp-hr; Charge time: 48 hours,
Operating time: 2 to 3 hours

모 델 번 호

비 고

LPC3510B-T

LANpoint Computer w/ 1M DRAM for 10BaseT
(Includes 3 Overlays, Installation Guide, Network driver diskette)

LPC3510B-T2

LANpoint Computer w/ 2M DRAM for 10BaseT
(Includes 3 Overlays, Installation Guide, Network driver diskette)

LANpoint 악세서리 <관련 악세서리 그림 보기>

모 델 번 호

비 고

LPA002

External Beeper

LPA003

Plastic Stand

LPA004-1

Slot Reader Bracket for LPA003, Mounts Right Side Desk or Left Side Wall

LPA004-2

Slot Reader Bracket for LPA003, Mounts Right Side Wall or Left Side Desk

LPA005-1

MSR200 Bracket for LPA003, Mounts Right Side Desk or Left Side Wall

LPA005-2

MSR200 Bracket for LPA003, Mounts Right Side Wall or Left Side Desk

LPA011

Keyboard Adapter for XT Keyboard, 5-pin to DIN connector

LPA013

PCMCIA Type I Memory Card, 1M SRAM (Includes DOS (Bootable), Network Boot Drivers, Demo Routines)

LPA042

PCMCIA Type I Memory Card, 2 MB SRAM (Includes Microsoft DOS (Bootable), Network Boot rivers, Demo Routines)

LPA053

PCMCIA Type I Memory Card, 1M SRAM, Rechargeable Battery (Includes DOS (Bootable), Network Boot Drivers, Access Demo Routines)

LPA052

PCMCIA Type I Memory Card, 2M SRAM, Rechargeable Battery (Includes DOS (Bootable), Network Boot Drivers, Access Demo Routines)

LPA014

CGA to 10 pin Header

LPA015

Data Transfer Cable, RS-232, DE-9 (AT) and DB-25 (XT)

LPA020

I/O Mating Connector

LPA022

Mounting Bracket for Power Supply (LPP001, TM8443 and TM8443E)

LPA023

RJ12 to DB25 Interface Cable

LPA038

Desktop Mounting Kit (was part of discontinued TM8442)

LPA039

Recess Mounting Bracket Kit (was part of discontinued TM8442)

LPP001

Power Supply, 12 VDC, 110 VAC, 1.2 A(A power supply is required for all units)

TM8443

Power Supply; 110VAC, 12VDC @ 1.2A

TM8443E

Power Supply; 220VAC, 12VDC @ 1.2A

TM8446

Keyboard cover (package of 25)

TMA017

Battery Pack, AA-Style, 500mA-hr

TMA018

Battery Pack, C-Style, 1.8 Amp-hr

TMN85

Industrial Mounting Box

LPA017

Manual Kit (Includes Programmer's Manual, Network and TCP/IP Remote Boot Guides and Installation Manuals)

Barcode and CCD Scanners

BCL-LS1004

Economy Laser Scanner, decoded

BCL-LS3603

Fuzzy Logic Scanner, ideal for reading poor quality barcodes, decoded

BCL-LS4004

Ergonomic Laser Scanner, decoded

BCL-LT1810

Laser Touch Scanner for close range (0-5 inches), decoded

BCL-WA5400

Laser Scanner, Mid-range Hand-held

BCL-WA5550

Visible Light Diode, Long- Range Hand-held

CCD-WA3000

CCD without a trigger

SA00380-015

15 foot cable for Welch-Allyn CCD & Laser Scanners (xxx-WAxxxx)

Barcode Slot Readers

BCS220

7.5 mil Red - 9 pin

BCS220-001

7.5 mil Red - 5 pin

BCS221

7.5 mil IR - 9 pin

BCS221-001

7.5 mil IR - 5 pin

Barcode Wands

BCW-WA6100-12

12 mil Visible Red Wand (6 ft cable)

BCW-WA6200-6

6 mil IR Wand (6 ft cable)

BCW-WA6100-6

6 mil Visible Red Wand (6 ft cable)

BCW-WA6100-6L20

6 mil Visible Red Wand (20 ft cable)

Magnetic Stripe Reader

MSR200

Track 2

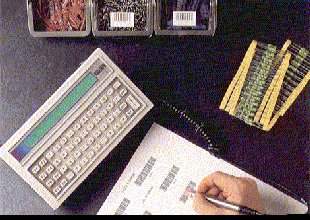

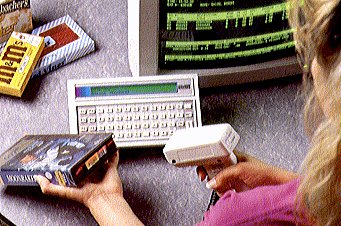

LANpoint's 사진

한국인텔리젼트시스템(Korea Intelligent System) 전화 : 02-3272-9301 Email : sales@intelligent.co.kr

LANpoint 하드웨어 사양
BASE UNIT
Physical	9.0"W x 5.0"H x 1.5"D (22.9cmW x 12.7cmH x 3.8cmD)
Weight	1.7 lbs. (.77Kg)
Integral Display	Improved supertwist 2 x 40 backlit LCD, programmed via LPT1
Keyboard	Sealed elastomeric
Keyboard Configuration	51 key positions mapped for 100 characters, QWERTY
Keyboard Options	Numeric 23 key, ABC alphanumeric configuration, custom
Temperature	Operating and Storage: 0℃ to 50℃
Power Requirements	12 VDC @ 400 mA
Automatic ID Interfaces	2 barcode inputs or 1 barcode and 1 magnetic stripe, RS232 SmartPort, COM1
Symbologies Decoded	Code 3 of 9 (Mod 43 and Full ASCII), Interleaved 2 of 5, Code 128, UPC/EAN/JAN, Codabar
Digital I/O	2 digital inputs, optically isolated from 4 VDC to 24 VDC wetting current supplied for use as dry contact inputs, 2 form C relay outputs driven to "on", "off", and momentary "on".
Other Connectors	10BaseT Ethernet, serial port (COM1), external speaker/beeper, RS232 serial, 2 barcode, power, floppy disk drive
Networks Supported	NDIS and ODI drivers support Windows NT, Novell Netware, TCP/IP, Artisoft LANtastic, Microsoft LAN Manager
OPTIONS
PCMCIA Memory Card	512 KB, 1 MB, and 2 MB SRAM cards
Battery Backup	C-Style pack, 1.8 Amp-hr; Charge time: 48 hours, Operating time: 2 to 3 hours

모 델 번 호	비 고
LPC3510B-T	LANpoint Computer w/ 1M DRAM for 10BaseT (Includes 3 Overlays, Installation Guide, Network driver diskette)
LPC3510B-T2	LANpoint Computer w/ 2M DRAM for 10BaseT (Includes 3 Overlays, Installation Guide, Network driver diskette)

LANpoint 악세서리 <관련 악세서리 그림 보기>
모 델 번 호	비 고
LPA002	External Beeper
LPA003	Plastic Stand
LPA004-1	Slot Reader Bracket for LPA003, Mounts Right Side Desk or Left Side Wall
LPA004-2	Slot Reader Bracket for LPA003, Mounts Right Side Wall or Left Side Desk
LPA005-1	MSR200 Bracket for LPA003, Mounts Right Side Desk or Left Side Wall
LPA005-2	MSR200 Bracket for LPA003, Mounts Right Side Wall or Left Side Desk
LPA011	Keyboard Adapter for XT Keyboard, 5-pin to DIN connector
LPA013	PCMCIA Type I Memory Card, 1M SRAM (Includes DOS (Bootable), Network Boot Drivers, Demo Routines)
LPA042	PCMCIA Type I Memory Card, 2 MB SRAM (Includes Microsoft DOS (Bootable), Network Boot rivers, Demo Routines)
LPA053	PCMCIA Type I Memory Card, 1M SRAM, Rechargeable Battery (Includes DOS (Bootable), Network Boot Drivers, Access Demo Routines)
LPA052	PCMCIA Type I Memory Card, 2M SRAM, Rechargeable Battery (Includes DOS (Bootable), Network Boot Drivers, Access Demo Routines)
LPA014	CGA to 10 pin Header
LPA015	Data Transfer Cable, RS-232, DE-9 (AT) and DB-25 (XT)
LPA020	I/O Mating Connector
LPA022	Mounting Bracket for Power Supply (LPP001, TM8443 and TM8443E)
LPA023	RJ12 to DB25 Interface Cable
LPA038	Desktop Mounting Kit (was part of discontinued TM8442)
LPA039	Recess Mounting Bracket Kit (was part of discontinued TM8442)
LPP001	Power Supply, 12 VDC, 110 VAC, 1.2 A(A power supply is required for all units)
TM8443	Power Supply; 110VAC, 12VDC @ 1.2A
TM8443E	Power Supply; 220VAC, 12VDC @ 1.2A
TM8446	Keyboard cover (package of 25)
TMA017	Battery Pack, AA-Style, 500mA-hr
TMA018	Battery Pack, C-Style, 1.8 Amp-hr
TMN85	Industrial Mounting Box
LPA017	Manual Kit (Includes Programmer's Manual, Network and TCP/IP Remote Boot Guides and Installation Manuals)
Barcode and CCD Scanners
BCL-LS1004	Economy Laser Scanner, decoded
BCL-LS3603	Fuzzy Logic Scanner, ideal for reading poor quality barcodes, decoded
BCL-LS4004	Ergonomic Laser Scanner, decoded
BCL-LT1810	Laser Touch Scanner for close range (0-5 inches), decoded
BCL-WA5400	Laser Scanner, Mid-range Hand-held
BCL-WA5550	Visible Light Diode, Long- Range Hand-held
CCD-WA3000	CCD without a trigger
SA00380-015	15 foot cable for Welch-Allyn CCD & Laser Scanners (xxx-WAxxxx)
Barcode Slot Readers
BCS220	7.5 mil Red - 9 pin
BCS220-001	7.5 mil Red - 5 pin
BCS221	7.5 mil IR - 9 pin
BCS221-001	7.5 mil IR - 5 pin
Barcode Wands
BCW-WA6100-12	12 mil Visible Red Wand (6 ft cable)
BCW-WA6200-6	6 mil IR Wand (6 ft cable)
BCW-WA6100-6	6 mil Visible Red Wand (6 ft cable)
BCW-WA6100-6L20	6 mil Visible Red Wand (20 ft cable)
Magnetic Stripe Reader
MSR200	Track 2
