FACTORYpoint PRO 바코드 컴퓨터

Rugged Intelligence 데이터 수집 & 산업용 컴퓨터

NEMA-4(IP66) Dust-Proof, Spray-Proof, Rugged Case

10Base-T 이더넷 아답터 내장

다양한 키보드 Map 선택 가능(Alphanemeric, Numeric, 펑션키, Enter키 등)

산업용 표준 486 DX2 66MHz DOS 컴퓨터(Co-processor 내장)

오픈 아키텍쳐/오픈 시스템

4 x 40 or 2 x 40(1/2 inches Characters) LCD 디스플레이

2 Type II & III PCMCIA 슬롯( 한 개의 슬롯은 하나는 DOS 부팅용 &
다른 슬롯은 하드디스크, Wireless 또는 Token Ring 네트웍 카드 사용 가능)

PC104 슬롯(VGA 카드, I/O 카드, 플로피/하드 디스크 드라이브,
네트웍 카드 또는 사운드 카드등 사용 가능)

2 표준 RS-232 통신 포트, 1 RS-485 통신 포트(옵션)

바코드 디코더 내장(Wands & Laser Scanners)

마그네틱 & Slot 리더 지원

6 opto-Isolated 디지털 입력 & 2 디지털 릴레이 출력 지원(옵션 모듈)

외부 VGA 모니터 지원(PC104 슬롯에 VGA 카드 추가시)

Y2K Compliant

리얼타임 클럭

지원 소프트웨어

DESIGNpoint - Application Generator Software

표준 DOS 응용 프로그램 및 유틸리티 프로그램 지원

FACTORYPoint PRO 하드웨어 사양

Physical

13.2"W x 9.7"H x 2.85"D (35.5cmW x 24.6cmH x 7.239cmD)

Weight

7.4 lbs. (3.3Kg)

Processor

AMD 486DX2-66 Processor, 1MB DRAM standard, expandable to 65 MB with standard SIMM RAM

System

100% Standard DOS compliant system

Integral Display

Your choice of backlit LCD displays programmed via LPT1 - no special programmer kits or proprietary software required. Choose either the 4 x 40 display, or the 2 x 40 display with large 1/2 inch characters

Display Modes

Dual display-separately controlled VGA (optional) and LCD Mapped mode - LCD displays a user specified 2 x 40 (or 4 x 40) display window

Keyboard

Sealed rubber actuators with steel dome switches

Keyboard Configuration

50 key positions, sequential alphanumeric

Case Design

Third party tested to NEMA4 Hosedown test (exceeds IP66)

Temperature

Operating and Storage: 0℃ to 50℃

Power Requirements

18-28VAC or 9-30VDC power, 1-2 amps @ 5V depending on options. Includes advanced power management features

Networks Supported

Novell Netware 3.x/4.x, Artisoft LANtastic, Windows NT, Microsoft LAN Manager, TCP/IP

Ethernet

Built in standard 10Base-T with RJ-45 connection internal

Automatic ID Interfaces

Wand emulation (front bottom), laser port - direct decode (front bottom), 1 slot reader connection (internal), 2 serial COM ports(1 internal, 1 front bottom)

Symbologies Decoded

Code 3 of 9, (Mod 43 and full ASCII), Interleaved 2 of 5, Code 128, UPC/EAN/JAN, Codabar

Other Connectors

External speaker/beeper, 1 PS2 mouse port (internal), 1 PS2 keyboard input (internal), general-purpose PC-104 Slot (internal)

PCMCIA Card Slots

2 general purpose slots, 1 type II and 1 type III (one required for boot)

PC/104 Card Slot

add one or more PC/104 cards for special/unique application requirements

Options

Battery Backup

'AA' Style 0.5 Amp-hr, or 'C' Style 1.8 Amp-hr

Digital I/O

6 opto isolated digital inputs (internal), 2 digital relay outputs (internal)

Communications

RS 485 Communications

모 델 번 호

비 고

LPC3910C-T

FACTORYpoint Pro Computer with 2-line large character display

LPC3910C-TIO

FACTORYpoint Pro Computer with 2-line large character display and digital I/O

LPC3911C-T

FACTORYpoint Pro Computer with 4-line display

LPC3911C-TIO

FACTORYpoint Pro Computer with 4-line display and digital I/O

FACTORYpoint PRO 악세서리 <관련 악세서리 그림 보기>

모 델 번 호

비 고

LPA002

External Beeper

LPA024

PC-104 VGA board

LPA025

RS-485 board for FACTORYpoint Pro

LPA043

FACTORYpoint Pro Manual Set

TM8447

Adjustable Tilt Wall/Desk Stand

LPA007

Slot Reader Bracket for TM8447 Stand, Right or Left Side, or Top

TM8448

Industrial Enclosure Mounting Kit

LPA006

Stainless Steel Industrial Enclosure Mounting Box

TMN87

Steel Industrial Enclosure Box

LPA008

Slot Reader Mounting Kit for TMN87 Enclosure

LPA030C

PCMCIA 2 MEG SRAM card with DataLight DOS

LPA031C

PCMCIA 2 MEG SRAM card with Microsoft MS DOS

LPA050C

PCMCIA 2 MEG rechargeable SRAM card with DataLight DOS

LPA051C

PCMCIA 2 MEG rechargeable SRAM card with Microsoft MS DOS

LPP002

24V Power Adapter, 90-120VAC

LPP003

24V Power Adapter, 230VAC

TMA017

Battery Pack, AA-Style, 0.5 Amp-hr

TMA018

Battery Pack, C-Style, 1.8 Amp-hr

Bar Code Accessories

BCL-LS1000

Economy Laser Scanner, undecoded

BCL-LS1004

Economy Laser Scanner, decoded

BCL-LS3200

Laser Scanner for demanding environments-extended temperature range (-22℉ to 122℉), undecoded

BCL-LS3603

Fuzzy Logic Scanner, ideal for reading poor quality barcodes, decoded

BCL-LS4000

Ergonomic Laser Scanner, undecoded

BCL-LS4004

Ergonomic Laser Scanner, decoded

BCL-LT1800

Laser Touch Scanner for close range (0-5 inches), undecoded

BCL-LT1810

Laser Touch Scanner for close range (0-5 inches), decoded

BCL-WA5400

Laser Scanner, Mid-range Hand-held

BCL-WA5550

Visible Light Diode, Long- Range Hand-held

CCD-WA3000

CCD without a trigger

SA00380-015

15 foot cable for Welch-Allyn CCD & Laser Scanners (xxx-WAxxxx)

BCW-WA6100-12

12 mil Visible Red Wand (6 ft cable)

BCW-WA6200-6

6 mil IR Wand (6 ft cable)

BCW-WA6100-6

6 mil Visible Red Wand (6 ft cable)

BCW-WA6100-6L20

6 mil Visible Red Wand (20 ft cable)

BCS-KBW-2BE

Barcode infrared slot reader, programmable, mini DIN connector for keyboard port

BCS230-001

Barcode slot reader 7.5 mil Red - 5 pin

BCS231-001

Barcode slot reader 7.5 mil IR - 5 pin

Magnetic Stripe Reader

MSR-KBW-TRK12BE

Magnetic stripe reader track 1 & 2 with keyboard wedge, mini DIN

MSR-KBW-TRK2BE

Magnetic stripe reader track 2 only, with keyboard wedge, mini DIN

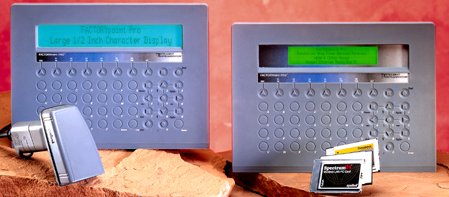

FACTORYpoint PRO's 사진
