FACTORYpoint Çϵå¿þ¾î »ç¾ç
BASE UNIT
Physical	13.2"W x 9.7"H x 2.6"D(35.5cmW x 24.6cmH x 6.6cmD)
Weight	7 lbs. (3.1Kg)
Integral Display	Improved supertwist 2 x 40 backlit LCD, programmed via LPT1
Keyboard	Sealed rubber actuators with steel dome switches
Keyboard Configuration	50 key sequential alphanumeric
Keyboard-Display Sealing	Third party tested to NEMA4 Hosedown test (exceeds IP66)
Temperature	Operating: 32¢µ to 122¢µ (0¡É to 50¡É) Storage: 15¢µ to 122¢µ (-10¡É to 50¡É)
Power Requirements	12 VDC @ 425 mA
Automatic ID Interfaces	2 bar code inputs or 1 bar code and 1 magnetic stripe, RS232 SmartPort, COM1
Symbologies Decoded	Code 3 of 9 (Mod 43 and Full ASCII), Interleaved 2 of 5, Code 128, UPC/EAN/JAN, Codabar
Digital I/O	2 digital inputs, optically isolated from 4 VDC to 24 VDC wetting current supplied for use as dry contact inputs, 2 form C relay outputs driven to "on", "off", and momentary "on".
Other Connectors	10BaseT Ethernet, serial port (COM1), external speaker/beeper, RS232 serial, 2 bar code, power, floppy disk drive
Networks Supported	NDIS and ODI drivers support Windows NT, TCP/IP, Novell Netware, Artisoft LANtastic, LAN Manager
OPTIONS
PCMCIA Memory Card	512 KB, 1 MB, and 2 MB SRAM cards
Battery Backup	C-Style pack, 1.8 Amp-hr; Charge time: 48 hours; Operating time: 2 to 3 hours



¸ð  µ¨  ¹ø  È£	ºñ       °í
LPC3710B-T	FACTORYpoint Computer w/1MB DRAM (Includes Installation Guide, Network Driver Diskette)
LPC3710B-T2	FACTORYpoint Computer w/1MB DRAM (Includes Installation Guide, Network Driver Diskette)



FACTORYpoint ¾Ç¼¼¼­¸® <°ü·Ã ¾Ç¼¼»ç¸® ±×¸² º¸±â>
LPA002	External Beeper
LPA007	Slot Reader Bracket for TM8447 Stand, Right or Left Side, or Top
LPA008	Slot Reader Mounting Kit for TMN87 Enclosure
LPA011	Keyboard Adapter for XT Keyboard, 5-pin to DIN connector
LPA013	PCMCIA Type I Memory Card, 1M SRAM (Includes DOS (Bootable), Network Boot Drivers, Demo Routines)
LPA042	PCMCIA Type I Memory Card, 2 MB SRAM (Includes Microsoft DOS (Bootable), Network Boot Drivers, Demo Routines)
LPA053	PCMCIA Type I Memory Card, 1M SRAM, Rechargeable Battery (Includes DOS (Bootable), Network Boot Drivers, Demo Routines)
LPA052	PCMCIA Type I Memory Card, 2M SRAM, Rechargeable Battery (Includes DOS (Bootable), Network Boot Drivers, Demo Routines)
LPA014	CGA to 10 pin Header
LPA015	Data Transfer Cable, RS-232, DE-9 (AT) and DB-25 (XT)
LPA017	Manual Kit (Includes Programmer's Manual, Network and TCp/IP Remote Boot Guides and Installation Manuals)
LPA020	I/O Mating Connector
LPA023	RJ12 to DB25 Interface Cable
LPP001	Power Supply, 12 VDC, 110 VAC, 1.2 A, isolated ground
TM8443	Power Supply; 110VAC, 12VDC @ 1.2A
TM8443E	Power Supply, 12 VDC, 210 VAC, 1.2 A
LPA022	Mounting Bracket for Power Supply (LPP001, TM8443 and TM8443E)
TM8447	Adjustable Tilt Wall/Desk Stand
TM8448	Industrial Enclosure Mounting Kit
LPA006	Stainless Steel Industrial Enclosure Mounting Box
TMN87	Steel Industrial Enclosure Box
TMA017	Battery Pack, AA-Style, 0.5 Amp-hr
TMA018	Battery Pack, C-Style, 1.8 Amp-hr
Barcode and CCD Scanners
BCL-LS1004	Economy Laser Scanner, decoded
BCL-LS3603	Fuzzy Logic Scanner, ideal for reading poor quality barcodes, decoded
BCL-LS4004	Ergonomic Laser Scanner, decoded
BCL-LT1810	Laser Touch Scanner for close range (0-5 inches), decoded
BCL-WA5400	Laser Scanner, Mid-range Hand-held
BCL-WA5550	Visible Light Diode, Long- Range Hand-held
CCD-WA3000	CCD without a trigger
SA00380-015	15 foot cable for Welch-Allyn CCD & Laser Scanners (xxx-WAxxxx)
Barcode Slot Readers
BCS220	7.5 mil Red - 9 pin
BCS220-001	7.5 mil Red - 5 pin
BCS221	7.5 mil IR - 9 pin
BCS221-001	7.5 mil IR - 5 pin
Barcode Wands
BCW-WA6100-12	12 mil Visible Red Wand (6 ft cable)
BCW-WA6200-6	6 mil IR Wand (6 ft cable)
BCW-WA6100-6	6 mil Visible Red Wand (6 ft cable)
BCW-WA6100-6L20	6 mil Visible Red Wand (20 ft cable)
Magnetic Stripe Reader
MSR200	Track 2

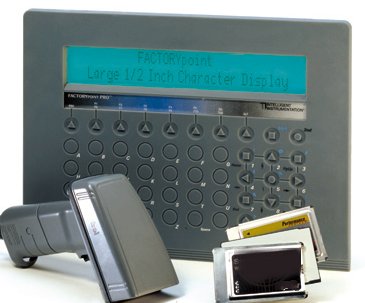

FACTORYpoint's »çÁø
