µðÁöÅÐ I/O ÀÌ´õ³Ý DAQ ½Ã½ºÅÛ



EDAS-1001E Çϵå¿þ¾î Ư¡

square02_darkbluegreen.gif Networked ÀÌ´õ³Ý DAQ ½Ã½ºÅÛ

square02_darkbluegreen.gif 10-BaseT ÀÎÅÍÆäÀ̽º

square02_darkbluegreen.gif TCP/IP ÇÁ·ÎÅäÄÝ Åë½Å

square02_darkbluegreen.gif 32 ä³Î Programmable µðÁöÅÐ I/O

square02_darkbluegreen.gif 2 16-bit °í¼Ó Ä«¿îÅÍ(250kHz)

square02_darkbluegreen.gif 1 RS-232 I/O ±âº» ³»Àå

square02_darkbluegreen.gif 1 RS-485 I/O ¿É¼Ç



Áö¿ø ¼ÒÇÁÆ®¿þ¾î

square02_darkbluegreen.gif NetLink - DOS, Windows 3.x, 95/98/NT & UNIX µå¶óÀÌºê ¶óÀ̺귯¸®

square02_darkbluegreen.gif LabVIEW - LabVIEW VI ¶óÀ̺귯¸®

square02_darkbluegreen.gif SCADA - SCADA ¼ÒÇÁÆ®¿þ¾î ÆÐŰÁö µå¶óÀ̺ê(Intellution FIX, Wonderware InTouch)

square02_darkbluegreen.gif COM Æ÷Æ® µå¶óÀ̺ê - °¡»ó COM Æ÷Æ® µå¶óÀ̺ê



Å͹̳Πº¸µå ¿É¼Ç

´Ù¾çÇÑ ÇüÅÂÀÇ Å͹̳Π¿É¼ÇÀ» ¿¬°áÇÏ¿© »ç¿ë °¡´É



¸ð µ¨ ¹ø È£

ºñ       °í

EDAS-1001E-1C

Digital I/O EDAS

EDAS-1001E-2C

Digital I/O EDAS, with RS-485 I/O

EDAS-1001G-1C

Digital I/O EDAS, OEM Version

EDAS-1001G-2C

Digital I/O EDAS, with RS-485 I/O, OEM Version

EDAS-1001E-SK1

Digital I/O EDAS Starter Kit(90-120VAC)

EDAS-1001E-SK2

Digital I/O EDAS Starter Kit(230VAC)



EDAS-1001E Çϵå¿þ¾î »ç¾ç

Parameter

Conditions

Specification

Digital I/O

Number of Ports

8 channels (bits) each

4, programmable for in or out

Input Levels



TTL-compatible (Schmitt Trigger)

Input Current



Port 0-2 (High Level/Low Level)

Port 3 (High Level/Low Level)

20¥ìA / 200¥ìA

5¥ìA / 5¥ìA

Output Levels



TTL compatible

Output Current



Port 0-2 (Source/Sink)

Port 3 (Source/Sink)

15mA/ 24mA

15mA/ 64mA

Counters

General Purpose



24-Bit

  Number of Channels



up to 32

  Max Input frequency

TTL-level input

250Hz

High Speed



16-Bit

  Number of Channels



2

  Max Input frequency

TTL-level input

250kHz

Serial Ports

RS-232

  Connector



DE-9

  Communication



Serial Asynchronous, ASCII

  Supply Voltages

3k ohm Load

±6V TX

RS-485 (EDAS-1001E-2A)

  Connector



3-wire screw terminal block

  Communication



Serial Asynchronous, ASCII

  Isolation

1 Minute

1600Vrms

Network Interface

Type



Ethernet 10Base-T (RJ45)

System Throughput

Unloaded network

2.8kHz

Power

Voltage Range

AC or DC

15 to 28 VAC, 20 to 40 VDC

Current Requirements (*1)

24VAC, No Load/1A Load

200mA/500mA

Physical Characteristics

Size



6.00" D x 5.57" W x 1.52" H
15.24 cm D x 14.15 cm W x 3.86 cm H

Operating Temperature Range



0 to 50¡É

All Specifications are typical at 25¡É unless otherwise noted.
Note (*1): The on-board power supply circuit can supply up to 1 A @5 VDC to termination panels through the 34-pin I/O connectors.



EDAS-1001E Çϵå¿þ¾î »çÁø

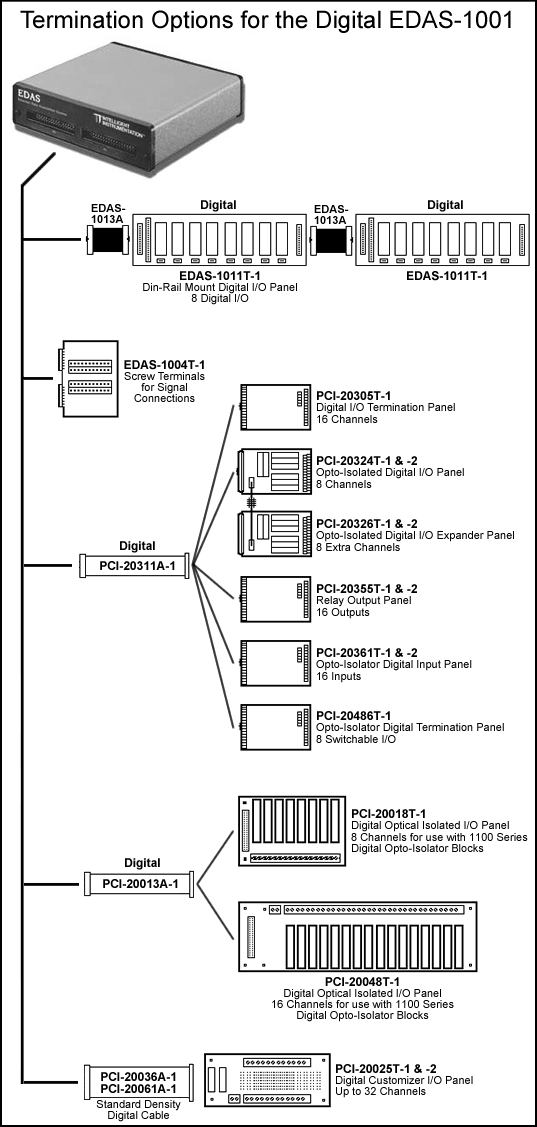

Digital EDAS Å͹̳Πº¸µå ¿¬°áµµ
