PA358 Analog Output Board





 Analog Output Channels

square02_darkbluegreen.gif 4, 6 or 8 Output Channels

square02_darkbluegreen.gif 12-bit Resolution

square02_darkbluegreen.gif Setting Time 3.5 §Á typ. Max. 10 §Á

square02_darkbluegreen.gif Output Volatge : ±10V, 0-10V, ±5V, 0-5V

  0-20mA, 4-20mA

square02_darkbluegreen.gif Each channel can be set Unipolar/Bipolar

  through Jumper(mixed Unipolar/Bipolar

  mode possible)

square02_darkbluegreen.gif Voltage or Current Output Channels

square02_darkbluegreen.gif Reset of the DACs to a defined Output

  Value(Unipolar or Bipolar Zero)

square02_darkbluegreen.gif Seperate setting of each channel or

  Simultaneous for all channels

square02_darkbluegreen.gif Drivers for High Capacitive Loads

square02_darkbluegreen.gif Watchdog for the Monitoring of the Output

square02_darkbluegreen.gif Address through DIP Switches

square02_darkbluegreen.gif Software Trigger



CE Certification

square02_darkbluegreen.gif EN 50082-2, EN 55011, EN 55022

Safety

square02_darkbluegreen.gif Watchdog Function

square02_darkbluegreen.gif All Analog Output Channles with EMI

  Suppression Filters

square02_darkbluegreen.gif Voltage Reversal Protection

square02_darkbluegreen.gif Short-Circuit Protection

square02_darkbluegreen.gif Each Channel has its own Ground Line

square02_darkbluegreen.gif Noise Neutralization of the PC Supply



Áö¿ø ¼ÒÇÁÆ®¿þ¾î

square02_darkbluegreen.gif Standard Drivers :

  - Windows 2000/NT/98/95

  - Windows 3,11, MS-DOS

square02_darkbluegreen.gif Samples programs :

  - Microsoft C 6.0

  - Borland C 3.1

  - Visual Basic 1.0

  - Turbo Pascal 7.0

square02_darkbluegreen.gif On request :

  - LabVIEW 5.01

  - LabWindows/CVI 5.01

  - Microsoft VC++ 5.01

  - Borland C++ 5.0

  - Visual Basic 4.0

  - Delphi 4.0



ÀÀ¿ë ºÐ¾ß

square02_darkbluegreen.gif Industrial Machine Automation

square02_darkbluegreen.gif Motor Control

square02_darkbluegreen.gif Programmable Voltage Source

square02_darkbluegreen.gif Programmable Current Sink

square02_darkbluegreen.gif Electronic Test

square02_darkbluegreen.gif Heater Control





¸ð µ¨ ¹ø È£

ºñ       °í

PA358-4

4 Analog Volatge Outputs

PA356-6

6 Analog Volatge Outputs

PA356-8

8 Analog Volatge Outputs

PA358-4C

4 Analog Current Outputs

PA358-6C

6 Analog Current Outputs

PA358-8C

8 Analog Current Outputs

Accessories

PX901-A

Screw Terminal Board with transorb diodes for Analog I/O

PX901-AG

Screw Terminal Board for DIN-rail

PX901-ZG

Screw Terminal Board for Current Output, DIN-rail

ST010/ST011

Standard Shielded, Twisted pairs Round ÄÉÀ̺í, 2m/5m



PA358 Çϵå¿þ¾î »ç¾ç

Parameter

Descriptions

Analog Output

Number of Channels

4, 6 or 8

Output Type

Voltage or Current outputs

Output Filter

EMI

Resolution

Bipolar : 14-bit, Unipolar : 13-bit

Output Range





0-10V, ±10V, 0-5V, ±5V, (0)4-20mA

Voltage range seletable for each channel,

mixed Bipolar and Unipolar mode possible

Setting Time

Unipolar 2 §Á, Bipolar 3§Á, Max. 10 §Á

Integral non-Linearity(INL)

Voltage Outputs : ±1/2LSB, Current Outputs : ±2LSB

Differential non-Linearity(DNL)



Voltage Outputs : ±1/2LSB(monotonic)

Current Outputs : ±1LSB

Bipolar Zero Offset

±10mV

Unipolar Zero Offset

±0.5mV

Max. Load

5 mA // 500 pF

Watchdog Time

5ms, 500ms, 5s

Noise Immunity

Test Level







- ESD: 4kV

- Field: 10V/m

- Burst: 4kV

- Conducted radio interferences: 10V

Physical & Environmental Conditions

Dimensions

153 x 114mm

System Bus

ISA AT slot

Space Required

1 short slot

Operating Voltage



+5V, ±5%, 12V from the PC, 24V External for version

PA 358-4C, PA 358-6C, PA 358-8C

Current Consumption



Voltage Outputs at 5V 60mA ±5%

Current Outputs at 5V 260mA ±5%

Front Connector

37-pin SUB-D male connector

Temperature Range

0 to 60 ¡É(with forced cooling)

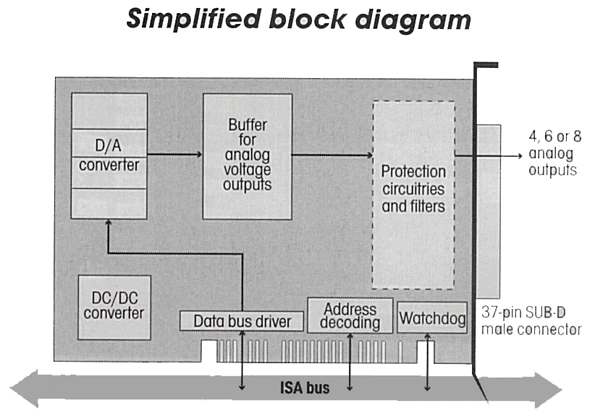

PA358 Block Diagram

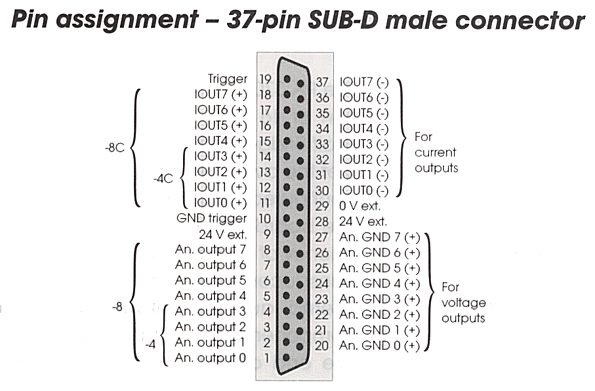

PA358 Connector



PA358 Å͹̳Πº¸µå ¿¬°áµµ
