PA3500 Isolated Analog Output Board

Analog Output Channels

4 or 8 Output Channels

14-bit Resolution

Setting Time 30 to 45 ㎲

Output Volatge : ±10V, 0-10V or

4-20mA, 5-25mA

Unipolar/Bipolar Programmable for each

Channel

Programmable Interrupt :

IRQ 3, 4, 5, 6, 7, 9, 10, 11, 12, 14, 15

4 Programmable Mode :

Trigger, Synchronising, Interrupt and Polling

Address through DIP Switches

Small Address Range : max. 4 Bytes

Digital I/O

Fast Digital Trigger Input channel

(Optical Couplers) for Controlling one

Output channel

2 Input & 2 Output Channels, 24V, Isolated

Safety

Optical Isolation 500V

All Analog Output Channles with EMI

Suppression Filters

Noise Neutralization of the PC Supply

지원 소프트웨어

Standard Drivers :

- Windows 2000/NT/98/95

- Windows 3,11, MS-DOS

Real-Time Driver Windows 2000/NT/98/95

LabVIEW 5.01

Samples programs :

- Microsoft VC++ 5.0/Microsoft C 6.0

- Borland C++ 5.01/Borland C 3.1

- Visual Basic 1.0/5.0

- Turbo Pascal 7.0

On request :

- LabWindows/CVI 5.01

- Diadem 6

- Delphi 4.0

CE Certification

EN 50082-2, EN 55011, EN 55022

응용 분야

Industrial Machine Automation

Motor Control

Programmable Voltage Source

Programmable Current Sink

Electronic Test

Heater Control

모 델 번 호

비 고

PA3500-4

4 Analog Volatge Outputs, 4 DI/O

PA3500-8

8 Analog Volatge Outputs, 4 DI/O

PA3500-4C

4 Analog Current Outputs, 4 DI/O

PA3500-8C

8 Analog Current Outputs, 4 DI/O

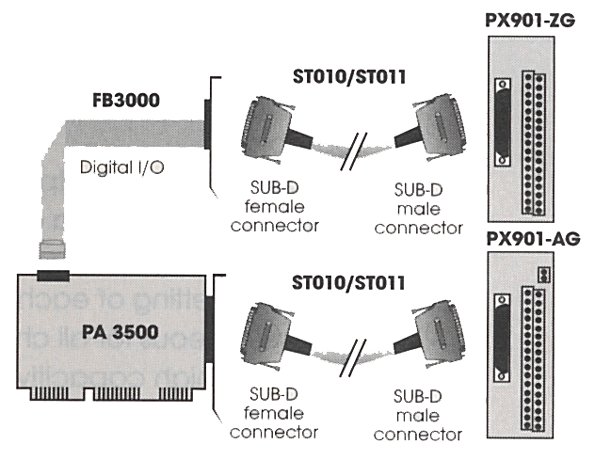

Accessories

PX901-A

Screw Terminal Board with transorb diodes for Analog I/O

PX901-AG

Screw Terminal Board for DIN-rail

PX901-ZG

Screw Terminal Board for DIN-rail, Digital I/O

ST010/ST011

Standard Shielded, Twisted pairs Round 케이블, 2m/5m

FB3000

Ribbon Cable for Digital I/O

PA3500 하드웨어 사양

Parameter

Descriptions

Analog Output

Number of Channels

4 or 8

Output Type

Voltage or Current outputs

Optical Isolation

500V

Output Filter

EMI

Resolution

Bipolar : 14-bit, Unipolar : 13-bit

Output Range

0-10V, ±10V, Optional : 0-20mA, 4-20mA, 5-25mA

Voltage range programmable individually for each channel,

Bipolar and Unipolar Switching

Setting Time

Voltage Outputs : typ. 30 ㎲(from -10V to +10V)

Option P : 32㎲(20V step)

Current Outputs : typ. 45 ㎲(20mA Step)

Integral non-Linearity(INL)

Voltage Outputs : ± 4 LSB, Current Outputs : ± 4 LSB

Differential non-Linearity(DNL)

Voltage Outputs : ± 4 LSB, Current Outputs : ± 7 LSB

Bipolar Zero Offset

± 16 LSB

Max. Load

Volatge Outputs : 5 mA at 10V

Current Outputs : 500Ω at 20mA

Interrupt Lines

IRQ 3, 4, 5, 6, 7, 9, 10, 11, 12, 14, 15 Programmable

Watchdog

Time : 4.2 s, Software Programmable

Digital I/O

Input Channels

1 Trigger Inputs, Optical Coupler, 5V, Interruptible
2 Digital Inputs, 24V, Interruptible, Input Current 6mA

Output Channels

2 Digital Outputs, Open Collector, 5-24V

typ. Collector Current 1-10mA

Noise Immunity

Test Level

- ESD: 4kV

- Field: 10V/m

- Burst: 4kV

- Conducted radio interferences: 10V

Physical & Environmental Conditions

Dimensions

160 x 99 mm

System Bus

ISA AT slot

Space Required

1 slot for the Analog Output, 1 slot opening for the Digtal I/O

Operating Voltage

+5V, ±5% from the PC, for Version C 24V External

Current Consumption

450mA ±5% typ.

Front Connector

37-pin SUB-D male connector

16-pin male connector for ribbon cable for Digital I/O

Temperature Range

0 to 60 ℃(with forced cooling)

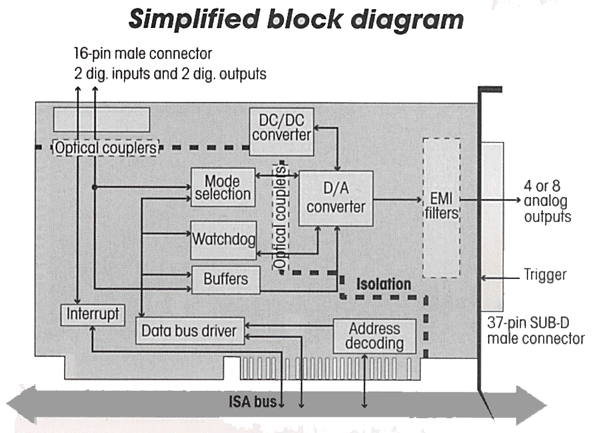

PA3500 Block Diagram

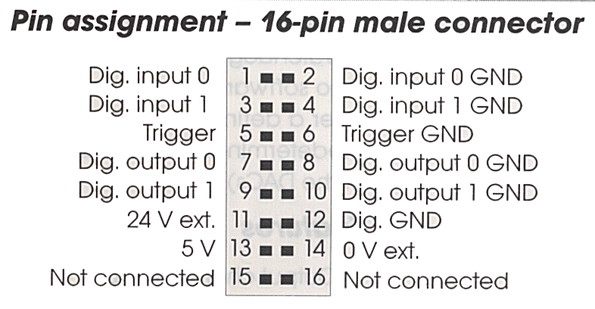

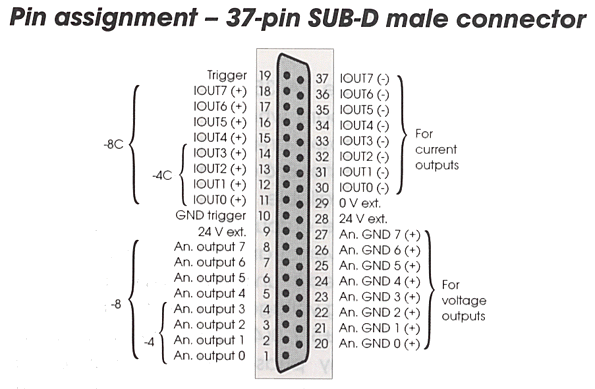

PA3500 Connector

PA3500 터미널 보드 연결도
