PA3100 / PA311  Analog I/O Board





Analog Input Channels

square02_darkbluegreen.gif 16SE/8Diff. Input Channels, or

  8SE/4Diff. Input Channels

square02_darkbluegreen.gif Resolution :

  - PA3110 : 12-bit

  - PA311   : 16-bit

square02_darkbluegreen.gif Conversion Time : 10 §Á

square02_darkbluegreen.gif Overvoltage Protection : ±12V

square02_darkbluegreen.gif Input Voltage : ±10V, 0-10V Software

  programmable, 0-20mA Optional

square02_darkbluegreen.gif Low-pass Filters and Current Input

  Channels as Option

square02_darkbluegreen.gif Gain 1, 2, 10 freely Programmable through

  Software for each Channel or freely

  through Resistor

square02_darkbluegreen.gif DMA access for Analog Data Acquisition

square02_darkbluegreen.gif 3 Timers : Timer 0 and Timer 1 only for

  Analog Acquisition, Timer 2 as Cyclic

  Time-Counter Programmable



Analog Acquisition

square02_darkbluegreen.gif Automatic Analog Acquisition through

  Cyclic-Timer Control

square02_darkbluegreen.gif Acquisition Triggered through Software or

  Timer

square02_darkbluegreen.gif Interrupt : End of Single Channel, End of

  MultiChannel, End of Scan List



Timer/Digital

square02_darkbluegreen.gif 3 x 16-bit Timers(82C54)

square02_darkbluegreen.gif Parallel TTL I/O port, 24 I/O, Interruptible

  (82C54)





Analog Output Channels

square02_darkbluegreen.gif 2, 4 or 8 Output Channels

square02_darkbluegreen.gif Resolution :

  - PA3100 : 12-bit

  - PA311   : 16-bit

square02_darkbluegreen.gif Setting Time typ. 6§Á (0-10V)

square02_darkbluegreen.gif Simultanous Updating of the Output Ch.

square02_darkbluegreen.gif Output Voltage : ±10V, 0-10V

square02_darkbluegreen.gif Each Output has its own GND Line

  (without Optical Isolation)

square02_darkbluegreen.gif Driver Capacity : 5mA/500pF



Safery Features

square02_darkbluegreen.gif Noise Neutralization of the PC Supply



Áö¿ø ¼ÒÇÁÆ®¿þ¾î

square02_darkbluegreen.gif Standard Drivers :

  - Windows 2000(PA 311)

  - Windows NT/98/95, Windows 3.11

  - MS-DOS

square02_darkbluegreen.gif Real Time Drivers :

  - Windows 2000/NT/98/95

square02_darkbluegreen.gif LabVIEW 5.01

square02_darkbluegreen.gif Samples programs :

  - Microsoft VC++ 5.0/Microsoft C 6.0

  - Borland C++ 5.01/Borland C 3.1

  - Visual Basic 1.0/5.0(PA 311)

  - Turbo Pascal 7.0

square02_darkbluegreen.gif On request :

  - LabWindows/CVI 5.01

  - Diadem 6(PA 311)



CE Certification

square02_darkbluegreen.gif EN 50082-2, EN 55011, EN 55022



ÀÀ¿ë ºÐ¾ß

square02_darkbluegreen.gif Industrial Process Control

square02_darkbluegreen.gif Industrial Measurement & Monitoring

square02_darkbluegreen.gif Automatic Test Equipment

square02_darkbluegreen.gif Temperature Monitoring & Control

square02_darkbluegreen.gif Control of Chemical Processes

square02_darkbluegreen.gif Factory Automation

square02_darkbluegreen.gif Automated Testing

square02_darkbluegreen.gif Voltage Measurement

square02_darkbluegreen.gif Laboratory Instrumentation



¸ð µ¨ ¹ø È£

ºñ       °í

PA3100 : 12-bit

PA3100-162

16 SE/8 DIFF Analog Inputs, 2 Analog Outputs

PA3100-164

16 SE/8 DIFF Analog Inputs, 4 Analog Outputs

PA3100-168

16 SE/8 DIFF Analog Inputs, 8 Analog Outputs

Options

Option SF

Filter for 1 Single-ended Input Channel

Option DF

Precision Filter for 1 Differential Input Channel

Option SC

Current Inputs 0(4)-20mA for 1 Single-ended Input Channel

Option DC

Current Inputs 0(4)-20mA for 8 Differencial Input Channel

PA311 : 16-bit

PA311-8-2

8 SE/4 DIFF Analog Inputs, 2 Analog Outputs

PA311-8-4

8 SE/4 DIFF Analog Inputs, 4 Analog Outputs

PA311-8-8

8 SE/4 DIFF Analog Inputs, 8 Analog Outputs

PA311-16-2

16 SE/8 DIFF Analog Inputs, 2 Analog Outputs

PA311-16-4

16 SE/8 DIFF Analog Inputs, 4 Analog Outputs

PA311-16-8

16 SE/8 DIFF Analog Inputs, 8 Analog Outputs

Options

Option SF

Filter for 1 Single-ended Input Channel

Option DF

Precision Filter for 1 Differential Input Channel

Option PC







Current Inputs 0(4)-20mA and Prscision resistor

250§Ù Tol. 0.01%; TK 5; 1/4 §Ù;

Option PC-SE : For 1 Single-ended Input

Option PC-Diff : For 1 Differential Input

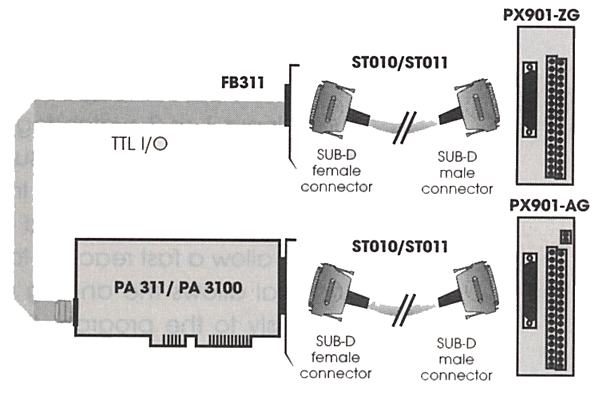

Accessories

PX901-A

Screw Terminal Board for Analog I/O

PX901-AG

Screw Terminal Board for DIN-rail for Analog I/O

ST010/ST011

Standard round cable, Shielded, Twisted pairs, 2m/5m

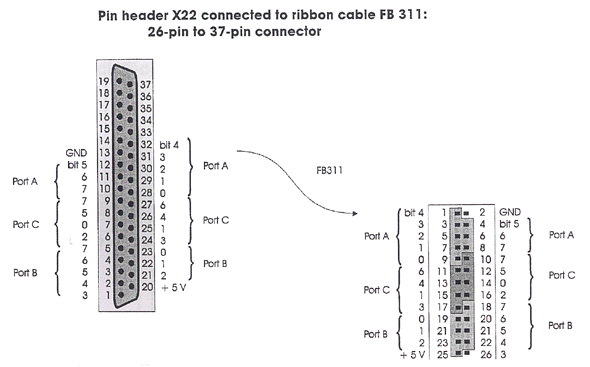

FB311

Ribbon Cable for DIgital I/O

PX901-ZG

Screw Terminal Board for DIN-rail (TTL I/O)



PA3100/ PA311 Çϵå¿þ¾î »ç¾ç

Parameter

Descriptions

Analog Input

Number of Channels





PA3100  : 16 Single-ended/8 Differential

PA311   : 16 Single-ended/8 Differential

 or 8 Single-ended/4 Differential

Resolution

PA3100 : 12-bit;  PA311 : 16-bit

Input Range



0-10V, ±10V adjustable for each channel through Software

0-20mA Optional

Conversion Time

10 §Á

Gain

Programmable Gain(x1, x2, x10) or free through resistor

Overvoltage Protection

± 12V at Power On

Common Mode Rejection

DC at 60Hz, 90 dB minimum

Integral non-Linearity(INL)

PA3100 : ±1LSB;  PA311 : ± 4 LSB

Differential non-Linearity(DNL)

PA3100 : ±1LSB;  PA311 : 15-bit

Input Impedance



1012 §Ù // 10nF Single-ended,

1012 §Ù // 20nF Differential against GND

Conversion Start

Through Software or programmable Timer

Interrupts

IRQ 3, 5 for XT, IRQ 10, 11, 12, 14, 15 for AT

DMA

5, 6, 7

Analog Output

Output Channels/Resolution

2, 4 or 8 Analog Output Channels/ 16-bit

Output Range

0-10V, ±10V

Setup Time at 2 §Ú, 1000 pF



From 6 to 10 §Á depending on Voltage spikes and

Temperature Range

Overvoltage Protection

± 12V

Max. Output Current/Load

± 5 mA / 500 pF, 2 §Ú

Short-Circuit Current

± 25 mA( has to be Limited Externally )

Integral non-Linearity(INL)

± 1/2 LSB Max. at 25¡É, ±1 LSB through Temp. range

Differential non-Linearity(DNL)

± 1/2 LSB Max. at 25¡É, ±1 LSB through Temp. range

Noise Immunity

Test Level







- ESD: 4kV

- Field: 10V/m

- Burst: 4kV

- Conducted radio interferences: 10V

Physical & Environmental Conditions

Dimensions

337 x 114 mm

System Bus

ISA

Space Required

1 AT slot + 1 slot opening(TTL port)

Operating Voltage

+5V, ±5% from the PC

Current Consumption



PA3100-168 : 1220 mA typ.

PA311-16-8 : 1270 mA typ.

Front Connector

37-pin SUB-D male connector





26-pin SUB-D male connector for ribbon cable

for connecting the TTL I/O

Temperature Range

0 to 60 ¡É(with forced cooling)



PA3100 / PA 311 Block Diagram

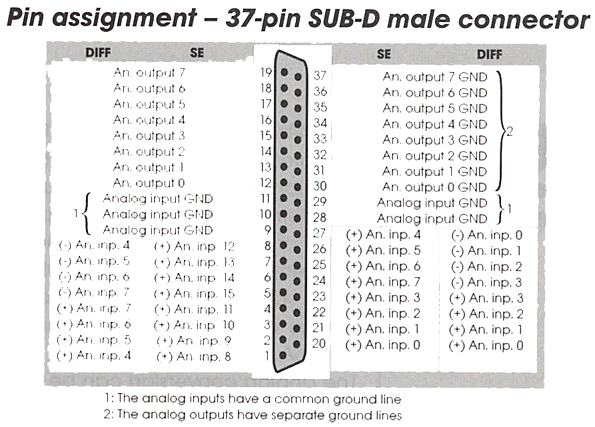

PA 3100 / PA 311 Connector



PA3100 / PA311 Å͹̳Πº¸µå ¿¬°áµµ
