PA3000 Isolated Analog Input Board





Analog Input Channels

square02_darkbluegreen.gif Input Channels : 16/8/4 Differential Input

  or 16/8/4 Single-Ended

square02_darkbluegreen.gif 12-bit Resolution

square02_darkbluegreen.gif Data Transfer Rate : 142kHz

square02_darkbluegreen.gif Input Voltage : ±10V, 0-10V,   Programmable through Software

  0-20mA Optional(Option D2C)

square02_darkbluegreen.gif Sequence RAM(Sequence scan)

square02_darkbluegreen.gif Gain: 1, 2,5, 10, 20, 50, 100, 200, 500,

  1000 freely Programmable through

  Software for each Channel

square02_darkbluegreen.gif Conversion through Software or External

  Trigger

square02_darkbluegreen.gif DMA access : Channels 5, 6 & 7

  (2-Channel DMA) Toggle DMA

square02_darkbluegreen.gif 16-bit access for the Analog Value,

  8-bit for all other accesses

square02_darkbluegreen.gif Software Programmable Interrupt: IRQ 3, 5

  for XT, IRQ 9, 10, 11, 12, 14, 15 for AT

square02_darkbluegreen.gif 3 Timers : Timer 0 and Timer 1 only for

  Analog Acquisition, Timer 2 as Cyclic

  Time-Counter



Digital I/O

square02_darkbluegreen.gif 4 Isolated Input Channels, 24V

square02_darkbluegreen.gif 4 Isolated Output Channels, 24V



Safery Features

square02_darkbluegreen.gif Optical Isolation 500V min.

square02_darkbluegreen.gif Protection against High-Frequency EMI

square02_darkbluegreen.gif Noise Neutralization of the PC Supply

Analog Acquisition

square02_darkbluegreen.gif Automatic Analog Acquisition through

  Cyclic-Timer Control

square02_darkbluegreen.gif Acquisition Triggered through Software,

  Timer, External Event

square02_darkbluegreen.gif Trigger Functions

  - Software Trigger or

  - External Trigger : The Analog Acquisition

     (Single or Scan) is started through a

     Signal Switching from 0-24V on Digital

     Input Channel 0.

square02_darkbluegreen.gif Interrupt : End of Single Channel, End of

  MultiChannel, End of Scan List



Áö¿ø ¼ÒÇÁÆ®¿þ¾î

square02_darkbluegreen.gif Standard Drivers :

  - Windows 2000/NT/98/95

  - WIndows 3.11, MS-DOS

square02_darkbluegreen.gif Real Time Drivers :

  - Windows 2000/NT/98/95

square02_darkbluegreen.gif LabVIEW 5.01

square02_darkbluegreen.gif Samples programs :

  - Microsoft VC++ 5.0/Microsoft C 6.0

  - Borland C++ 5.01/Borland C 3.1

  - Visual Basic 1.0/5.0

  - Delphi 4

  - Turbo Pascal 7.0

square02_darkbluegreen.gif On request :

  - LabWindows/CVI 5.01

  - Diadem 6



CE Certification

square02_darkbluegreen.gif EN 50082-2, EN 55011, EN 55022



ÀÀ¿ë ºÐ¾ß

square02_darkbluegreen.gif Industrial Process Control

square02_darkbluegreen.gif Industrial Measurement & Monitoring

square02_darkbluegreen.gif Signal Analysis

square02_darkbluegreen.gif Acquisition of Sensor Data

square02_darkbluegreen.gif Labor Instrumentation

square02_darkbluegreen.gif Current Measurement











¸ð µ¨ ¹ø È£

ºñ       °í

PA3000-4

4 ä³Î SE/DIFF Analog Inputs, 4/4 DI/O

PA3000-8

8 ä³Î SE/DIFF Analog Inputs, 4/4 DI/O

PA3000-16

16 ä³Î SE/DIFF Analog Inputs, 4/4 DI/O

Options

D2C

Current Inputs 0(4)-20mA for 1 Differential Inputs

D2F

Precision Filter for 1 Differential Inputs

Accessories

PX901-A

Screw Terminal Board

PX901-AG

Screw Terminal Board for DIN-rail

PX901-ZG

Screw Terminal Board for DIN-rail

ST010/ST011

Standard Shielded, Twisted pairs Round ÄÉÀ̺í, 2m/5m

FB3000

Ribbon Cable with bracket, for Digital I/O



PA3000 Çϵå¿þ¾î »ç¾ç

Parameter

Descriptions

Analog Input

Number of Channels

4/8/16 Single-ended or 4/8/16 Differential

Resolution

12-bit

Max. Throughput

(for 1 input channel) 142kHz(7§Á) Limited through Software

Data Data Transfer Rate







Data to the PC (16-bit only)

- Through I/O Commands

- Interrupt at end of conversion(EOC)

- DMA transfer at end of conversion

Input Range



0-10V, ±10V set for each channel through Software

0-20mA Optional

Input Impedance

1012 §Ù // 20nF against GND

Gain



1, 2, 5, 10, 20, 50, 100, 200, 500, 1000

Software Programmable for each channel

Overvoltage Protection

70V. p.p at Power On

Common Mode Rejection

From 80dB to 10Hz at Gain = 1

Offset Error

± 0.5 LSB

Gain Error

± 0.5 LSB

Trigger

Through Software, External Trigger or Timer 0 and 1

Interrupts

IRQ 3, 5 for XT, IRQ 9, 10, 11, 12, 14, 15 for AT

DMA

5, 6, 7(1- or 2-Channel Access)

Timer Configuration

Timer 0

Timer 1

Timer 2



0.7§Á; smallest programmable value; 7§Á

70§Á; smallest programmable value; 140§Á

70§Á; smallest programmable value; 140§Á

Digital I/O

Number of Input Channels

4 Input Channels, 24V, Isolated

Isolation

1000V through Optical Couplers

Input Current at 24V

3 mA typ.

Input Range





0-30V

- Logic "0" : 0-5V

- Logic "1" : 10-30V

Number of Output Channels

4 Output Channels, 24V, Isolated

Max. Switching Current

5 mA typ.

Output Range

5-30V

Noise Immunity

Test Level







- ESD: 4kV

- Field: 10V/m

- Burst: 4kV

- Conducted radio interferences: 10V

Physical & Environmental Conditions

Dimensions

190 x 99 mm

System Bus

ISA

Space Required



1 slot(AT) for Analog Input Channels

1 slot opening for connecting the Digtal I/O with FB3000

Operating Voltage

+5V, ±5%

Operating Voltage/Current

from 590mA to 630mA typ. ±10% depending on the board

Front Connector

37-pin SUB-D male connector

Additional Connector



16-pin male connector for ribbon cable

for connecting the Digital I/O channels

Temperature Range

0 to 60 ¡É(with forced cooling)

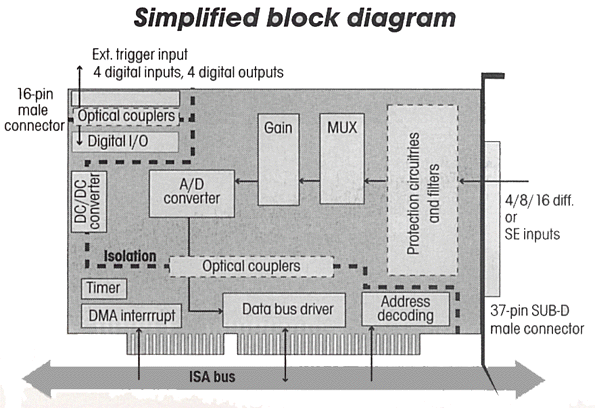

PA3000 Block Diagram

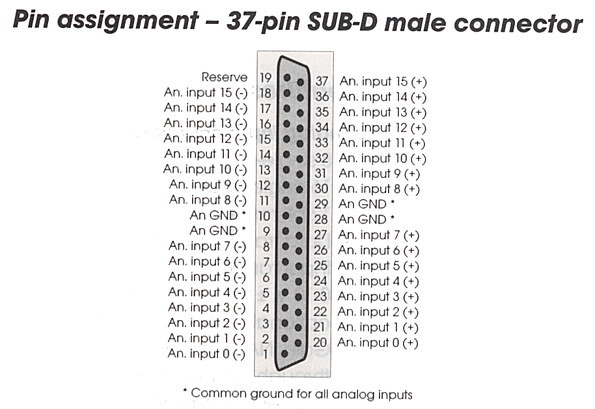

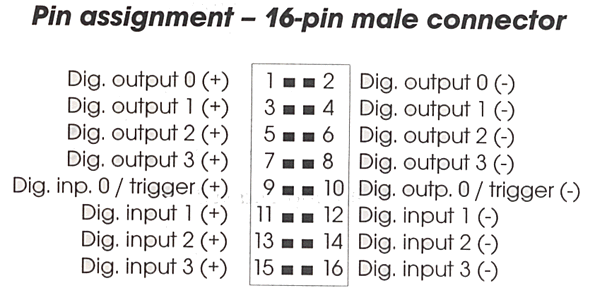

PA3000 Connector

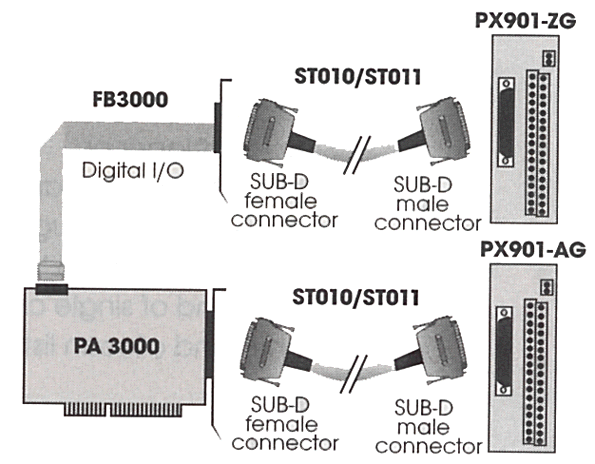

PA3000 Å͹̳Πº¸µå ¿¬°áµµ
