PA2200 Isolated Relay Output & Digital Input Board





Relays

square02_darkbluegreen.gif 8 or 16 Electromechanical Relays with

  Change-over Contacts

square02_darkbluegreen.gif Max. Switching Voltage for the Relays

  60VDC, 48VAC

square02_darkbluegreen.gif Max. Switching Capacity : 30W, Max. 1A

square02_darkbluegreen.gif Short Response Time



Digital Input Channels : Option

square02_darkbluegreen.gif 8 Isolated VAC Input Channels

square02_darkbluegreen.gif Input Voltage : 12-24V(AC+DC)

  (5-12V, 48V on Request)

square02_darkbluegreen.gif Watchdog : Software Programmable

  Release, Stop and Time Selection

square02_darkbluegreen.gif Addressing through DIP Switches

square02_darkbluegreen.gif 3 Byte I/O Address Range needed

Safery Features

square02_darkbluegreen.gif EMC Tested

square02_darkbluegreen.gif Watchdog Activity can be Read

square02_darkbluegreen.gif Optical Isolation of the Relays



Áö¿ø ¼ÒÇÁÆ®¿þ¾î

square02_darkbluegreen.gif Standard Drivers :

  - Windows 2000/NT/98/95

  - MS-DOS

square02_darkbluegreen.gif LabVIEW 5.01

square02_darkbluegreen.gif LabWindows/CVI 5.01

square02_darkbluegreen.gif Samples programs :

  - Microsoft VC++ 5.0/Microsoft C 6.0

  - Borland C++ 5.01/Borland C 3.1

  - Visual Basic 1.0/5.0

  - Turbo Pascal 7.0

square02_darkbluegreen.gif On request :

  - Delph 4.0



CE Certification

square02_darkbluegreen.gif EN 55082-2, EN 55011, EN 55022



ÀÀ¿ë ºÐ¾ß

square02_darkbluegreen.gif Industrial Digital I/O Controlling

square02_darkbluegreen.gif Signal Switching

square02_darkbluegreen.gif Interface to Electromechanical Relay

square02_darkbluegreen.gif Automatic Test Equipment

square02_darkbluegreen.gif ON/OFF Monitoring of Motors, Lights ...

square02_darkbluegreen.gif Alarm Monitoring

square02_darkbluegreen.gif Machine Interfacing, ...



¸ð µ¨ ¹ø È£

ºñ       °í

PA2200-16-8

16 Relay Outputs, 8 Digital Input Channels

PA2200-8-8

8 Relay Outputs, 8 Digital Input Channels

PA2200-16

16 Relay Outputs

PA2200-8

8 Relay Outputs

Accessories

PX8000

Screw Terminals Board, 50-pin for DIN-rail

ST370-16

Standard Shielded, Twisted pairs Round ÄÉÀ̺í, 2m(50-pin)

ST010

Standard Shielded, Twisted pairs Round ÄÉÀ̺í, 2m(37-pin)

FB2200-3

40-pin Ribbon Cable

PX901-ZG

Screw Terminals Board for DIN-rail



PA2200 Çϵå¿þ¾î »ç¾ç

Parameter

Descriptions

Relay Output

Type of Contacts

8/16 Change-Over Contacts

Max. Switching Volatge

60VDC, 48VAC

Max. Switching Current

1A

Max. Switching Capacity

30W

Contact Resistance

< 100 m§Ù

Contact Material

Ag + Au Plated

Responding Time

Max. 5 ms, typ. 2.5 ms

Release Time

Max. 5 ms, typ. 0.9 ms

Mechanical Life

5 x 106  Operations

Digital Input(Option)

Number of Channels

8

Isolation

Through Optical Couplers, 1000V

from the PC to the peripheral

Input Resistance



- Optical Coupler in Blocking State : 2 §Ú

- Optical Coupler in Conducting State : 1 §Ú

Nominal Voltage



12-24V (AC+DC)

5-12V or 48V (AC+DC) on Request

Norminal Input Current





- At 5-12 V : 5mA

- At 12 VAC : 11mA

- At 24 VAC : 23mA

Signal Delay

70 §Á ( at 24V )

Maximum Input Frequency

5 kHz ( at 24V )

Watchdog

Watchdog

Software Selectable 294 ms / 4.69 s

Safety

Test Voltage

1000V

Noise Immunity

Test Level







- ESD: 4kV

- Field: 10V/m

- Burst: 4kV

- Conducted radio interferences: 10V

Physical & Environmental Conditions

Dimensions approx.

169 x 99 mm

System Bus

ISA

Space Required



Short board, 1 slot AT or XT slot

+ 1 slot for connecting the inputs(via FB2200-3)

Operating Voltage/Current

+5V, ±5% from the PC/ 250mA typ.

Front Connector

50-pin SUB-D male connector

Additional Connector



34-pin Ribbon Cable connector

Connection with 34-pin ribbon cable FB2200-1. Connects

the board to a bracket with a 37-pin SUB-D male Connector.

For connecting the PX901-ZG

Temperature Range

0 to 60 ¡É(with forced cooling)

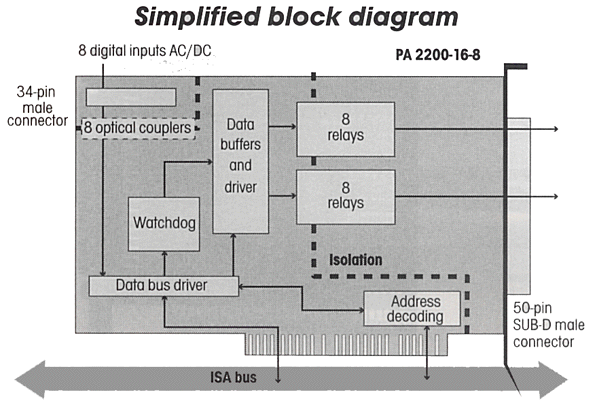

PA2200 Block Diagram

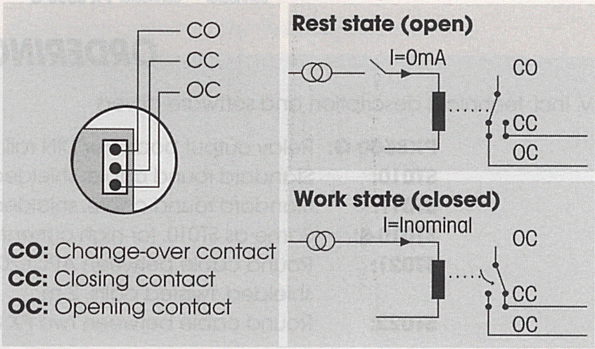

PA2200 Relay Function Principle

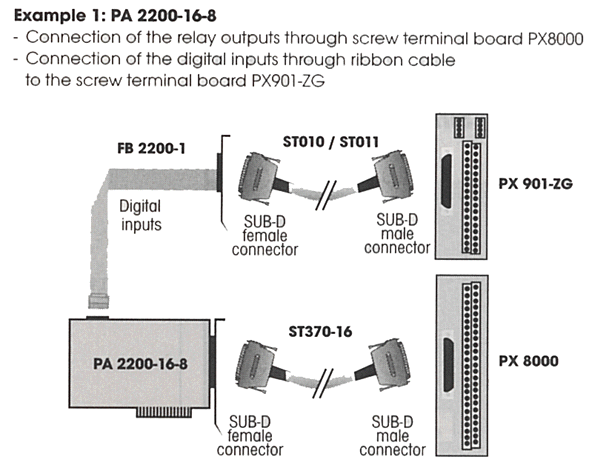

PA2200 Connector

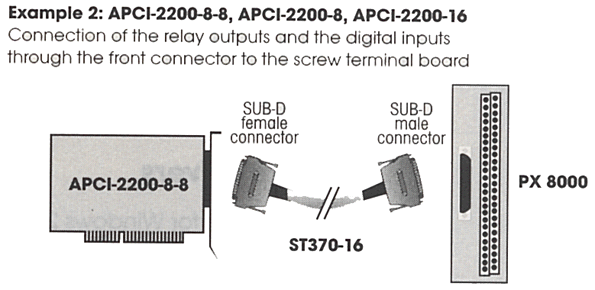

PA2200 Å͹̳Πº¸µå ¿¬°áµµ
