CPCI-7500 4-port Serial Interface Board





Çϵå¿þ¾î Ư¡

square02_darkbluegreen.gif CompactPCI Interface to the 32-bit Data

square02_darkbluegreen.gif MTBF : 98551 Hours at 45¡É

square02_darkbluegreen.gif Asynchronous Communication Adapter,

  4-port Seial Interface

square02_darkbluegreen.gif 4 Sockets for MX Modules

square02_darkbluegreen.gif Modular Structure through MX Modules

square02_darkbluegreen.gif Configurable as RS232, RS422, RS485

  with or without Optical Isolation, 20mA

  Current Loop(Active, Passive), with Optical

  Isolation through Seperate MX modules

square02_darkbluegreen.gif Automatic Addressing through BIOS

square02_darkbluegreen.gif Automatic Module Identification

square02_darkbluegreen.gif 128-Byte FIFO buffers for each Transmitter

  and Receiving Buffer

square02_darkbluegreen.gif Common Interrupt

square02_darkbluegreen.gif Programmable Transfer Rate

  - Standard : 19.2 to 115.2kBaud

  - Option : 1MBaud for RS232, RS422,

     RS485

square02_darkbluegreen.gif 5-, 6- or 8-bit Character

square02_darkbluegreen.gif 1, 1 1/2 or 2 Stop Bits

square02_darkbluegreen.gif Parity : Even, Odd or None

square02_darkbluegreen.gif Automatic Transmitter Control for RS485

  and Receiver Control through FIFO Level

Safery Features

square02_darkbluegreen.gif MX modules with Optical Isolation up to

  1000V Available

square02_darkbluegreen.gif Protection against Fast Transients(Burst)

square02_darkbluegreen.gif Short-Circuit Protection for RS422 & RS485

square02_darkbluegreen.gif Detection of False Start Bits

square02_darkbluegreen.gif Possibility of Internal Diagnostic, Break,

  Parity, Overrun and Framing Error



Áö¿ø ¼ÒÇÁÆ®¿þ¾î

square02_darkbluegreen.gif Standard COM Driver

  - Windows 2000/NT/98/95/EmbeddedNT

square02_darkbluegreen.gif Samples programs :

  - Microsoft VC++ 5.0

  - Visual Basic 5.0

  - Delphi 4.0

square02_darkbluegreen.gif On request :

  - Driver for Linux kernel version 2.2.18

  - MS-DOS

  - Windows 3.11

square02_darkbluegreen.gif In Preparaion :

  - Driver for Linux kernel version 2.4.2

  - MS-DOS

  - Windows 3.11



CE Certification

square02_darkbluegreen.gif EN 50082-2, EN 55011, EN 55022



ÀÀ¿ë ºÐ¾ß

square02_darkbluegreen.gif Industrial Process Control

square02_darkbluegreen.gif Data Acquisition

square02_darkbluegreen.gif Industrial Serial Communication

square02_darkbluegreen.gif Multi-user Systems

square02_darkbluegreen.gif Modem and Printer Control

square02_darkbluegreen.gif Multidrop Applications

square02_darkbluegreen.gif ...



¸ð µ¨ ¹ø È£

ºñ       °í

CPCI-7500

4-port Serial Interface Board, 3U European Size

Option

URS-7500

CPCI-7500 board with 6U bracket for mounting in a 6U Housing

MX Modules

MX232-G

RS232 Mode with Optical Isolation Module

MX232

RS232 Mode Module

MX422-G

RS422 Mode with Optical Isolation Module

MX422

RS422 Mode Module

MX485-G

RS485 Mode with Optical Isolation Module

MX485

RS485 Mode Module

MXTTY

20mA Current Loop(Active, Passive) mode with Optical Isolation Module

Connection

ST074

Cable, 37-pin to 4 x 25-pin

ST075

Cable, 37-pin to 4 x 9-pin



CPCI-7500 Çϵå¿þ¾î »ç¾ç

Parameter

Descriptions

4-port Serial Interfacet

Mode



RS232, RS422, RS485, 20mA Current Loop(Active, Passive)

with or without Isolation through Seperate MX Modules

Transmmission Mode

Asynchronous, Full or Half Duplex(MX Modules)

Addressing

Automatic through BIOS

Memory

128-byte FIFO buffers for Transmitter and Receiver

Transfer Rate

Programmable up to 1MBaud on Request

Protocol

5-, 6- or 8-bit Character,  1, 1 1/2 or 2 Stop bits

Parity

Even, Odd, None, Mark or Space

Interrupt Lines

Automatic Configuration through BIOS

Safety

Optical Isolation

1000V(MX modules)

Noise Immunity

Test Level







- ESD: 4kV

- Field: 10V/m

- Burst: 4kV

- Conducted radio interferences: 10V

Physical & Environmental Conditions

Dimensions

3U/4TE

System Bus

CPCI 32-bit acc. to specification CompactPCI 2.2

Space Required

CPCI-slot, 3U

Operating Voltage

+5V, ±5% from the PC

Current Consumption

192mA

Front Connector

37-pin SUB-D male connector

Temperature Range

0 to 60 ¡É(with forced cooling)

MTBF

98551 Hours at 45¡É



MX Modules (RS232 & RS422)

Operating Mode

RS232

RS422

The MX Modules can

be freely selected for

each port.

They are not included

with the board and

have to be ordered

seperately.





















Module

MX232-G

MX232

MX422-G

MX422

Optical Isolation 1000V

Yes



Yes



Creeping Distance 3.2mm

Yes



Yes



Short-circuit Protection





Yes

Yes

ESD Protection

Yes

Yes





Burst Protection





Yes

Yes

Duplex

Full

Full

Full/Half

Full/Half

Max. Baud Rate

115.2 kBaud

115.2 kBaud

115.2 kBaud

115.2 kBaud

Modem Control Signals

Software

Software

Automatic

Automatic

Automatic TX Control









Current Consumption

86mA

10mA

46mA

10mA



MX Modules (RS485 & 20mA Current Loop)

Operating Mode

RS485

20mA Current Loop

The MX Modules can

be freely selected for

each port.

They are not included

with the board and

have to be ordered

seperately.





















Module

MX485-G

MX485

MXTTY

Optical Isolation 1000V

Yes



Yes

Creeping Distance 3.2mm

Yes



Yes

Short-circuit Protection

Yes

Yes



ESD Protection







Burst Protection

Yes

Yes

Yes

Duplex

Half

Half

Full

Max. Baud Rate

115.2k, 1MBaud Opt.

115.2k, 1MBaud Opt.

19.2 kBaud

Modem Control Signals

Automatic

Automatic

Automatic

Automatic TX Control

Yes

Yes



Current Consumption

58mA

10mA

75mA

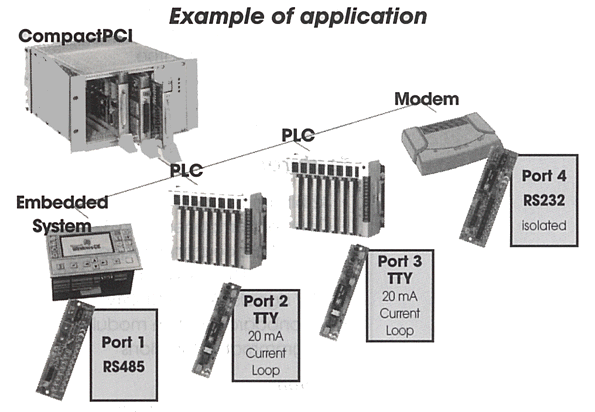

CPCI-7500 Application Example

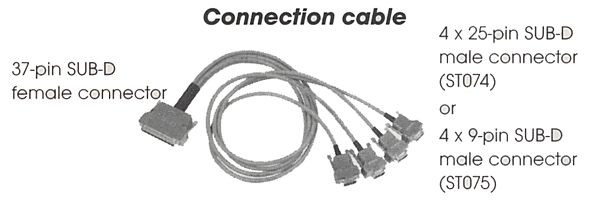

CPCI-7500 Connection
