CPCI-3120 Multifunction I/O Board

하드웨어 특징

CompactPCI Interface to the 32-bit Data

MTBF : 75867 Hours at 45℃

Analog Input Channels

16SE/8Diff. Input Channels, or

8SE/4Diff. Input Channels

16-bit Resolution

Data Transfer Rate : 100kHz

Input Voltage : ±10V, 0-10V, 0-5V, ±5V,

0-2V, ±2V, 0-1V, ±1V, 0-20mA(Option)

Software programmable for each Channel

Gain PGA x1, x2, x5, x10 Software

programmable for each Channel

PCI DMA for Analog Data Acquisition

Input Filter : 160kHz

3 Timers : Timer 0 and Timer 1 only for

Analog Acquisition, Timer 2 as Cyclic

Time-Counter or as Watchdog

Analog Acquisition

Automatic Analog Acquisition through

Cyclic-Timer Control

Acquisition Triggered through Software,

Timer, External Event

Trigger Functions

- Software Trigger or

- External Trigger : The Analog Acquisition

(Single or Scan) is started through a

Signal Switching from 0-24V on Digital

Input Channel 0.

Interrupt : End of Single Channel, End of

MultiChannel, End of Scan List

Digital I/O

4 Isolated Input Channels, 24V

4 Isolated Output Channels, 24V

Analog Output Channels

4 or 8 Output Channels

Setting Time 30㎲ typ.

14-bit Resolution(13-bit for 0-10V)

Output Voltage : ±10V, 0-10V(Software)

Output Voltage after Reset : 0V

Each Output has its own GND Line

(without Optical Isolation)

Driver Capacity : 5mA/500pF

Short-Circuit Protection, EMI Filters

Safery Features

Optical Isolation 500V min.

Overvoltage Protection : ±12V

Protection against High-Frequency EMI

Input Filter : 160kHz

Noise Neutralization of the PC Supply

지원 소프트웨어

Standard Drivers :

- Windows XP/2000/NT/98/95, MS-DOS

Real Time Drivers :

- Windows 2000/NT/98/95

LabVIEW 5.01

Samples programs :

- Microsoft VC++ 5.0/Microsoft C 6.0

- Borland C++ 5.01/Borland C 3.1

- Visual Basic 5.0

- Delphi 4

- Turbo Pascal 7.0

On request :

- LabWindows/CVI 5.01

- Diadem 6

In Preparaion :

- Driver for Linux kernel version 2.4.2

- DasyLab

CE Certification

EN 50082-2, EN 55011, EN 55022

응용 분야

Industrial Process Control

Industrial Measurement & Monitoring

Multichannel Data Acquisition

Control of Chemical Processes

Factory Automation

Acquisition of Sensor Data

Laboratory Equipment

Current Measurement

Instrumentation

모 델 번 호

비 고

CPCI-3120-168

16SE/8DIFF Analog Inputs, 8 Analog Outputs, 8 Digital I/O

CPCI-3120-164

16SE/8DIFF Analog Inputs, 4 Analog Outputs, 8 Digital I/O

CPCI-3120-88

8SE/4DIFF Analog Inputs, 8 Analog Outputs, 8 Digital I/O

CPCI-3120-84

8SE/4DIFF Analog Inputs, 4 Analog Outputs, 8 Digital I/O

Options

URS-3120

CPCI-3120 Board with 6U Bracket for mounting in 6U Housing

Option SF

Filter for 1 Single-ended Channels

Option DF

Precision Filter for 1 Differential Channels(30Hz)

Option PC

Current Inputs 0(4)-20mA for 1 channel
- PC-SE : For Single-ended

- PC-Diff : For Differential(30Hz)

Accessories

PX 901-A

Screw Terminal Board

PX 901-AG

Screw Terminal Board for DIN-rail

PX 901-ZG

Screw Terminal Board for DIN-rail

ST010/ST011

Standard Shielded, Twisted pairs Round 케이블, 2m/5m

FB3001

Ribbon Cable with bracket, for Digital I/O

CPCI-3120 하드웨어 사양

Parameter

Descriptions

Analog Input

Number of Channels

16 Single-ended/8 Differential
or 8 Single-ended/4 Differential

Resolution

16-bit resolution

Isolation

500V through Optical Couplers

from the PC to the Peripherial

Input Range

Software Programmable for each Channel

0-10V, ±10V, 0-5V, ±5V, 0-2V, ±2V, 0-1V, ±1V

0-20mA Optional

Data Transfer Rate

100 kHz

Gain

Software Programmable( x1, x2, x5, x10 )

Common Mode Rejection

DC at 10Hz, 90 dB minimal

Integral non-Linearity(INL)

± 4 LSB

Differential non-Linearity(DNL)

16-bit

Input Impedance

10¹²Ω // 10nF Single-ended,

10¹²Ω // 20nF Differential against GND

Band Width(-3dB)

Limited to 159kHz with Low-Pass Filter

Trigger

through Software, Timer, External Event(24V Digital Input)

Data Transfer

Data to the PC through FIFO memory,

I/O command, Interrupt at EOC(End Of Conversion) and

EOS(End Of Sequence), DMA Transfer at EOC

Interrupts

End Of Conversion, Timer Overrun, End Of Sequence

Analog Output

Number of Channels

4 or 8

Resolution

14-bit resolution

Isolation

500V through Optical Couplers

Output Range

0-10V, ±10V switchable throgh Software

Setup Time at 2 ㏀, 1000 pF

30 ㎲

Overvoltage Protection

± 12V

Max. Output Current/Load

± 5 mA / 500 pF, 2 ㏀

Short-Circuit Current

± 25 mA

Output Voltage after Reset

0V

Digital I/O

Number of I/O Channels

4 Inputs, 4 Outputs, 24V, Opto-Isolated

Isolation

1000V through Optical Couplers

Input Current at 24V

3 mA typ.

Input Range

0-30V

Output Range

5-30V

Max. Switching Current

5 mA typ.

Noise Immunity

Test Level

- ESD: 4kV

- Field: 10V/m

- Burst: 4kV

- Conducted radio interferences: 10V

Physical & Environmental Conditions

Dimensions

3U/4TE

System Bus

PCI 32-bit acc. to CompactPCI specification 2.1

Space Required

1 PCI slot for Analog I/O,

1 slot opening for Digtal I/O with FB3001

Operating Voltage

+5V, ±5%

Current Consumption

from 997mA to 1030mA typ. depending on the board

Front Connector

37-pin SUB-D male connector

Additional Connector

16-pin male connector for connecting the Digital I/O

Temperature Range

0 to 60 ℃(with forced cooling)

MTBF

75867 Hours at 45℃

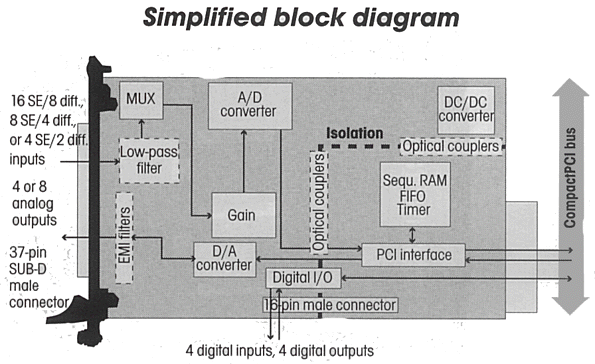

CPCI-3120 Block Diagram

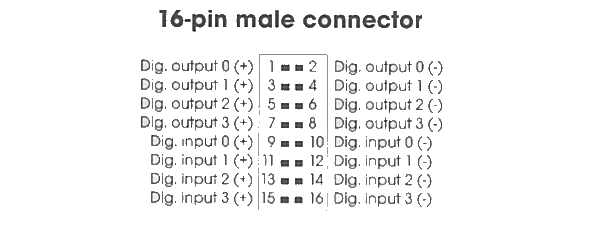

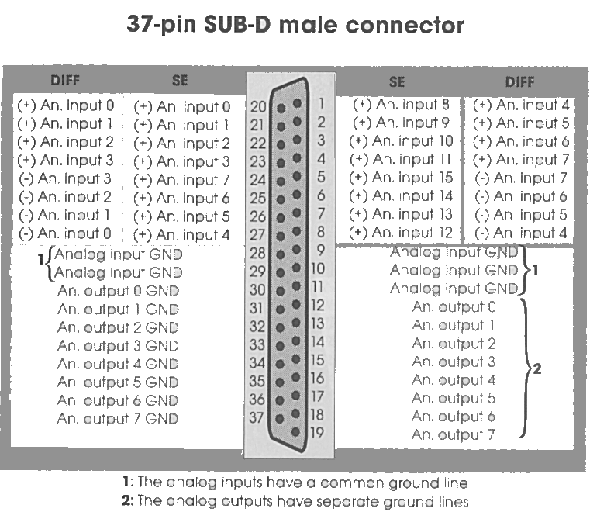

CPCI-3120 Connector

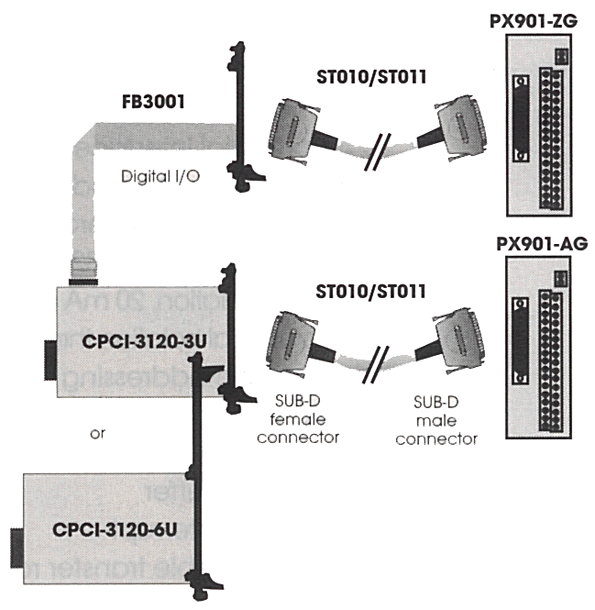

CPCI-3120 터미널 보드 연결도
