APCI-3501 Isolated Analog Output Board

하드웨어 특징

PCI Bus 인터페이스

Analog Output Channels

4 or 8 Output Channels

Optical Isolation 500V

Setting Time 30㎲ typ.

14-bit Resolution(13-bit for 0-10V)

Output Volatge : ±10V, 0-10V(Software)

Output Voltage after Reset : 0V

Each Output has its own GND Line

(without Optical Isolation)

Driver Capacity : 5mA/500pF

Short-Circuit Protection, EMI Filters

Noise Neutralization of the PC Supply

Watchdog for Resetting the Analog Output

Channels(4 Different Time units : ㎲, ms,

s, min) or as 12-bit Timer(with Interrupt

possibility) when the Watchdog Function

is not necessary

Digital I/O

2 Isolated Input Channels, 24V

2 Isolated Output Channels, 24V

지원 소프트웨어

Real Time Drivers :

- Windows XP/2000/NT/98(ADDIPACK)

LabVIEW 5.01

Samples programs :

- Microsoft VC++ 5.0

- Borland C++ 5.01

- Visual Basic 5.0

- Delphi 4

On request :

- LabWindows/CVI 5.01

In Preparaion :

- Driver for Linux kernel version 2.4.2

ADDIPACK Functions

- Analog Output

- Digital Input

- DIgital Output

- Interrupt

- Watchdog

CE Certification

EN 50082-2, EN 55011, EN 55022

응용 분야

Industrial Process Control

Industrial Measurement & Monitoring

Control of Chemical Processes

Factory Automation

Laboratory Equipment

Programmable Voltage Source

Instrumentation

모 델 번 호

비 고

APCI-3501-4

4 Analog Voltage Outputs, 4 DI/O

APCI-3501-8

8 Analog Voltage Outputs, 4 DI/O

Accessories

PX 901-A

Screw Terminal Board

PX 901-AG

Screw Terminal Board for DIN-rail

PX 901-ZG

Screw Terminal Board for DIN-rail

ST010/ST011

Standard Shielded, Twisted pairs Round 케이블, 2m/5m

FB3000

Ribbon Cable for Digital I/O

APCI-3501 하드웨어 사양

Parameter

Descriptions

Analog Output

Number of Channels

4 or 8

Optical Isolation

500V through Optical Couplers

Resolution

14-bit resolution, 12-bit Accuracy

Monotony

12-bit

Output Range

0-10V, ±10V Switchable through Software

Settling Time at 2 ㏀ & 1000pF

30 ㎲ typ.

Overvoltage Protection

± 12V

Max. Output Current/Load

± 5 mA / 500 pF, 2 ㏀

Short-Circuit Current

± 25 mA

Output Voltage after Reset

0V

Watchdog

Software Programmable

4 different Watchdog times(㎲, ms, s, min)

Digital I/O

Number of Channels

2 Inputs, 2 Outputs, 24V

Optical Isolation

500 V through Optical Couplers
from the PC to the Peripheral

Input Current at 24V

3mA typ.

Input Voltage Range

0-30V
Logic "0" : 0-5V
Logic "1" : 10-30V

Output Voltage Range

5-30V

Max. Switch Current

5mA typ.

Output Type

Open Collector

Noise Immunity

Test Level

- ESD: 4kV

- Field: 10V/m

- Burst: 4kV

- Conducted radio interferences: 10V

Physical & Environmental Conditions

Dimensions

175 x 99 mm

System Bus

PCI 32-bit 5V acc. to Specification(PCISIG)

Space Required

1 PCI slot for the Analog Output,

1 slot opening for the Digtal I/O with FB3000

Operating Voltage

+5V, ±5% from the PC

Current Consumption

540mA ±10% typ.

Front Connector

37-pin SUB-D male connector

Additional Connector

16-pin connector for ribbon cable

for connecting the Digital I/O

Temperature Range

15 to 60 ℃(with forced cooling)

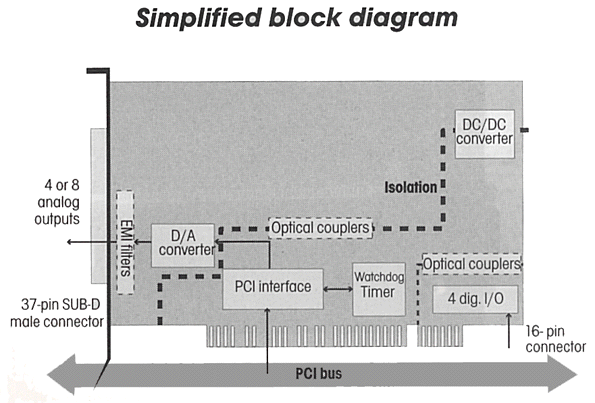

APCI-3501 보드 Block Diagram

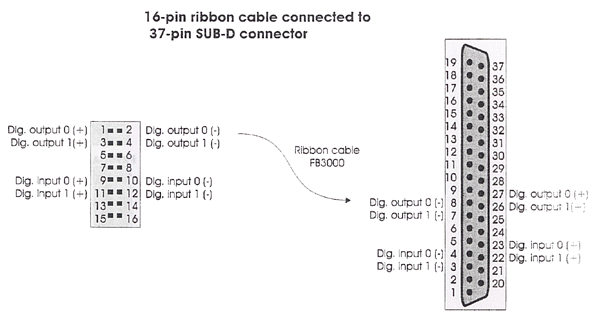

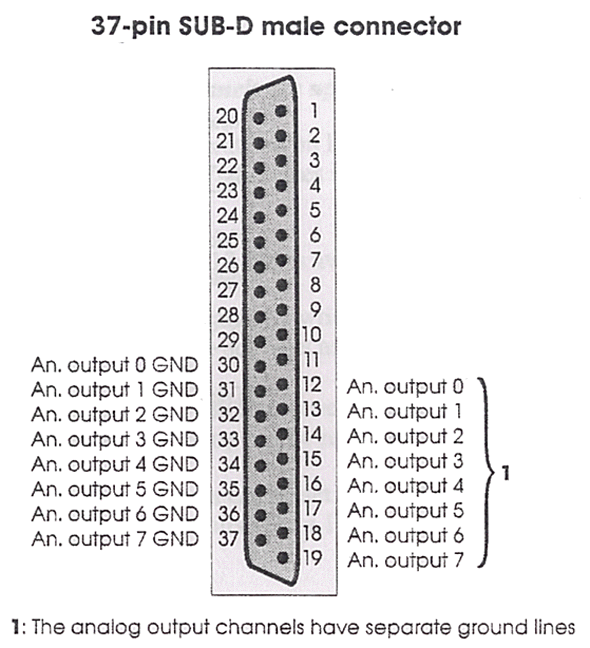

APCI-3501 Connector

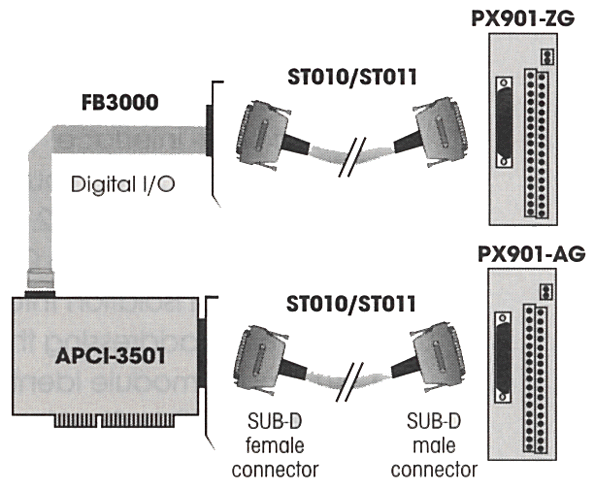

APCI-3501 터미널 보드 연결도
