APCI-3200 ¿Âµµ ÃøÁ¤¿ë Data Acquisition Board





Çϵå¿þ¾î Ư¡

square02_darkbluegreen.gif PCI Bus ÀÎÅÍÆäÀ̽º(32-Bit Data Bus)

square02_darkbluegreen.gif 18-bit Resolution, 16-bit Accuracy

square02_darkbluegreen.gif Each Channel can be configured either

  for Thermocouples/RTD or as an Analog

  Voltage Input Channel

  - 16 Channels Thermocouple Types

     J, K, T, E, R, S, B, N

  - or 8 Diffential RTD Input Channel(Pt100)

  - 16SE/8Diff. Analog Voltage Input

     Channels, ±2.5V

square02_darkbluegreen.gif Cold Junction Compensation

  ( On separate Terminal Board PX3200)

square02_darkbluegreen.gif Gain and Offset Calibration

square02_darkbluegreen.gif Linearisation through Software for the TC

  types J, K, T, E, R, S, B, N and RTDs

square02_darkbluegreen.gif Programmable Gain

square02_darkbluegreen.gif 16-bit Accuracy with sample rate

   20, 40, 80 or 160Hz

square02_darkbluegreen.gif 4 Digital Input Channels, 24V and 3 Digital

  Output Channels, Open collector, Isolated

square02_darkbluegreen.gif Base Address and IRQ set through BIOS

Safety

square02_darkbluegreen.gif 1000V Optical Isolation

square02_darkbluegreen.gif Protection against Overvoltage(±30V)

  High-Frequency EMI

square02_darkbluegreen.gif Diagnostic Functions : Short-Circuit and

  Line Break detection depending on the

  Type of Sensor used.



Áö¿ø ¼ÒÇÁÆ®¿þ¾î

square02_darkbluegreen.gif Real Time Drivers for :

  - Windows XP/2000/NT/98

  - DIAdem 6

square02_darkbluegreen.gif Samples programs :

  - Microsoft VC++ 5.0

  - Borland C++ 5.01

  - Visual Basic 5.0

  - Delphi 4.0

square02_darkbluegreen.gif On request :

  - LabVIEW 5.01

  - LabWindows/CVI

square02_darkbluegreen.gif ADDIPACK Functions :

  - Interrupt

  - Analog Input

  - Temperature

  - Resistance

  - Digital Input

  - Digital Output

 square02_darkbluegreen.gif Terminal Board PX3200 with cable

    ST3200 and Cold Junction Compensation

    Graphical Display of Measured Data

    with ADDIMON Program



CE Certification

square02_darkbluegreen.gif EN 50082-2, EN 55011, EN 55022









¸ð µ¨ ¹ø È£

ºñ       °í

APCI-3200-16

16 Thermocouples or 8 RTDs or 16SE/8Diff. Voltage Input Channels

APCI-3200-8

8 Thermocouples or 4 RTSs or 8SE/4Diff. Voltage Input Channels

APCI-3200-4

4 Thermocouple or 2 RTDs or 4SE/2Diff. Voltage Input Channels

Accessories

PX 3200

4~16 ä³Î Terminal Board( CJC ), DIN-rail

ST3200

APCI-3200 º¸µå & PX 3200 Å͹̳Πº¸µå ¿¬°á¿ë ÄÉÀ̺í, 2m

FB3000

Digital I/O ¿ë ¸®º» ÄÉÀ̺í

ST010/ST011

Digital I/O ¿ë Shielded Round ÄÉÀ̺í, 2m/5m( FB3000 & PX901-ZG ¿¬°á¿ë)

PX901-ZG

Digital I/O Å͹̳Πº¸µå, DIN-Rail



Model No.

Max. ä³Î¼ö/Description

Thermocouple

2-wire RTD

3-wire RTD

4-wire RTD

APCI-3200-4

4

2

1

2

APCI-3200-8

8

4

2

4

APCI-3200-16

16

8

4

8



APCI-3200 Çϵå¿þ¾î »ç¾ç

Parameter

Descriptions

Analog Input

Number of Channels







- 16 x Thermocouples or

- 8 x RTD with 2-wire or 4-wire connection or

- 4 x RTD with 3-wire connection or

- 16SE/8Diff. inputs, ±2.5V

Accuracy/Resolution

16-bit/18-bit

Gain Amplifier

1, 2, 4, 8, 16, 32, 64, 128

Conversion Start/Trigger

Software or External Trigger

Digital I/O

Number of Channels



4 Digital Inputs 24V

3 Digital Outputs, 24V, 125mA Open Collector

Logic "0" level

0-10V

Logic "1" level

16-30V

Optical Isolation

1000V through Optical Couplers for Analog and Digital

Noise Immunity

Test Level







- ESD: 4kV

- Field: 10V/m

- Burst: 4kV

- Conducted radio interferences: 3V

Physical & Environmental Conditions

Dimensions

131 x 99 mm

System Bus

PCI 32-bit 5V acc. to specification 2.1(PCISIG)

Space Required

1 PCI slot ans 1 slot opening for Digital I/O

Operating Voltage

+5V, ±5% from the PC

Current Consumption

from 550 to 600mA depending on the board version

Front Connector

50-pin SUB-D male connector

Additional Connector

16-pin male connector for connecting the Digital I/O

via a ribbon cable with a 37-pin SUB-D male connector

Temperature Range

0 to 60 ¡É(with forced cooling)



¿Âµµ ÃøÁ¤ Accuracy

Thermocouples

Type

Range

Accuracy(+/-)

Type J





-200.0¡É

0.0¡É

+600.0¡É

-0.1¡É

+599.9¡É

+1200.0¡É

±0.6¡É

±0.2¡É

±0.6¡É

Type T



-200.0¡É

-79.9¡É

-80.0¡É

+400.0¡É

±0.7¡É

±0.3¡É

Type K





-200.0¡É

0.0¡É

+1000.0¡É

-0.1¡É

+999.9¡É

+1300.0¡É

±0.8¡É

±0.4¡É

±0.6¡É

Type E

-200.0¡É

+1000.0¡É

±0.5¡É

Type N





-200.0¡É

0.0¡É

+800.0¡É

-0.1¡É

+799.9¡É

+1300.0¡É

±1.0¡É

±0.2¡É

±0.5¡É

Type S



0.0¡É

+400.0¡É

+399.9¡É

+1768.0¡É

±1.6¡É

±0.7¡É

Type R



0.0¡É

+400.0¡É

+399.9¡É

+1768.0¡É

±1.6¡É

±0.6¡É

Type B



+400.0¡É

+800.0¡É

+799.9¡É

+1820.0¡É

±2.0¡É

±1.0¡É

Reference Junction Temperature

Type

Range

Accuracy(+/-)

Pt1000



0¡É



60¡É



±(0.30¡É+0.0050 x |T|)

 ( T : Temperature in ¡É )

Type and Precision of the RTD

Type

Range

Accuracy(+/-)

Pt100

-200.0¡É

+850.0¡É

±0.4¡É

Pt200

-200.0¡É

+850.0¡É

±0.4¡É

Pt500

-200.0¡É

+850.0¡É

±0.3¡É

Pt1000



-200.0¡É

+500.0¡É

+499.9¡É

+850.0¡É

±0.2¡É

±1.0¡É

Ni100

-60.0¡É

+250.0¡É

±0.3¡É

Type and Accuracy of the resistances

Type

Range

Accuracy(+/-)

Resistance







10.0§Ù

400.0§Ù

1000.0§Ù

 2000.0§Ù

399.9§Ù

 999.9§Ù

 1999.9§Ù

 4000.0§Ù

±0.2§Ù

±0.3§Ù

±0.7§Ù

±4.0§Ù



Sensor Short-Circuit/Line Break

Type

Short-Circuit

Line Break

Thermocouple(SE)

Detection

No Detection

Resistancd Thermometer(Diff.)

Detection

Detection

Potentiometer(Diff.)

Detection

Detection

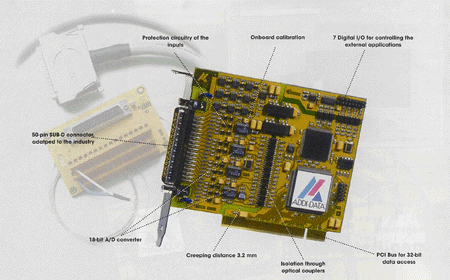

APCI-3200 Çϵå¿þ¾î »çÁø

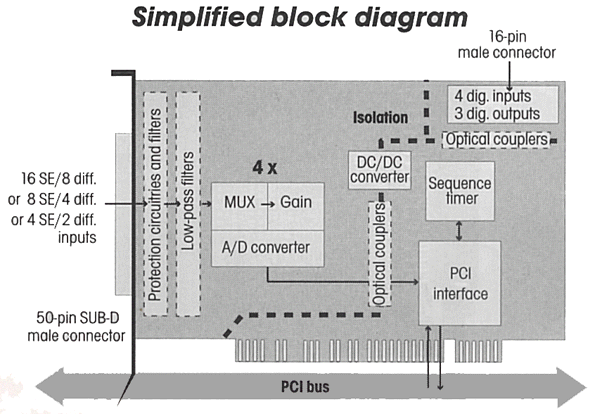

APCI-3200 º¸µå Block Diagram

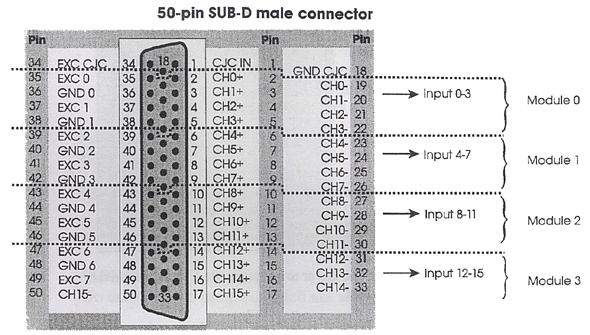

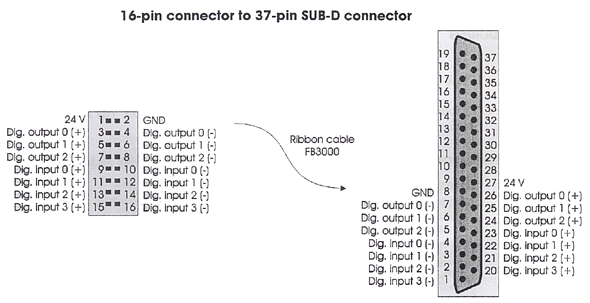

APCI-3200 Connector

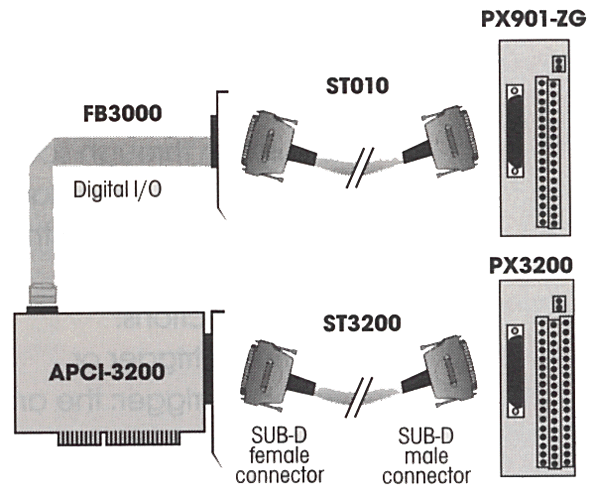

APCI-3200 Å͹̳Πº¸µå ¿¬°áµµ
