APCI-3001 Isolated, Analog Input Board

하드웨어 특징

PCI Bus 인터페이스

Analog Input Channels

16SE/8Diff. Input Channels, or 8SE/4Diff.

Input Channels or 4SE Input Channels

12-bit Resolution

Data Transfer Rate : 100kHz

Input Voltage : ±10V, 0-10V, 0-5V, ±5V,

0-2V, ±2V, 0-1V, ±1V, 0-20mA(Option)

Software programmable for each Channel

Gain PGA x1, x2, x5, x10 Software

programmable for each Channel

PCI DMA for High-Speed Analog Data

Transfer without CPU Intervention

3 Timers : Timer 0 and Timer 1 only for

Analog Acquisition, Timer 2 as Cyclic

Time-Counter

Onboard FIFO buffering

Analog Acquisition

Automatic Analog Acquisition through

Cyclic-Timer Control

Acquisition Triggered through Software,

Timer, External Event

Trigger Functions

- Software Trigger or

- External Trigger : The Analog Acquisition

(Single or Scan) is started through a

Signal Switching from 0-24V on Digital

Input Channel 0.

Interrupt : End of Single Channel, End of

MultiChannel, End of Scan List

Digital I/O

4 Isolated Input Channels, 24V

4 Isolated Output Channels, 24V

Safery Features

Optical Isolation 500V min.

Protection against High-Frequency EMI

Input Filter : 160kHz

Noise Neutralization of the PC Supply

지원 소프트웨어

Standard Drivers :

- Windows XP/2000/NT/98/95, MS-DOS

Real Time Drivers :

- Windows 2000/NT/98/95

LabVIEW 5.01

Samples programs :

- Microsoft VC++ 5.0/Microsoft C 6.0

- Borland C++ 5.01/Borland C 3.1

- Visual Basic 5.0

- Delphi 4

- Turbo Pascal 7.0

On request :

- LabWindows/CVI 5.01

- Diadem 6

In Preparaion :

- Driver for Linux kernel version 2.4.2

CE Certification

EN 50082-2, EN 55011, EN 55022

응용 분야

Industrial Process Control

Industrial Measurement & Monitoring

Multichannel Data Acquisition

Control of Chemical Processes

Factory Automation

Acquisition of Sensor Data

Labor Instrumentation

Current Measurement

Instrumentation

모 델 번 호

비 고

APCI-3001-4

4 SE Analog Inputs, 8 Digital I/O, 24V

APCI-3001-8

8 SE/4 DIFF Analog Inputs, 8 Digital I/O, 24V

APCI-3001-16

16 SE/8 DIFF Analog Inputs, 8 Digital I/O, 24V

Options

Option SF

Filter for 1 Single-ended Channels

Option DF

Precision Filter for 1 Differential Channels

Option SC

Current Inputs 1 Single-ended Channels, 0(4)-20mA

Option DC

Current Inputs 1 Differential Channels, 0(4)-20mA

Accessories

PX 901-A

Screw Terminals Board for Analog

PX 901-AG

Screw Terminals Board for DIN-rail for Analog

PX901-ZG

Screw Terminals Board for DIN-rail for Digital I/O

ST010/ST011

Standard round cable, Shielded, Twisted pairs, 2m/5m

FB3000

Ribbon Cable for Digital I/O

APCI-3001 하드웨어 사양

Parameter

Descriptions

Analog Input

Number of Channels

16 Single-ended/8 Differential
or 8 Single-ended/4 Differential or 4 Single-Ended

Resolution

12-bit

Optical Isolation

500VDC through Optical Couplers

from the PC to the peripheral

Input Range

Software programmable for Each Channel

0-10V, ±10V, 0-5V, ±5V, 0-2V, ±2V, 0-1V, ±1V

0-20mA Optional

Max. Sample Rate

100 kHz

Gain

Software programmable( x1, x2, x5, x10 )

Common Mode Rejection

DC at 10Hz, 90 dB minimum

Integral non-Linearity(INL)

±1 LSB

Differential non-Linearity(DNL)

±1/2 LSB

Input Impedance

10¹²Ω // 10nF Single-Ended

10¹²Ω // 20nF Differential against GND

Band Width(-3dB)

Limited to 159kHz with Low-Pass Filter

Trigger

through Software, Timer, External Event(24V Digital Input)

Data Transfer

Data to the PC through FIFO memory,

I/O command, Interrupt at EOC(End Of Conversion) and

EOS(End Of Scan), DMA Transfer at EOC

Interrupts

End Of Conversion, Timer Overrun, End Of Scan

Timer

Timer 0

Timer 1

Timer 2

0.5㎲; Smallest Programmable Value; 10㎲

50㎲; Smallest Programmable Value; 100㎲
50㎲; Smallest Programmable Value; 100㎲

Digital I/O

Number of Channels

4 Inputs and 4 Outputs, 24V

Optical Isolation

500VDC through Optical Couplers

from the PC to the peripheral

Input Voltage Range

0-30V
- Logic "0" : 0~5V

- Logic "1" : 10-30V

Input Current at 24V

3mA typ.

Output Range

5-30V

Max. Switch Current

5mA typ.

Type

Open Collector

Noise Immunity

Test Level

- ESD: 4kV

- Field: 10V/m

- Burst: 2kV

- Conducted radio interferences: 10V

Physical & Environmental Conditions

Dimensions

175 x 99 mm

System Bus

PCI 32-bit 5V acc. to specification(PCISIG)

Space Required

1 slot for Analog Input, 1 slot opening for Digital I/O

Operating Voltage

+5V, ±5% from the PC

Current Consumption

670mA typ.

Front Connector

37-pin SUB-D male connector

Additional Connector

16-pin male connector for ribbon cable for

connecting the Digital I/O Channels

Temperature Range

0 to 60 ℃(with forced cooling)

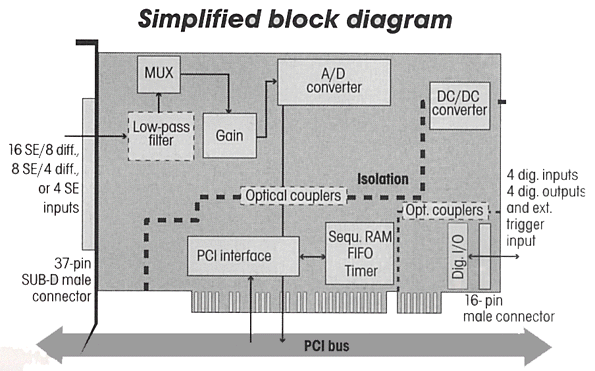

APCI-3001 보드 Block Diagram

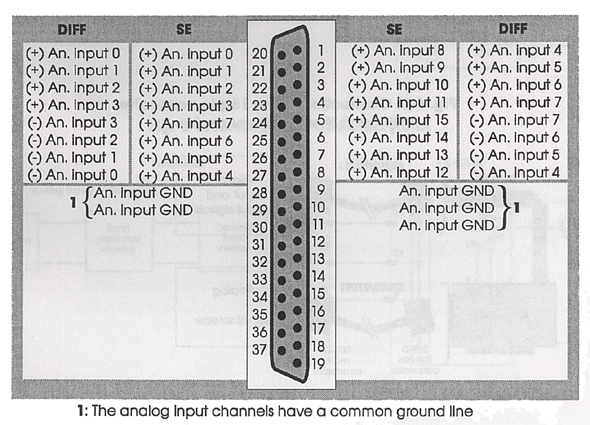

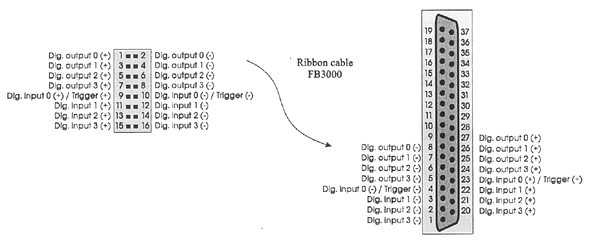

APCI-3001 Connector

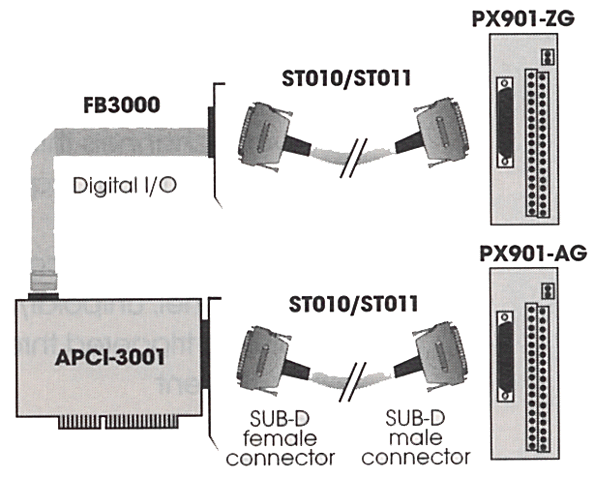

APCI-3001 터미널 보드 연결도
