APCI-2200 Relay Output & Digital Input Board





Çϵå¿þ¾î Ư¡

square02_darkbluegreen.gif PCI Bus ÀÎÅÍÆäÀ̽º



Relays

square02_darkbluegreen.gif 8 or 16 Electromechanical Relays with

  Change-over Contacts

square02_darkbluegreen.gif Max. Switching Voltage for the Relays

  60VDC, 48VAC

square02_darkbluegreen.gif Max. Switching Capacity : 30W, Max. 1A

square02_darkbluegreen.gif Short Response Time

square02_darkbluegreen.gif Watchdog : Input/Switch OFF through

  Software



Digital Input Channels : Option

square02_darkbluegreen.gif 8 Isolated Input Channels

square02_darkbluegreen.gif Input Voltage : 12-24V(DC)



Safery Features

square02_darkbluegreen.gif EMC Tested

square02_darkbluegreen.gif Watchdog Activity can be Read

square02_darkbluegreen.gif Optical Isolation of the Relays

Áö¿ø ¼ÒÇÁÆ®¿þ¾î

square02_darkbluegreen.gif Real Time Drivers :

  - Windows XP/2000/NT/98(ADDIPACK)

square02_darkbluegreen.gif LabVIEW 5.01

square02_darkbluegreen.gif Samples programs :

  - Microsoft VC++ 5.0

  - Borland C++ 5.01

  - Visual Basic 5.0

  - Delphi 4.0

square02_darkbluegreen.gif On request :

  - LabWindows/CVI 5.01

square02_darkbluegreen.gif In Preparaion :

  - Driver for Linux kernel version 2.4.2

square02_darkbluegreen.gif ADDIPACK Functions :

  - Digital Input

  - Digital Output

  - Watchdog



CE Certification

square02_darkbluegreen.gif EN 61326



ÀÀ¿ë ºÐ¾ß

square02_darkbluegreen.gif Industrial Digital I/O Controlling

square02_darkbluegreen.gif Signal Switching

square02_darkbluegreen.gif Interface to Electromechanical Relay

square02_darkbluegreen.gif Automatic Test Equipment

square02_darkbluegreen.gif ON/OFF Monitoring of Motors, Lights ...

square02_darkbluegreen.gif Alarm Monitoring

square02_darkbluegreen.gif Machine Interfacing, ...

















¸ð µ¨ ¹ø È£

ºñ       °í

APCI-2200-16-8

16 Relay Outputs, 8 Digital Input Channels

APCI-2200-8-8

8 Relay Outputs, 8 Digital Input Channels

APCI- 2200-16

16 Relay Outputs

APCI- 2200-8

8 Relay Outputs

Accessories

PX8000

Screw Terminal Board, 50-pin for DIN-rail

ST370-16

Standard Shielded, Twisted pairs Round ÄÉÀ̺í, 2m(50-pin)

ST010

Standard Shielded, Twisted pairs Round ÄÉÀ̺í, 2m(37-pin)

FB2200-3

40-pin Ribbon Cable

PX901-ZG

Screw Terminal Board for DIN-rail



APCI-2200 Çϵå¿þ¾î »ç¾ç

Parameter

Descriptions

Relay Output

Type of Contacts

8/16 Change-Over Contacts

Max. Switching Volatge

60VDC, 48VAC

Max. Switching Current

1A

Max. Switching Capacity

30W

Contact Resistance

< 100 m§Ù

Contact Material

Ag + Au Plated

Responding Time

Max. 5 ms, typ. 2.5 ms

Release Time

Max. 5 ms, typ. 0.9 ms

Mechanical Life

5 x 106  Operations

Electrical Life

105  Operations Loaded with Rated Load

Digital Input

Number of Channels

8

Isolation

Through Optical Couplers, 1000V

Nominal Voltage

12-24V (AC+DC)

Norminal Input Current

At 12 V : 6mA

Signal Delay

70 §Á ( at 24V )

Maximum Input Frequency

5 kHz ( at 24V )

Safety

Test Voltage

1000V

Watchdog



Noise Immunity

Test Level







- ESD: 4kV

- Field: 10V/m

- Burst: 4kV

- Conducted radio interferences: 10V

Physical & Environmental Conditions

Dimensions approx.

131 x 99 mm

System Bus

PCI 32-bit 5V acc. to specification 2.2(PCISIG)

Space Required

1 PCI slot

Operating Voltage

+5V, ±5% from the PC

Current Consumption

550mA ±10% typ.(APCI-2200-16-8)

Front Connector

50-pin SUB-D male connector

Additional Connector









16-pin male connector.

Connection with Ribbon Cable FB2200-3

Connects the Board to a Bracket with a 37-pin

SUB-D male connector.

For connecting the PX901-ZG

Temperature Range

0 to 60 ¡É(with forced cooling)

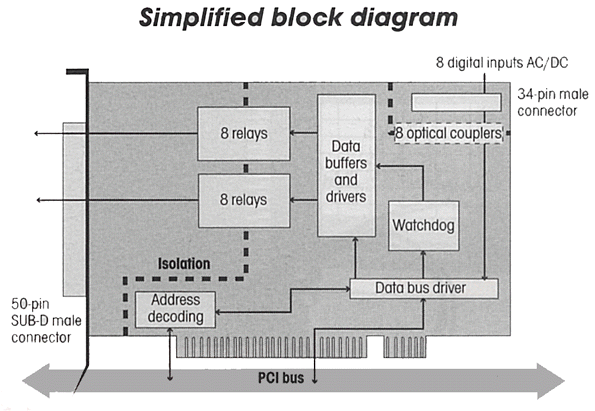

APCI-2200 º¸µå Block Diagram



Relay Function Principle

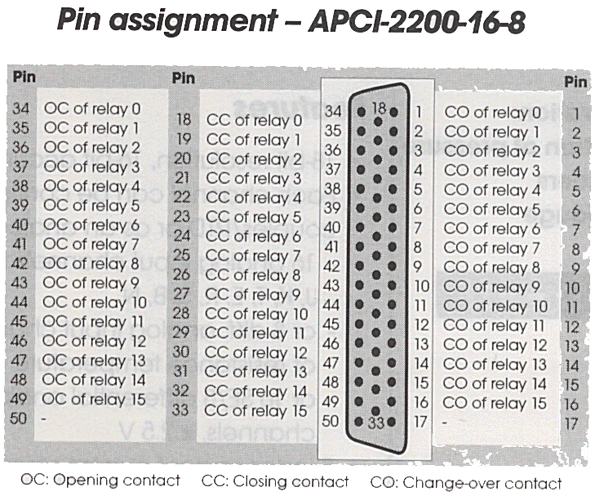

APCI-2200 Connector

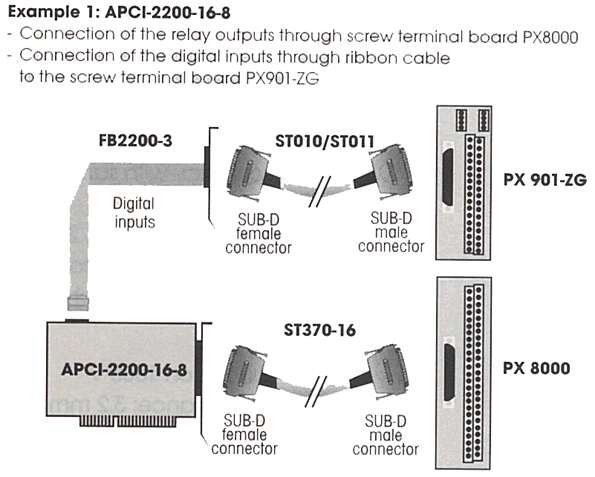

APCI-2200 Å͹̳Πº¸µå ¿¬°áµµ
