APCI-1016/APCI-1032  Isolated Digital Input Board





Çϵå¿þ¾î Ư¡

square02_darkbluegreen.gif PCI Bus ÀÎÅÍÆäÀ̽º(32-Bit Data Bus)

square02_darkbluegreen.gif 16 Isolated Digital Input, 24V(APCI-1016)

square02_darkbluegreen.gif 32 Isolated Digital Input, 24V(APCI-1032)   Include 16 Interruptible Inputs

square02_darkbluegreen.gif 1000V Optical Isolation

square02_darkbluegreen.gif Voltage Reversal Protection

square02_darkbluegreen.gif All Inputs are Filtered

square02_darkbluegreen.gif Protection against Fast Transuents(Burst),

  Overvoltage, Electrostatic Discharge and

  High-Frequency EMI

square02_darkbluegreen.gif Additional Noise Suppression on the

  Interrupt Lines(APCI-1032)

Áö¿ø ¼ÒÇÁÆ®¿þ¾î

square02_darkbluegreen.gif Real Time Drivers for :

  - Windows XP/2000/NT/98(ADDIPACK)

square02_darkbluegreen.gif LabVIEW 5.01

square02_darkbluegreen.gif Samples programs :

  - Microsoft VC++ 5.0

  - Borland C++ 5.01

  - Visual Basic 5.0

  - Delphi 4.0

square02_darkbluegreen.gif On request :

  - LabWindows/CVI

square02_darkbluegreen.gif In Preparaion :

  - Driver for Linux kernel version 2.4.2

square02_darkbluegreen.gif ADDIPACK Functions :

  - Digital Input

  - Interrupt (APCI-1032)



CE Certification

square02_darkbluegreen.gif APCI-1016 : EN 50082-2, EN 55011,

  EN 55022

square02_darkbluegreen.gif APCI-1032 : EN 61326



ÀÀ¿ë ºÐ¾ß

square02_darkbluegreen.gif Industrial I/O Control

square02_darkbluegreen.gif Signal Switching

square02_darkbluegreen.gif Interface to Electromechanical Relay

square02_darkbluegreen.gif Automatic Test Equipment

square02_darkbluegreen.gif ON/OFF Monitoring of Motors, Lights...

square02_darkbluegreen.gif Machine Interfacing

square02_darkbluegreen.gif ...



¸ð µ¨ ¹ø È£

ºñ       °í

APCI-1016

Digital Input Board, 16 Isolated Channels, 24V (PCI Bus Interface)

APCI-1032

Digital Input Board, 32 Isolated Channels, 24V (PCI Bus Interface)

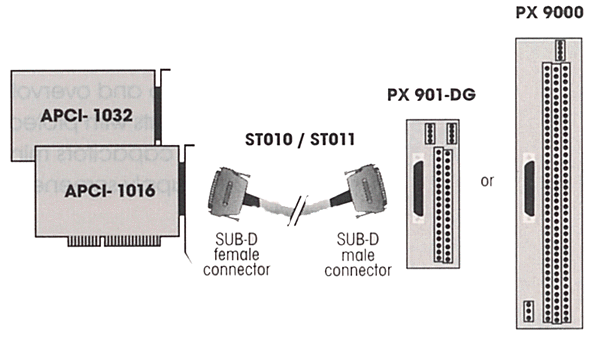

Accessories

PX901-D

Screw Terminals Board, LED Status Display

PX901-DG

Screw Terminals Board, LED Status Display, DIN-rail

PX9000

3-row Screw Terminals Board, LED Status Display, DIN-rail

ST010/ST011

Standard Shielded, Twisted Pairs Round ÄÉÀ̺í, 2m/5m



APCI-1016/ APCI-1032 Çϵå¿þ¾î »ç¾ç

Parameter

Descriptions

Digital Input

Number of Channels



16 (APCI-1016)

32 (APCI-1032)

Optical Isolation



Through Optical Couplers, 1000V

from the PC to the Peripheral

Interruptible Inputs



16(Input Channel 0 to 15) from 32 Inputs Channles

of the APCI-1032

Interrupt Compare Logic

AND & OR mode, OR priority

Normal Voltage

24V External

Input Current at 24V

6mA typ.

Logic Input Level:

U nominal : 24V



UH Max. : 30V / Current 9mA typ.



UH Min. : 19V / Current 2mA typ.



UL Max. : 17V / Current 0.7mA typ.



UL Min. : 0V / Current 0mA typ.

Signal Delay( at 24V )

70 §Á

Maximum Input Frequency

5 kHz ( at 24V )

Noise Immunity

Test Level







- ESD: 4kV

- Field: 10V/m

- Burst: 4kV

- Conducted radio interferences: 10V

Physical & Environmental Conditions

Dimensions

131 x 99 mm( PCI short )

System Bus

PCI 32-bit 5V acc. to specification 2.1(PCISIG)

Space Required

1 PCI slot

Operating Voltage

+5V, ±5% from the PC

Max. Current Consumption



APCI-1032( +5V from the PC) 180mA ±15mA Typ.

APCI-1016( +5V from the PC) 190mA ±10% Typ.

Front Connector

37-pin SUB-D male connector

Temperature Range

0 to 60 ¡É(with forced cooling)

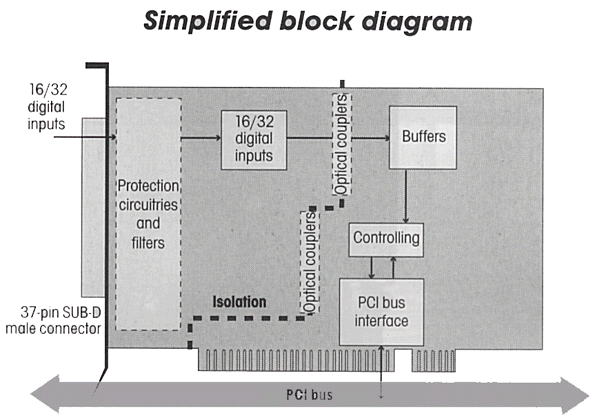

APCI-1016/1032 º¸µå Block Diagram



Protection Circuit for Input Channels



Connector

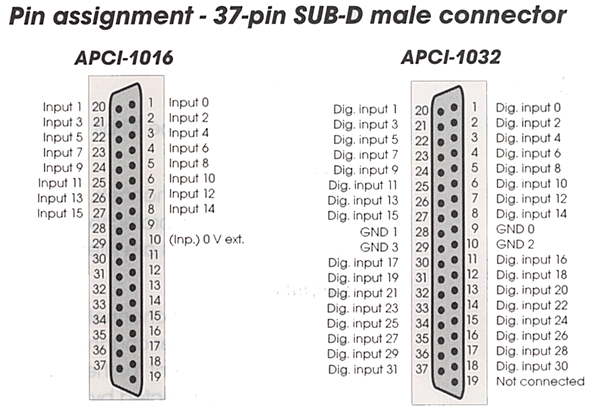

Å͹̳Πº¸µå ¿¬°áµµ
