APCI-035  Multifunction Watchdog Board





Çϵå¿þ¾î Ư¡

square02_darkbluegreen.gif PCI Bus ÀÎÅÍÆäÀ̽º(32-Bit Data Bus)

square02_darkbluegreen.gif 4 Watchdogs/Timers

square02_darkbluegreen.gif 1 Trigger channel/Gate Input (24V)

square02_darkbluegreen.gif Activation through Software

square02_darkbluegreen.gif Configuration through Software, Readable

square02_darkbluegreen.gif Can be Triggered through Software or

   Digital Input

square02_darkbluegreen.gif Time base for the Watchdog/Timer

   §Á, ms, s, min.

square02_darkbluegreen.gif Two completely seperated programmable

   Alarm levels :

   - Level 1 generates an Interrupt or

      Switches the Warning Relay

   - Level 2 Switches the Reset Relays.

square02_darkbluegreen.gif With the two-level Alarm, the operating

   system can be warned through an Interrupt

   that a hardware reset is going to take

   place. There is then enough time to close

   the active tasks.

square02_darkbluegreen.gif The alarm time can be read back at any

   time, so that the time remaining for

   further tasks can be established.

square02_darkbluegreen.gif Switching time of the reset relay : 2s



Defined State after Booting

square02_darkbluegreen.gif The watchdogs are switched off through

   the system reset

Diagnostic

square02_darkbluegreen.gif The status of the 4 watchdogs is Readable

square02_darkbluegreen.gif 1 Digital Input

   (Watchdog Trigger or Timer Gate)

square02_darkbluegreen.gif Watchdog 1 can switch 2 software

   controlled relays



Safely

square02_darkbluegreen.gif Optical Isolation 500V



Temperature Measurement

square02_darkbluegreen.gif 1Temperature onboard sensor

square02_darkbluegreen.gif Alarm function when a programmable

   limit value is exceeded



Áö¿ø ¼ÒÇÁÆ®¿þ¾î

square02_darkbluegreen.gif Real Time Drivers for :

  - Windows XP/2000/NT/98(ADDIPACK)

square02_darkbluegreen.gif LabVIEW 5.01

square02_darkbluegreen.gif LabWindows/CVI 5.01

square02_darkbluegreen.gif Samples programs :

  - Microsoft VC++ 5.0

  - Borland C++ 5.01

square02_darkbluegreen.gif On request :

  - Delphi 4.0

  - Visual Basic 5.0

square02_darkbluegreen.gif ADDIPACK Functions :

  - Watchdog

  - Interrupt

  - Timer

  - Temperature



CE Certification

square02_darkbluegreen.gif EN 50082-2, EN 55011, EN 55022



ÀÀ¿ë ºÐ¾ß

square02_darkbluegreen.gif Supervision of PC-controlled processes

square02_darkbluegreen.gif Time Measurement

square02_darkbluegreen.gif Timer-controlled software application

square02_darkbluegreen.gif Temperature Monitoring





¸ð µ¨ ¹ø È£

ºñ       °í

APCI-035

Isolated Watchdog Board with 4 Watchdogs/Timers



APCI-035 Çϵå¿þ¾î »ç¾ç

Parameter

Descriptions

Addressing

32-bits

Addressing Range

256 bytes

Interrupt

Through BIOS

Optical Isolation

500V (Between PC and Peripheral)

Watchdog/Timer

Watchdog Depth

8-bits

Switching Time of the reset relays

2 s

4 x programmable Watchdogs/Timers

Time selectable from 2 §Á to 255 min

Time Units

§Á, ms, s, min

Temperature Monitoring

Accuracy

± 2¡É

Measurement Range

-45¡É to +135¡É(Real range of application 0-60¡É)

Real Range of Application

0-60¡É(PC operation range)

Resolution

8-bit

Relay Data

Type of Contacts

2 Change-Over Contacts

Max. Switching Voltage

60 VDC, 48 VAC

Max. Switching Current

1A

Max. Switching Capacity

62.5 VA, 30W

Min. Permissible Load

1 mA / 5VDC

Nominal Load

1 A / 24 VDC

Contact Resistance

< 100 m§Ù

Contact Material

Ag + Au-plated

Responding Time

Max. 5 ms, typ. 2.5 ms

Release Time

Max. 5 ms, typ. 0.9 ms

Mechanical Life

5 x 106 Operations

Electrical Life at 24V

105 Operations

Test Voltage



1000VAC, 50/60Hz,  5s between coil and contacts

400VAC, 50/60Hz,  5s between the open contacts

Digital Input

Nominal Input Current at 24V

6 mA

Nominal Input Voltage

24 V

Switching Threshold

>16 V for Logic "1"

Noise Immunity

Test Level







- ESD: 4kV

- Field: 10V/m

- Burst: 4kV

- Conducted radio interferences: 10V

EMC Tested



Acc. to 89/336/EWG

EN 50082-2, EN 55011, EN 55022

Physical & Environmental Conditions

Dimensions

120 x 85 mm

System Bus

PCI 5V acc. to spec. PCI2.1

Space Required

1 PCI slot

Operating Voltage

+5V, ±5% from the PC

Current Consumption

240mA ±10%

Front Connector

9-pin SUB-D pin connector

Temperature Range

0 to 60 ¡É(with forced cooling)

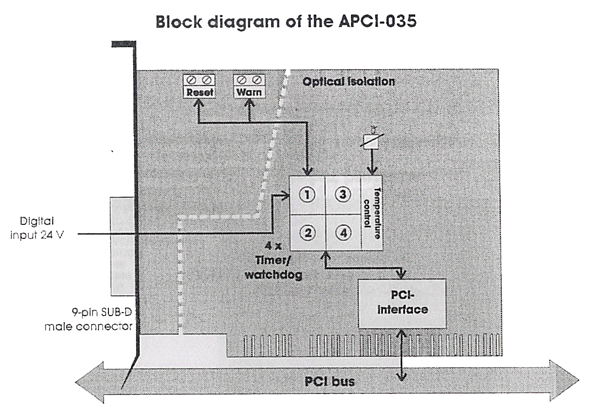

APCI-035 Block Diagram

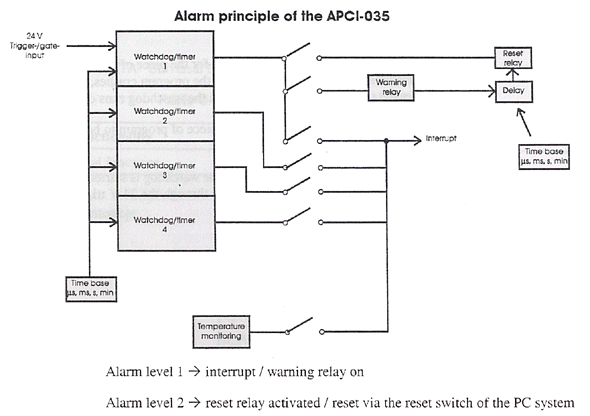

APCI-035 Alarm Principle

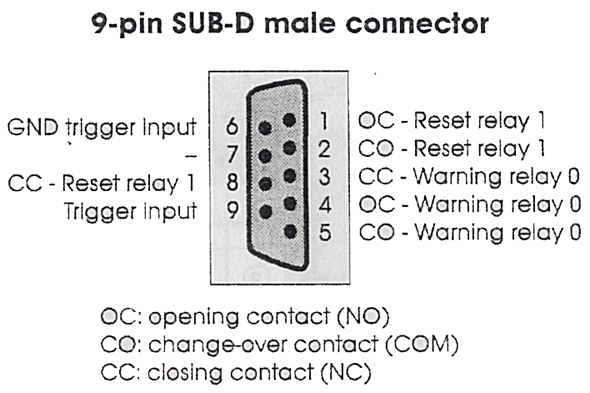

APCI-035 Connector
